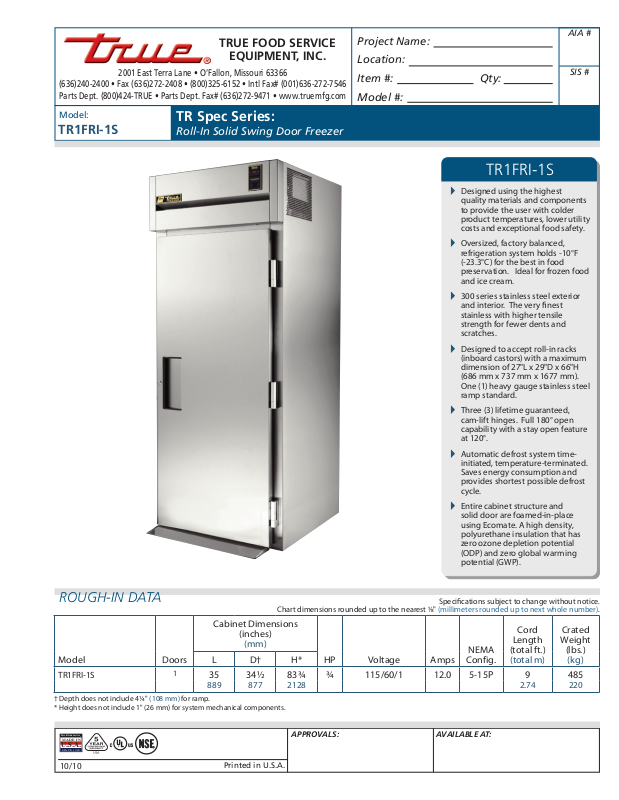

True TR1FRI-1S User Manual

TRUE FOOD SERVICE

T

RUE

R

EFRIGERAT ION

MADE IN

SINCE 1945

U.S.A.

®

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TR1FRI-1S

TR Spec Series:

Roll-In Solid Swing Door Freezer

TR1FRI-1S

Designed using the highest



quality materials and components
to provide the user with colder
product temperatures, lower utility
costs and exceptional food safety.

Oversized, factory balanced,



refrigeration system holds -10°F
(-23.3°C) for the best in food
preservation. Ideal for frozen food
and ice cream.

300 series stainless steel exterior



and interior. The very nest
stainless with higher tensile
strength for fewer dents and
scratches.

Designed to accept roll-in racks



(inboard castors) with a maximum
dimension of 27"L x 29"D x 66"H
(686 mm x 737 mm x 1677 mm).
One (1) heavy gauge stainless steel
ramp standard.

Three (3) lifetime guaranteed,



cam-lift hinges. Full 180° open
capability with a stay open feature
at 120°.

Automatic defrost system time-



initiated, temperature-terminated.
Saves energy consumption and
provides shortest possible defrost
cycle.

Entire cabinet structure and



solid door are foamed-in-place
using Ecomate. A high density,
polyurethane insulation that has
zero ozone depletion potential
(ODP) and zero global warming
potential (GWP).

Rough-In Data

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

Model Doors

TR1FRI-1S

† Depth does not include 4¼" (108 mm) for ramp.
* Height does not include 1" (26 mm) for system mechanical components.

10/10

1

35 34½ 83¾ ¾ 115/60/1 12.0 5-15P 9 485

889 877 2128 2.74 220

ApprovAls: AvAilAble At:

Printed in U.S.A.

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)L D† H*

Model:

TR1FRI-1S

TR Spec Series:

Roll-In Solid Swing Door Freezer

StanDaRD FeatuReS

DESIGN

True’s solid door roll-in’s are designed with

•

enduring quality that protects your long
term investment.
Designed using the highest quality

•

materials and components to provide the
user with colder product temperatures,
lower utility costs and exceptional food
safety.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) 404A refrigerant.
Extra large evaporator coil balanced with

•

higher horsepower compressor and large
condenser maintains -10°F (-23.3°C) cabinet
temperature. Ideal for both frozen foods
and ice cream.
Sealed, cast iron, self-lubricating evaporator

•

fan motor(s) and larger fan blades give
True roll-in’s a more ecient low velocity,
high volume airow design. This unique
design ensures faster temperature recovery
and shorter run times in the busiest of
foodservice environments.
Top mounted refrigeration system with

•

evaporator positioned out of food zone to
maximize capacity.
Automatic defrost system time-initiated,

•

temperature-terminated. Saves energy
consumption and provides shortest possible
defrost cycle.
Automatic evaporator fan motor delay

•

during defrost cycle.

CABINET CONSTRUCTION

Exterior - 300 series stainless steel door,

•

front, sides, back and bottom.
Interior- 300 series stainless steel liner and

•

oor.
Insulation - entire cabinet structure and

•

solid door are foamed-in-place using
Ecomate. A high density, polyurethane
insulation that has zero ozone depletion
potential (ODP) and zero global warming
potential (GWP).
One (1) heavy gauge stainless steel ramp.

•

Designed to accept roll-in racks (inboard

•

castors) with a maximum dimension of 27"L
x 29"D x 66"H (686 mm x 737 mm x 1677
mm).

DOOR

300 series stainless steel. Door opens within

•

cabinet dimension.
Door lock standard.

•

Lifetime guaranteed recessed door handle.

•

Door tted with 12" (305 mm) long recessed
handle that is foamed-in-place with a
sheet metal interlock to ensure permanent
attachment.
Three (3) lifetime guaranteed, cam-lift

•

hinges. Full 180° open capability with a stay
open feature at 120°.
Magnetic door gasket of one piece

•

construction, removable without tools for
ease of cleaning.
Wiper gaskets for postitive seal, reversible.

•

Door is eld reversible.

•

LIGHTING

Incandescent interior lighting, safety

•

shielded.

MODEL FEATURES

Exterior digital temperature display,

•

available with either °F or °C .
Evaporator epoxy coated to eliminate the

•

potential of corrosion.
Backguard improves airow.

•

Minimum wattage heater in cabinet frame.

•

Interior bumpers protect cabinet walls from

•

abuse caused by roll-in carts.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord and
plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

Metal door handle (factory installed). ❑
Electronic temperature control (factory ❑
installed).
Correctional facilities options. ❑
Remote cabinets (condensing unit supplied ❑
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical
service department for BTU information.
All remote units must be hard wired during
installation.

Plan VIew

One year warranty on all parts

WARRANTY

and labor and an additional 4
year warranty on compressor.

(U.S.A. only)

2001 East Terra Lane • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

TRUE FOOD SERVICE EQUIPMENT

KCL

Model Elevation Right Plan 3D Back

TR1FRI-1S TFQY51E TFQY64S TFQY51P TFQY643
