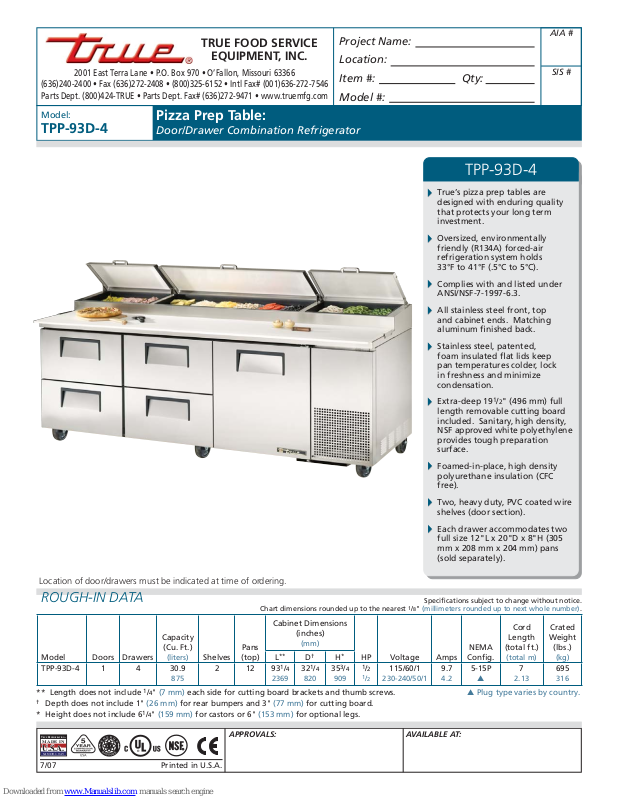

True TPP-93D-4 Specifications

TRUE FOOD SERVICE

.S.A.

EQUIPMENT, INC.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TPP-93D-4

Pizza Prep Table:

Door/Drawer Combination Refrigerator

TPP-93D-4

True’s pizza prep tables are
designed with enduring quality
that protects your long term
investment.

Oversized, environmentally
friendly (R134A) forced-air
refrigeration system holds
33°F to 41°F (.5°C to 5°C).

Complies with and listed under
ANSI/NSF-7-1997-6.3.

All stainless steel front, top
and cabinet ends. Matching
aluminum fi nished back.

Stainless steel, patented,
foam insulated fl at lids keep
pan temperatures colder, lock
in freshness and minimize
condensation.

Extra-deep 19
length removable cutting board
included. Sanitary, high density,
NSF approved white polyethylene
provides tough preparation
surface.

Foamed-in-place, high density
polyurethane insulation (CFC
free).

Two, heavy duty, PVC coated wire
shelves (door section).

Each drawer accommodates two
full size 12"L x 20"D x 8"H (305
mm x 208 mm x 204 mm) pans
(sold separately).

1

/2" (496 mm) full

Location of door/drawers must be indicated at time of ordering.

ROUGH-IN DATA

Capacity

(Cu. Ft.)

Model Doors Drawers
TPP-93D-4 1 4 30.9

** Length does not include 1/4" (7 mm) each side for cutting board brackets and thumb screws. ▲ Plug type varies by country.

†

Depth does not include 1" (26 mm) for rear bumpers and 3" (77 mm) for cutting board.

* Height does not include 61/4" (159 mm) for castors or 6" (153 mm) for optional legs.

T

RUE

R

EFRIGERATION

TM

MADE IN

U.S.A.

U.S.A.

SINCE 1945

7/07

®

Printed in U.S.A.

(liters) Shelves

875

R

Specifi cations subject to change without notice.

1

Chart dimensions rounded up to the nearest

/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

Pans
(top)

21293

**

L

1

2369

(mm)

†

D

/4

321/4

820

*

H

HP Voltage Amps

1

353/4

909

/2

1

/2

115/60/1

230-240/50/1

APPROVALS: AVAILABLE AT:

9.7

4.2

NEMA

Confi g.

5-15P

▲

Cord

Length

(total ft.)

(total m)

7

2.13

Crated

Weight

(lbs.)

(kg)

695

316

Model:

TPP-93D-4

Pizza Prep Table:

Door/Drawer Combination Refrigerator

STANDARD FEATURES

DESIGN

• True’s commitment to using the highest
quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, lower utility costs, exceptional
food safety and the best value in today’s food
service marketplace.

REFRIGERATION SYSTEM

• Factory engineered, self-contained capillary
tube system using environmentally friendly
(CFC free) R134A refrigerant.

• Oversized, factory balanced refrigeration
system with guided airfl ow to provide
uniform temperature in food pan rail and
cabinet interior.

• Forced-air design holds 33°F to 41°F
(.5°C to 5°C) product temperature in food
pans and cabinet interior. Complies with and
listed under ANSI/NSF-7-1997-6.3.

• Condensing unit accessed from behind
front removable panel, slides out for easy
maintenance.

CABINET CONSTRUCTION

• Exterior - stainless steel front, top and cabinet
ends. Matching aluminum fi nished back.

• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless fl oor with
coved corners.

• Insulation - entire cabinet structure, solid
door and drawer facings are foamed-in-place
using high density, CFC free, polyurethane
insulation.

• 5" (127 mm) diameter stem castors. 36" (915
mm) work surface height.

DOOR/DRAWERS

• Door and drawers have stainless steel exterior
with white aluminum liner to match cabinet
interior.

• Door swings within cabinet dimensions.

• Heavy duty stainless steel drawer slides and
rollers. Removable without tools for easy
cleaning.

• Each door and drawer fi tted with 12" (305
mm) long recessed handle that is foamed-in­place with a sheet metal interlock to ensure
permanent attachment.

• Magnetic door/drawer gaskets of one piece
construction, removable without tools for
ease of cleaning.

• Drawer assemblies can be located in any
section of the cabinet. Location of door/
drawers must be indicated at time of
ordering.

SHELVING

• Two (2) adjustable, heavy duty PVC coated
wire shelves 235/8"L x 28"D
(601 mm x 712 mm). Four (4) chrome plated
shelf clips included per shelf.

• Shelf support pilasters made of same material
as cabinet interior; shelves are adjustable on

1

/2" (13 mm) increments.

DRAWER PAN CAPACITY

• Each drawer accommodates (2) full size

12"L x 20"W x 8"D (305 mm x 508 mm x
204 mm) food pans (sold separately). Drawer

will support varying pan confi gurations with
pan dividers bars (drawer pans and divider
bars optional).

MODEL FEATURES

• Evaporator is epoxy coated to eliminate the
potential of corrosion.

• Extra-deep 191/2" (496 mm), full length
removable cutting board included.
Sanitary, high-density, NSF approved white
polyethylene provides tough preparation
surface.

• Stainless steel, patented, foam insulated fl at
lids keep pan temperatures colder, lock in
freshness and minimize condensation.

• Refrigerated pan rail comes standard with
twelve (

1

/3 size) 123/4"L x 61/4"D x 6"H (324
mm x 159 mm x 153 mm) NSF approved clear
polycarbonate insert pans.

• NSF-7 compliant for open food product.

ELECTRICAL

• Unit completely pre-wired at factory and
ready for fi nal connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord and
plug set included.

115/60/1
NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❒ 230 - 240V / 50 Hz.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/fl anged legs.
❒ 21/2" (64 mm) diameter castors.
❒ 3" (85 mm) diameter castors.
❒ 4" (102 mm) diameter castors.
❒ Garnish racks.
❒ Pizza prep service shelf.
❒ Single utility shelf.
❒ Double utility shelf.
❒ Half bun tray rack (door section only).
❒ 191/2" (496 mm) deep, 1/2" (13 mm) thick,

white polyethylene cutting board.

❒ 191/2" (496 mm) deep, 1/2" (13 mm),

composite cutting board.

❒ Pan dividers.
❒ Exterior round digital thermometer (factory

installed).

❒ Remote cabinets (condensing unit supplied

by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical service
department for BTU information.

PLAN VIEW

81/4"

(210 mm)

155/8"

(397 mm)

3515/16"

(913 mm)

63/16"

(158 mm)

1

/4"

(7 mm)
each side for
cutting board
brackets and
thumb screws

KCL

587/8"

(1496 mm)

133/4"

(350 mm)

Drawers

255/8"

(651 mm)

Door

259/32"

(643 mm)

1

/4"

(7 mm)

RIGHT VIEW

Model Elevation Right Plan 3D

TPP-93D-4 TFQY74E TFQY43S TFQY74P TFQY743

1"

(26 mm)

25/8"

(67 mm)

293/4"

(756 mm)

39/16"

(91 mm)

3511/16"

(907 mm)

4911/16"

(1263 mm)

355/32"

(893 mm)

321/4"

(820 mm)

PLAN VIEW

931/4"

(2369 mm)

417/8"

(1064 mm)

123/4"

(324 mm)

WITHOUT NOTICE

One year warranty on all parts

WARRANTY

and labor and an additional 4
year warranty on compressor.

(U.S.A. only)

ELEVATION

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE
