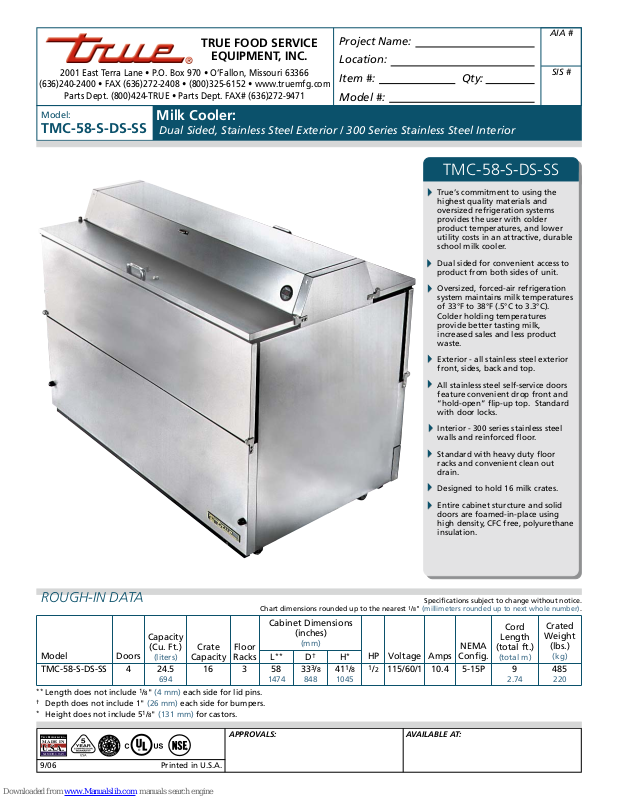

True TMC-58-S-DS-SS Specifications

TRUE FOOD SERVICE

.S.A.

EQUIPMENT, INC.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366

[phone] • FAX [phone] • [phone] • www.truemfg.com

Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TMC-58-S-DS-SS

Milk Cooler:

Dual Sided, Stainless Steel Exterior / 300 Series Stainless Steel Interior

TMC-58-S-DS-SS

True’s commitment to using the
highest quality materials and
oversized refrigeration systems
provides the user with colder
product temperatures, and lower
utility costs in an attractive, durable
school milk cooler.

Dual sided for convenient access to
product from both sides of unit.

Oversized, forced-air refrigeration
system maintains milk temperatures
of 33°F to 38°F (.5°C to 3.3°C).
Colder holding temperatures
provide better tasting milk,
increased sales and less product
waste.

Exterior - all stainless steel exterior
front, sides, back and top.

All stainless steel self-service doors
feature convenient drop front and
“hold-open” fl ip-up top. Standard
with door locks.

Interior - 300 series stainless steel
walls and reinforced fl oor.

Standard with heavy duty fl oor
racks and convenient clean out
drain.

Designed to hold 16 milk crates.

Entire cabinet sturcture and solid
doors are foamed-in-place using
high density, CFC free, polyurethane
insulation.

ROUGH-IN DATA

Capacity

Model Doors

(liters)

TMC-58-S-DS-SS 4 24.5

694

**

Length does not include 1/8" (4 mm) each side for lid pins.

†

Depth does not include 1" (26 mm) each side for bumpers.

*

Height does not include 51/8" (131 mm) for castors.

T

RUE

R

EFRIGERATION

TM

(Cu. Ft.)

MADE IN

U.S.A.

U.S.A.

SINCE 1945

9/06

®

Printed in U.S.A.

Crate

Capacity

16 3 58

R

Specifi cations subject to change without notice.

1

Chart dimensions rounded up to the nearest

/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

Floor

Racks

APPROVALS: AVAILABLE AT:

L

1474

(mm)

**

†

D

333/8

848

*

H

411/8

1045

HP Voltage Amps

1

/2 115/60/1 10.4 5-15P 9

NEMA

Confi g.

Cord

Length

(total ft.)

(total m)

2.74

Crated

Weight

(lbs.)

(kg)

485

220

Model:

TMC-58-S-DS-SS

Milk Cooler:

Dual Sided, Stainless Steel Exterior /
300 Series Stainless Steel Interior

STANDARD FEATURES

DESIGN

• True’s commitment to using the
highest quality materials and
oversized refrigeration systems
provides the user with colder product
temperatures, and lower utility costs
in an attractive, durable school milk
cooler.

REFRIGERATION SYSTEM

• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
134A refrigerant.

• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains milk
temperatures of 33°F to 38°F (.5°C to

3.3°C). Colder holding temperatures
provide better tasting milk, increased
sales and less product waste.

• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger
fan blades give True merchandisers
a more effi cient, low velocity, high
volume airfl ow design. This unique
design ensures, colder holding
temperatures and faster recovery in
high use situations.

• Condensing unit accessed from
behind back grill, slides out for easy
cleaning and maintenance.

CABINET CONSTRUCTION

• Exterior - all stainless steel front,
sides, back and top.

• Interior - 300 series stainless steel
walls and reinforced fl oor. Standard
with heavy duty fl oor racks.

• Insulation - entire cabinet structure is
foamed-in-place using high density,
CFC free, polyurethane insulation.

• Welded, heavy duty galvanized frame
rail dipped in rust inhibiting enamel
paint for corrosion protection inside
and out.

• Frame rail fi tted with four (4) easy
roll, 4" (102 mm) diameter swivel
castors (front castors lock in place).

• Designed to hold 16 milk crates.

DOORS

• All stainless steel self-service doors
feature convenient drop front and
“hold-open” fl ip-up top. Door
support bumpers standard.

• Door locks standard.

• Magnetic door gaskets of one piece
construction, removable without tools
for ease of cleaning.

MODEL FEATURES

• Exterior mounted digital temperature
display.

• Evaporator is epoxy coated to
eliminate the potential of corrosion.

• Convenient clean out drain with

1

/2" (13 mm) NPT-PVC drain plug.

• Listed under NSF-7 for the storage
and/or display of packaged or bottled
product.

ELECTRICAL

• Unit completely pre-wired at factory
and ready for fi nal connection to a
115/60/1 phase - 15 amp dedicated
outlet. Cord and plug set included.

115/60/1
NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.
❒ A variety of exterior color options

available, see www.truemfg.com for
latest offerings.

❒ 6

" (153 mm) standard legs (mounting

plates required).

❒ 6

" (153 mm) seismic/fl anged legs

(mounting plates required).

❒ Corner bumpers.
❒ See www.truemfg.com for school milk

profi t calculator.

❒ Remote cabinets (condensing unit

supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant),
consult factory technical service
department for BTU information.

PLAN VIEW

1

491/2"

(1258 mm)

/2" (13 mm)

NPT PVC

Drain Plug

PLAN VIEW

BACK VIEW

7

/64"(3 mm)

Lid pin

151/2"

(394 mm)

181/2"

(470 mm)

239/16"

(599 mm)

One year warranty on all parts

& labor and an additional 4 year

WARRANTY

warranty on compressor.

(U.S.A. only)

587/32"

(1479 mm)

58"

(1474 mm)

541/2"

(1385 mm)

ELEVATION

461/8"

107/16"

(266 mm)

155/16"

(389 mm)

35

°F

34"

(864 mm)

411/16"

(1043 mm)

(1096 mm)

51/16"

(129 mm)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

6315/16"

(1625 mm)

RIGHT VIEW

KCL

155/16"

(389 mm)

Model Elevation Right Plan 3D

TMC-58-S-DS-SS TFQ062E TFQ062S TFQ062P TFQ0623

TRUE FOOD SERVICE EQUIPMENT

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com

35

°F

35

°F

1"

(26 mm)

1"

(26 mm)

335/16"

(847 mm)

355/16"

(897 mm)
