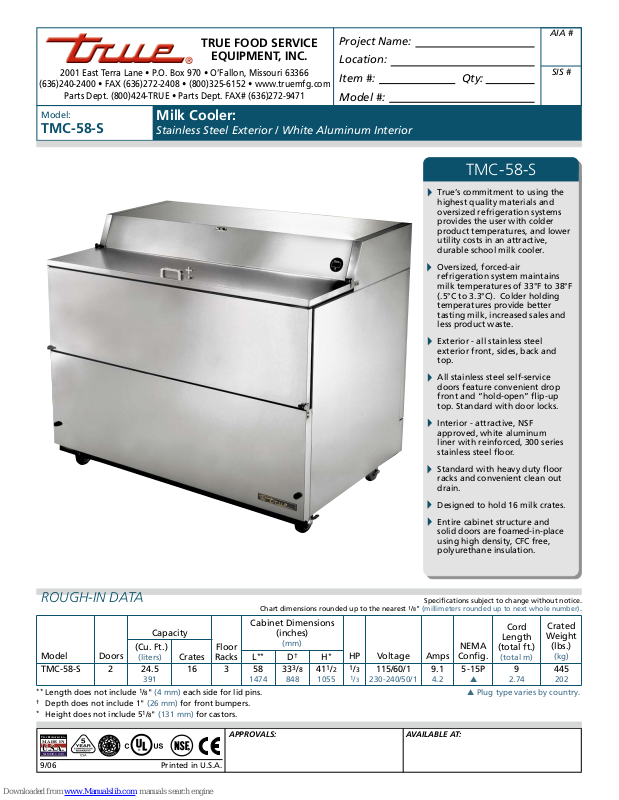

True TMC-58-S Specifications
TRUE FOOD SERVICE
.S.A.
EQUIPMENT, INC.
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
(636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# (636)272-9471
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Model:
TMC-58-S
Milk Cooler:
Stainless Steel Exterior / White Aluminum Interior
TMC-58-S
True’s commitment to using the
highest quality materials and
oversized refrigeration systems
provides the user with colder
product temperatures, and lower
utility costs in an attractive,
durable school milk cooler.
Oversized, forced-air
refrigeration system maintains
milk temperatures of 33°F to 38°F
(.5°C to 3.3°C). Colder holding
temperatures provide better
tasting milk, increased sales and
less product waste.
Exterior - all stainless steel
exterior front, sides, back and
top.
All stainless steel self-service
doors feature convenient drop
front and “hold-open” fl ip-up
top. Standard with door locks.
Interior - attractive, NSF
approved, white aluminum
liner with reinforced, 300 series
stainless steel fl oor.
Standard with heavy duty fl oor
racks and convenient clean out
drain.
Designed to hold 16 milk crates.
Entire cabinet structure and
solid doors are foamed-in-place
using high density, CFC free,
polyurethane insulation.
ROUGH-IN DATA
Capacity
Model Doors
TMC-58-S 2 24.5
**
Length does not include 1/8" (4 mm) each side for lid pins. ▲ Plug type varies by country.
†
Depth does not include 1" (26 mm) for front bumpers.
*
Height does not include 51/8" (131 mm) for castors.
T
RUE
R
EFRIGERATION
TM
MADE IN
U.S.A.
U.S.A.
SINCE 1945
9/06
(Cu. Ft.)
(liters) Crates
391
®
Printed in U.S.A.
16 3 58
R
Specifi cations subject to change without notice.
1
Chart dimensions rounded up to the nearest
/8" (millimeters rounded up to next whole number).
Cabinet Dimensions
(inches)
Floor
Racks
L
1474
APPROVALS: AVAILABLE AT:
(mm)
**
†
D
333/8
848
*
H
411/2
1055
HP Voltage Amps
1
/3
115/60/1
1
/3
230-240/50/1
9.1
4.2
NEMA
Confi g.
5-15P
▲
Cord
Length
(total ft.)
(total m)
9
2.74
Crated
Weight
(lbs.)
(kg)
445
202
Model:
TMC-58-S
Milk Cooler:
Stainless Steel Exterior /
White Aluminum Interior
STANDARD FEATURES
DESIGN
• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures,
and lower utility costs in an attractive,
durable school milk cooler.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
134A refrigerant.
• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains milk
temperatures of 33°F to 38°F (.5°C to
3.3°C). Colder holding temperatures
provide better tasting milk, increased
sales and less product waste.
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger fan
blades give True merchandisers a more
effi cient, low velocity, high volume
airfl ow design. This unique design
ensures colder holding temperatures
and faster recovery in high use
situations.
• Condensing unit accessed from behind
back grill, slides out for easy cleaning
and maintenance.
CABINET CONSTRUCTION
• Exterior - all stainless steel front, sides,
back and top.
• Interior - attractive, NSF approved,
white aluminum liner with reinforced,
300 series stainless steel fl oor. Standard
with heavy duty fl oor racks.
• Insulation - entire cabinet structure is
foamed-in-place using high density,
CFC free, polyurethane insulation.
• Welded, heavy duty galvanized frame
rail dipped in rust inhibiting enamel
paint for corrosion protection inside
and out.
• Frame rail fi tted with four (4) easy roll,
4" (102 mm) diameter swivel castors
(front castors lock in place).
• Designed to hold 16 milk crates.
DOORS
• All stainless steel self-service doors
feature convenient drop front and
“hold-open” fl ip-up top. Door support
bumpers standard.
• Door locks standard.
• Magnetic door gaskets of one piece
construction, removable without tools
for ease of cleaning.
MODEL FEATURES
• Exterior digital temperature display.
• Evaporator is epoxy coated to
eliminate the potential of corrosion.
• Convenient clean out drain with
1
/2"
(13 mm) NPT-PVC drain plug.
• Listed under NSF-7 for the storage
and /or display of packaged or bottled
product.
ELECTRICAL
• Unit completely pre-wired at factory
and ready for fi nal connection to a
115/60/1 phase - 15 amp dedicated
outlet. Cord and plug set included.
115/60/1
NEMA-5-15R
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 230 - 240V / 50 Hz.
❒ A variety of exterior color options
available, see www.truemfg.com for
latest offerings.
❒ 6" (153 mm) standard legs (mounting
plates required).
❒ 6" (153 mm) seismic/fl anged legs
(mounting plates required).
❒ Corner bumpers.
❒ See www.truemfg.com for school milk
profi t calculator.
❒ Remote cabinets (condensing unit
supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant),
consult factory technical service
department for BTU information.
PLAN VIEW
7
/64"(3 mm)
Lid pin
587/32"
(1479 mm)
58"
(1474 mm)
151/2"
(394 mm)
(470 mm)
239/16"
(599 mm)
181/2"
541/2"
(1385 mm)
ELEVATION
One year warranty on all parts
& labor and an additional 4 year
WARRANTY
warranty on compressor.
(U.S.A. only)
35
°F
34"
(864 mm)
411/2"
(1055 mm)
469/16"
(1183 mm)
51/16"
(129 mm)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
147/16"
(367 mm)
161/16"
(408 mm)
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • (636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
493/8"
(1255 mm)
RIGHT VIEW
KCL
1
/2" (13mm)
13"
NPT PVC
Drain Plug
BACK VIEW
PLAN VIEW
335/16"
(847 mm)
3
/16"
(5 mm)
531/2"
(1359 mm)
(331 mm)
Model Elevation Right Plan 3D
TMC-58-S TFQ061E TFQY60S TFQY61P TFQY613
35
°F
345/16"
(872 mm)
1"
(26 mm)
