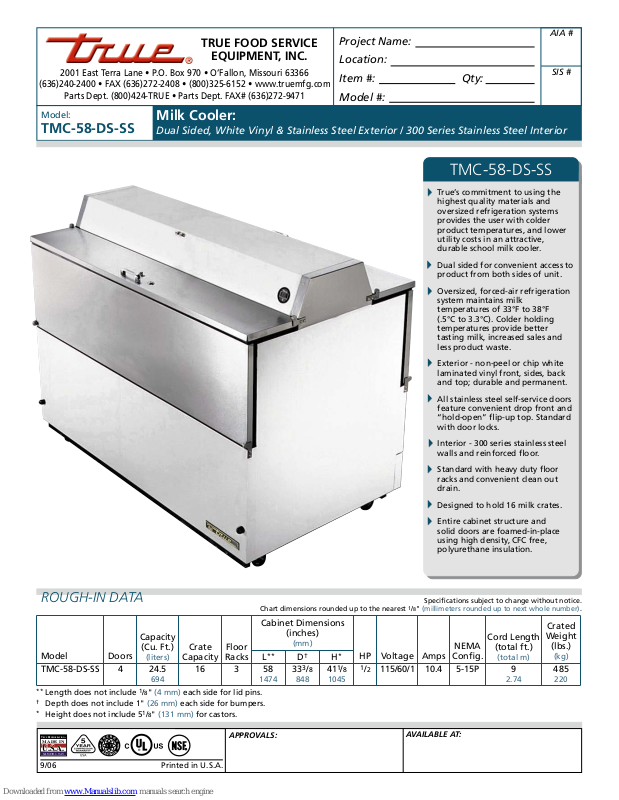

True TMC-58-DS-SS Specifications
TRUE FOOD SERVICE
.S.A.
EQUIPMENT, INC.
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
(636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# (636)272-9471
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Model:
TMC-58-DS-SS
Milk Cooler:
Dual Sided, White Vinyl & Stainless Steel Exterior / 300 Series Stainless Steel Interior
TMC-58-DS-SS
True’s commitment to using the
highest quality materials and
oversized refrigeration systems
provides the user with colder
product temperatures, and lower
utility costs in an attractive,
durable school milk cooler.
Dual sided for convenient access to
product from both sides of unit.
Oversized, forced-air refrigeration
system maintains milk
temperatures of 33°F to 38°F
(.5°C to 3.3°C). Colder holding
temperatures provide better
tasting milk, increased sales and
less product waste.
Exterior - non-peel or chip white
laminated vinyl front, sides, back
and top; durable and permanent.
All stainless steel self-service doors
feature convenient drop front and
“hold-open” fl ip-up top. Standard
with door locks.
Interior - 300 series stainless steel
walls and reinforced fl oor.
Standard with heavy duty fl oor
racks and convenient clean out
drain.
Designed to hold 16 milk crates.
Entire cabinet structure and
solid doors are foamed-in-place
using high density, CFC free,
polyurethane insulation.
ROUGH-IN DATA
Capacity
Model Doors
(liters)
TMC-58-DS-SS 4 24.5
694
**
Length does not include 1/8" (4 mm) each side for lid pins.
†
Depth does not include 1" (26 mm) each side for bumpers.
*
Height does not include 51/8" (131 mm) for castors.
T
RUE
R
EFRIGERATION
TM
(Cu. Ft.)
MADE IN
U.S.A.
U.S.A.
SINCE 1945
9/06
®
Crate
Capacity
16 3 58
R
Printed in U.S.A.
Floor
Racks
APPROVALS:
Chart dimensions rounded up to the nearest
Cabinet Dimensions
(inches)
(mm)
**
L
1474
†
D
333/8
848
*
H
411/8
1045
HP Voltage Amps
1
/2 115/60/1 10.4 5-15P 9
Specifi cations subject to change without notice.
1
/8" (millimeters rounded up to next whole number).
Crated
Weight
(lbs.)
(kg)
NEMA
Confi g.
Cord Length
(total ft.)
(total m)
485
2.74
AVAILABLE AT:
220
Model:
TMC-58-DS-SS
Milk Cooler:
Dual Sided, White Vinyl & Stainless Steel Exterior /
300 Series Stainless Steel Interior
STANDARD FEATURES
DESIGN
• True’s commitment to using the
highest quality materials and
oversized refrigeration systems
provides the user with colder product
temperatures, and lower utility costs
in an attractive, durable school milk
cooler.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
134A refrigerant.
• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains milk
temperatures of 33°F to 38°F (.5°C to
3.3°C). Colder holding temperatures
provide better tasting milk, increased
sales and less product waste.
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger
fan blades give True merchandisers
a more effi cient, low velocity, high
volume airfl ow design. This unique
design insures colder holding
temperatures and faster recovery in
high use situations.
• Condensing unit accessed from behind
back grill, slides out for easy cleaning
and maintenance.
CABINET CONSTRUCTION
• Exterior - non-peel or chip white vinyl
front, sides, back, and top; durable
and permanent.
• Interior - 300 series stainless steel walls
and reinforced fl oor. Standard with
heavy duty fl oor racks.
• Insulation - entire cabinet structure is
foamed-in-place using high density,
CFC free, polyurethane insulation.
• Welded, heavy duty galvanized frame
rail dipped in rust inhibiting enamel
paint for corrosion protection inside
and out.
• Frame rail fi tted with four (4) easy roll,
4" (102 mm) diameter swivel castors
(front castors lock in place).
• Designed to hold 16 milk crates.
DOORS
• All stainless steel self-service doors
feature convenient drop front and
“hold-open” fl ip-up top. Door
support bumpers standard.
• Door locks standard.
• Magnetic door gaskets of one piece
construction, removable without tools
for ease of cleaning.
MODEL FEATURES
• Exterior digital temperature display.
• Evaporator is epoxy coated to
eliminate the potential of corrosion.
• Convenient clean out drain with
1
/2"
(13 mm) NPT-PVC drain plug.
• Listed under NSF-7 for the storage
and/or display of packaged or bottled
product.
ELECTRICAL
• Unit completely pre-wired at factory
and ready for fi nal connection to a
115/60/1 phase - 15 amp dedicated
outlet. Cord and plug set included.
115/60/1
NEMA-5-15R
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ A variety of exterior color options
available, see www.truemfg.com for
latest offerings.
❒ 6" (153 mm) standard legs (mounting
plates required).
❒ 6" (153 mm) seismic/fl anged legs
(mounting plates required).
❒ Corner bumpers.
❒ See www.truemfg.com for school milk
profi t calculator.
❒ Remote cabinets (condensing unit
supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant),
consult factory technical service
department for BTU information.
PLAN VIEW
1
491/2"
(1258 mm)
/2" (13 mm)
NPT PVC
Drain Plug
BACK VIEW
PLAN VIEW
7
/64"(3 mm)
Lid pin
151/2"
(394 mm)
181/2"
(470 mm)
239/16"
(599 mm)
One year warranty on all parts
& labor and an additional 4 year
WARRANTY
warranty on compressor.
(U.S.A. only)
587/32"
(1479 mm)
58"
(1474 mm)
541/2"
(1385 mm)
ELEVATION
469/16"
107/16"
(266 mm)
155/16"
(389 mm)
35
°F
34"
(864 mm)
411/2"
(1055 mm)
(1183 mm)
51/16"
(129 mm)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
6315/16"
(1625 mm)
RIGHT VIEW
KCL
155/16"
(389 mm)
Model Elevation Right Plan 3D
TMC-58-DS-SS TFQ062E TFQ062S TFQ062P TFQ0623
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • (636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
35
°F
35
°F
1"
(26 mm)
1"
(26 mm)
335/16"
(847 mm)
355/16"
(897 mm)
