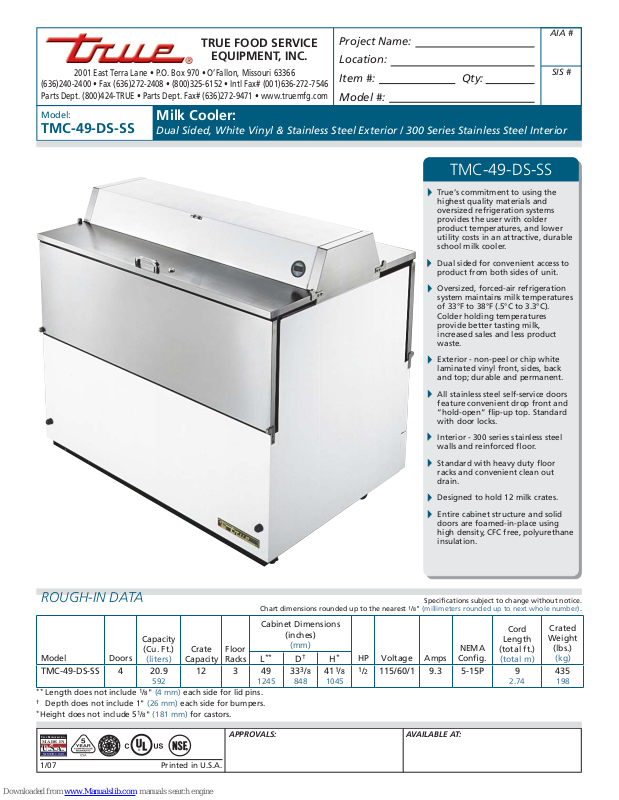

True TMC-49-DS-SS Specifications

TRUE FOOD SERVICE

.S.A.

EQUIPMENT, INC.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TMC-49-DS-SS

Milk Cooler:

Dual Sided, White Vinyl & Stainless Steel Exterior / 300 Series Stainless Steel Interior

TMC-49-DS-SS

True’s commitment to using the
highest quality materials and
oversized refrigeration systems
provides the user with colder
product temperatures, and lower
utility costs in an attractive, durable
school milk cooler.

Dual sided for convenient access to
product from both sides of unit.

Oversized, forced-air refrigeration
system maintains milk temperatures
of 33°F to 38°F (.5°C to 3.3°C).
Colder holding temperatures
provide better tasting milk,
increased sales and less product
waste.

Exterior - non-peel or chip white
laminated vinyl front, sides, back
and top; durable and permanent.

All stainless steel self-service doors
feature convenient drop front and
“hold-open” fl ip-up top. Standard
with door locks.

Interior - 300 series stainless steel
walls and reinforced fl oor.

Standard with heavy duty fl oor
racks and convenient clean out
drain.

Designed to hold 12 milk crates.

Entire cabinet structure and solid
doors are foamed-in-place using
high density, CFC free, polyurethane
insulation.

ROUGH-IN DATA

Capacity

Model Doors

(liters)

TMC-49-DS-SS 4 20.9

(Cu. Ft.)

**

Length does not include 1/8" (4 mm) each side for lid pins.

†

Depth does not include 1" (26 mm) each side for bumpers.

*

Height does not include 51/8" (181 mm) for castors.

T

RUE

R

EFRIGERATION

TM

MADE IN

U.S.A.

U.S.A.

SINCE 1945

1/07

592

®

Crate

Capacity

12 3 49

R

Printed in U.S.A.

Specifi cations subject to change without notice.

1

Chart dimensions rounded up to the nearest

/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

Floor

Racks

1245

APPROVALS: AVAILABLE AT:

(mm)

**

L

†

D

333/8

848

*

H

411/8

1045

HP Voltage Amps

1

/2 115/60/1 9.3 5-15P 9

NEMA

Confi g.

Cord

Length

(total ft.)

(total m)

2.74

Crated

Weight

(lbs.)

(kg)

435

198

Model:

TMC-49-DS-SS

Milk Cooler:

Dual Sided, White Vinyl & Stainless Steel Exterior /
300 Series Stainless Steel Interior

STANDARD FEATURES

DESIGN

• True’s commitment to using the
highest quality materials and
oversized refrigeration systems
provides the user with colder product
temperatures, and lower utility costs
in an attractive, durable school milk
cooler.

REFRIGERATION SYSTEM

• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
134A refrigerant.

• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains milk
temperatures of 33°F to 38°F (.5°C to

3.3°C). Colder holding temperatures
provide better tasting milk, increased
sales and less product waste.

• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger fan
blades give True merchandisers a more
effi cient, low velocity, high volume
airfl ow design. This unique design
ensures colder holding temperatures
and faster recovery in high use
situations.

• Condensing unit accessed from behind
back grill, slides out for easy cleaning
and maintenance.

CABINET CONSTRUCTION

• Exterior - non-peel or chip white vinyl
front, sides, back and top; durable and
permanent.

• Interior - 300 series stainless steel walls
and reinforced fl oor. Standard with
heavy duty fl oor racks.

• Insulation - entire cabinet structure is
foamed-in-place using high density,
CFC free, polyurethane insulation.

• Welded, heavy duty galvanized frame
rail dipped in rust inhibiting enamel
paint for corrosion protection inside
and out.

• Frame rail fi tted with four (4) easy roll,
4" (102 mm) diameter swivel castors
(front castors lock in place).

• Designed to hold 12 milk crates.

DOORS

• All stainless steel self-service doors
feature convenient drop front and
“hold-open” fl ip-up top. Door
support bumpers standard.

• Door locks standard.

• Magnetic door gaskets of one piece
construction, removable without tools
for ease of cleaning.

MODEL FEATURES

• Exterior digital temperature display.

• Evaporator is epoxy coated to
eliminate the potential of corrosion.

• Convenient clean out drain with

1

/2"

(13 mm) NPT-PVC drain plug.

• Listed under NSF-7 for the storage
and/or display of packaged or bottled
product.

ELECTRICAL

• Unit completely pre-wired at factory
and ready for fi nal connection to a
115/60/1 phase - 15 amp dedicated
outlet. Cord and plug set included.

115/60/1
NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.
❒ A variety of exterior color options

available, see www.truemfg.com for
latest offerings.

❒ 6" (153 mm) standard legs (mounting

plates required).

❒ 6" (153 mm) seismic/fl anged legs

(mounting plates required).

❒ Corner bumpers.
❒ See www.truemfg.com for school milk

profi t calculator.

❒ Remote cabinets (condensing unit

supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant).
Consult factory technical service
department for BTU information.

PLAN VIEW

7

/64" (3 mm)

Lid pin

497/32"

(1251 mm)

(1245 mm)

151/2"

(394 mm)

181/2"

(470 mm)

239/16"

(599 mm)

One year warranty on all parts

and labor and an additional 4
year warranty on compressor.

WARRANTY

(U.S.A. only)

451/2"

(1156 mm)

ELEVATION

49"

461/8"

(1172 mm)

51/16"

(129 mm)

107/16"

(266 mm)

155/16"

(389 mm)

RIGHT VIEW

35

F

411/16"

(1043 mm)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

6315/16"

(1625 mm)

KCL

(1258 mm)

155/16"

(389 mm)

Model Elevation Right Plan 3D

TMC-49-DS-SS TFQ063E TFQ062S TFQ063P TFQ0633

491/2"

1

/2"(13 mm)

NPT PVC

Drain Plug

BACK VIEW

PLAN VIEW

°F

35

°F

35

1"

(26 mm)

335/16"

(847 mm)

355/16"

(897 mm)

1"

(26 mm)
