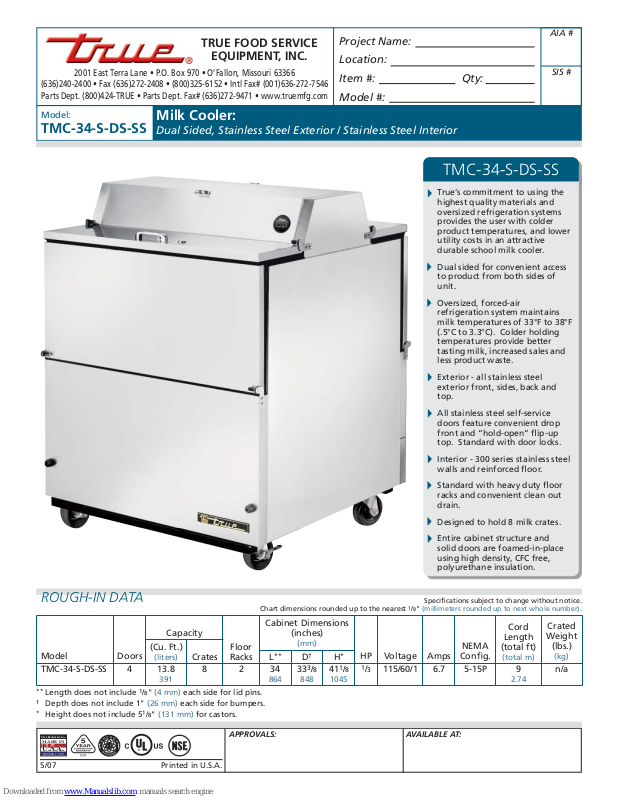

True TMC-34-S-DS-SS Specifications

TRUE FOOD SERVICE

.S.A.

EQUIPMENT, INC.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TMC-34-S-DS-SS

Milk Cooler:

Dual Sided, Stainless Steel Exterior / Stainless Steel Interior

TMC-34-S-DS-SS

True’s commitment to using the
highest quality materials and
oversized refrigeration systems
provides the user with colder
product temperatures, and lower
utility costs in an attractive
durable school milk cooler.

Dual sided for convenient access
to product from both sides of
unit.

Oversized, forced-air
refrigeration system maintains
milk temperatures of 33°F to 38°F
(.5°C to 3.3°C). Colder holding
temperatures provide better
tasting milk, increased sales and
less product waste.

Exterior - all stainless steel
exterior front, sides, back and
top.

All stainless steel self-service
doors feature convenient drop
front and “hold-open” fl ip-up
top. Standard with door locks.

Interior - 300 series stainless steel
walls and reinforced fl oor.

Standard with heavy duty fl oor
racks and convenient clean out
drain.

Designed to hold 8 milk crates.

Entire cabinet structure and
solid doors are foamed-in-place
using high density, CFC free,
polyurethane insulation.

ROUGH-IN DATA

Capacity

Model Doors
TMC-34-S-DS-SS 4 13.8

**

Length does not include 1/8" (4 mm) each side for lid pins.

†

Depth does not include 1" (26 mm) each side for bumpers.

*

Height does not include 51/8" (131 mm) for castors.

T

RUE

R

EFRIGERATION

TM

MADE IN

U.S.A.

U.S.A.

SINCE 1945

5/07

(Cu. Ft.)

(liters) Crates

391

®

Printed in U.S.A.

8234

R

Specifi cations subject to change without notice.

1

Chart dimensions rounded up to the nearest

/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

Floor

Racks

APPROVALS: AVAILABLE AT:

**

L

864

(mm)

†

D

333/8

848

*

H

411/8

1045

HP Voltage Amps

1

/3 115/60/1 6.7 5-15P 9

NEMA

Confi g.

Cord

Length

(total ft)

(total m)

2.74

Crated

Weight

(lbs.)

(kg)

n/a

Model:

TMC-34-S-DS-SS

Milk Cooler:

Dual Sided, Stainless Steel Exterior /
Stainless Steel Interior

STANDARD FEATURES

DESIGN

• True’s commitment to using the
highest quality materials and
oversized refrigeration systems
provides the user with colder product
temperatures and lower utility costs
in an attractive, durable school milk
cooler.

REFRIGERATION SYSTEM

• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
134A refrigerant.

• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains milk
temperatures of 33°F to 38°F (.5°C to

3.3°C). Colder holding temperatures
provide better tasting milk, increased
sales and less product waste.

• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger
fan blades give True merchandisers
a more effi cient low velocity, high
volume airfl ow design. This unique
design ensures colder holding
temperatures and faster recovery in
high use situations.

• Condensing unit accessed from
behind back grill, slides out for easy
cleaning and maintenance.

CABINET CONSTRUCTION

• Exterior - all stainless steel front,
sides, back and top.

• Interior - 300 series stainless steel
walls and reinforced fl oor. Standard
with heavy duty fl oor racks.

• Insulation - entire cabinet structure
and solid doors are foamed-in­place using high density, CFC free,
polyurethane insulation.

• Welded, heavy duty galvanized frame
rail dipped in rust inhibiting enamel
paint for corrosion protection inside
and out.

• Frame rail fi tted with four (4) easy
roll, 4" (102 mm) diameter swivel
castors (front castors lock in place).

• Designed to hold 8 milk crates.

DOORS

• All stainless steel self-service doors
feature convenient drop front and
“hold-open” fl ip-up top. Door
support bumpers standard.

• Door locks standard.

• Magnetic door gaskets of one piece
construction, removable without
tools for ease of cleaning.

MODEL FEATURES

• Exterior digital temperature display.

• Evaporator is epoxy coated to
eliminate the potential of corrosion.

• Convenient clean out drain with

1

/2"

(13 mm) NPT-PVC drain plug.

• Listed under NSF-7 for the storage
and/or display of packaged or bottled
product.

ELECTRICAL

• Unit completely pre-wired at factory
and ready for fi nal connection to a
115/60/1 phase, 15 amp dedicated
outlet. Cord and plug set included.

115/60/1
NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❒

A variety of exterior color options
available, see www.truemfg.com for
latest offerings.

❒

6" (153 mm) standard legs (mounting
plates required).

❒

6" (153 mm) seismic/fl anged legs
(mounting plates required).

❒

Corner bumpers.

❒

See www.truemfg.com for school
milk profi t calculator.

❒

Remote cabinets (condensing unit
supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant),
consult factory technical service
department for BTU information.

PLAN VIEW

7

/64" (3mm)

Lid pin

347/32"

(870 mm)

34"

(864 mm)

35

°F

151/2"

(394 mm)

181/2"

(470 mm)

4"

(102 mm)

One year warranty on all parts

& labor and an additional 4 year

warranty on compressor.

301/2"

(775 mm)

ELEVATION

WARRANTY

(U.S.A. only)

51/16"

(129 mm)

107/16"

461/8"

(1172 mm)

411/16"

(1043 mm)

239/16"

(599 mm)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

(266 mm)

155/16"

(389 mm)

6315/16"

(1624 mm)

RIGHT VIEW

KCL

491/2"

(1258 mm)

155/16"

(389 mm)

Model Elevation Right Plan 3D

TMC-34-S-DS-SS

1

/2"(13 mm)

NPT PVC

Drain Plug

BACK VIEW

PLAN VIEW

35

°F

1"

(26 mm)

335/16"

(847 mm)

355/16"

(897 mm)

1"

(26 mm)
