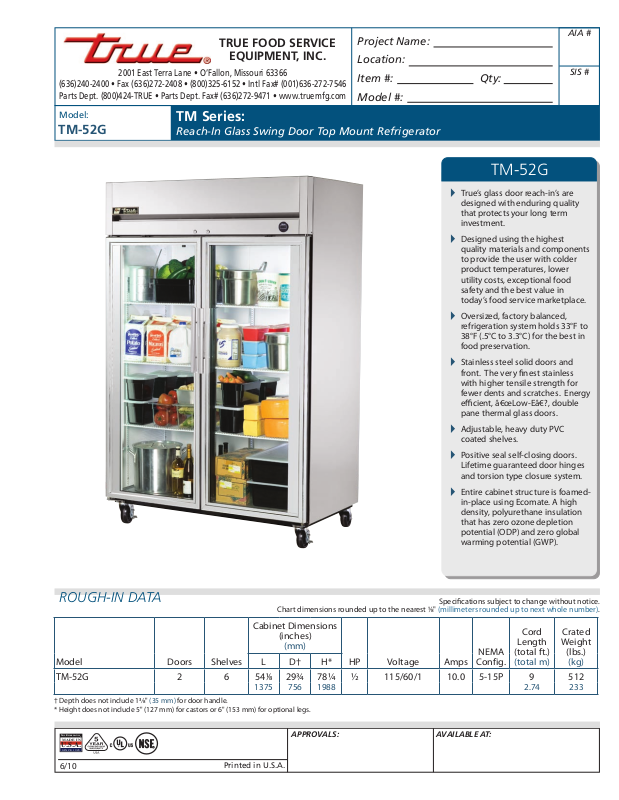

True TM-52G Specifications

TRUE FOOD SERVICE

T

RUE

R

EFRIGERAT ION

MADE IN

SINCE 1945

U.S.A.

®

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TM-52G

TM Series:

Reach-In Glass Swing Door Top Mount Refrigerator

TM-52G

True’s glass door reach-in’s are



designed with enduring quality
that protects your long term
investment.

Designed using the highest



quality materials and components
to provide the user with colder
product temperatures, lower
utility costs, exceptional food
safety and the best value in
today’s food service marketplace.

Oversized, factory balanced,



refrigeration system holds 33°F to
38°F (.5°C to 3.3°C) for the best in
food preservation.

Stainless steel solid doors and



front. The very nest stainless
with higher tensile strength for
fewer dents and scratches. Energy
ecient, “Low-Eâ€?, double
pane thermal glass doors.

Adjustable, heavy duty PVC



coated shelves.

Positive seal self-closing doors.



Lifetime guaranteed door hinges
and torsion type closure system.

Entire cabinet structure is foamed-



in-place using Ecomate. A high
density, polyurethane insulation
that has zero ozone depletion
potential (ODP) and zero global
warming potential (GWP).

Rough-In Data

Model Doors Shelves

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)L D† H*

TM-52G 2 6 54⁄ 29¾ 78¼ ½ 115/60/1 10.0 5-15P 9 512

1375 756 1988 2.74 233

† Depth does not include 1⁄" (35 mm) for door handle.
* Height does not include 5" (127 mm) for castors or 6" (153 mm) for optional legs.

ApprovAls: AvAilAble At:

6/10

Printed in U.S.A.

Model:

TM-52G

TM Series:

Reach-In Glass Swing Door Top Mount
Refrigerator

StanDaRD FeatuReS

DESIGN

True’s commitment to using the

•

highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures, lower
utility costs, exceptional food safety and
the best value in today’s food service
marketplace.

REFRIGERATION SYSTEM

Factory engineered, self-contained,

•

capillary tube system using
environmentally friendly (CFC free) 134A
refrigerant.
Extra large evaporator coil balanced with

•

higher horsepower compressor and large
condenser; maintains 33°F to 38°F (.5°C to

3.3°C) for the best in food preservation.
Sealed, cast iron, self-lubricating evaporator

•

fan motor(s) and larger fan blades give True
reach-in’s a more ecient, low velocity,
high volume airow design. This unique
design ensures faster temperature recovery
and shorter run times in the busiest of food
service environments.
Top-mounted condensing unit.

•

CABINET CONSTRUCTION

Exterior - Stainless steel front. Anodized

•

quality aluminum exterior ends and back.
Interior - attractive, NSF approved, white

•

aluminum liner. 300 series stainless steel
oor with coved corners.

Insulation - entire cabinet structure is

•

foamed-in-place using Ecomate. A high
density, polyurethane insulation that has
zero ozone depletion potential (ODP) and
zero global warming potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.
Frame rail tted with 4" (102 mm) diameter

•

stem castors - locks provided on front set.

DOORS

Each door tted with 15" (381 mm) long

•

extruded aluminum handle.
Positive seal self-closing doors. Lifetime

•

guaranteed door hinges and torsion type
closure system.
Magnetic door gaskets of one piece

•

construction, removable without tools for
ease of cleaning.

SHELVING

Six (6) adjustable, heavy duty PVC coated

•

wire shelves 24 ⁄ "L x 22 ⁄"D (624 mm x
569 mm). Four (4) chrome plated shelf clips
included per shelf.
Shelf support pilasters made of same

•

material as cabinet interior; shelves are
adjustable on ½" (13 mm) increments.

LIGHTING

Fluorescent interior lighting. Each door

•

utilizes a full-length, patented, integrated
door light (IDL) system. Safety shielded.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
Digital exterior temperature display.

•

NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord and
plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

6" (153 mm) standard legs. ❑
6" (153 mm) seismic/anged legs. ❑
Alternate door hinging (factory installed). ❑
Additional shelves. ❑
Half door bun tray racks. Each holds up ❑
to eleven 18"L x 26"D (458 mm x 661 mm)
sheet pans (sold separately).
Full door bun tray racks. Each holds up to ❑
twenty-two 18"L x 26"D (458 mm x 661
mm) sheet pans (sold separately).
Remote cabinets (condensing unit supplied ❑
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical
service department for BTU information.
All remote units must be hard wired during
installation.

Plan VIew

Cubic Ft./Liters

* Based on ANSI/AHAM HRF-1-2004

One year warranty on all parts

and laborand an additional 4
year warranty on compressor.

52/1473

WARRANTY

(U.S.A. only)

2001 East Terra Lane • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

TRUE FOOD SERVICE EQUIPMENT

KCL

Model Elevation Right Plan 3D Back

TM-52G TFEY71E TFEY71S TFEY71P TFEY713
