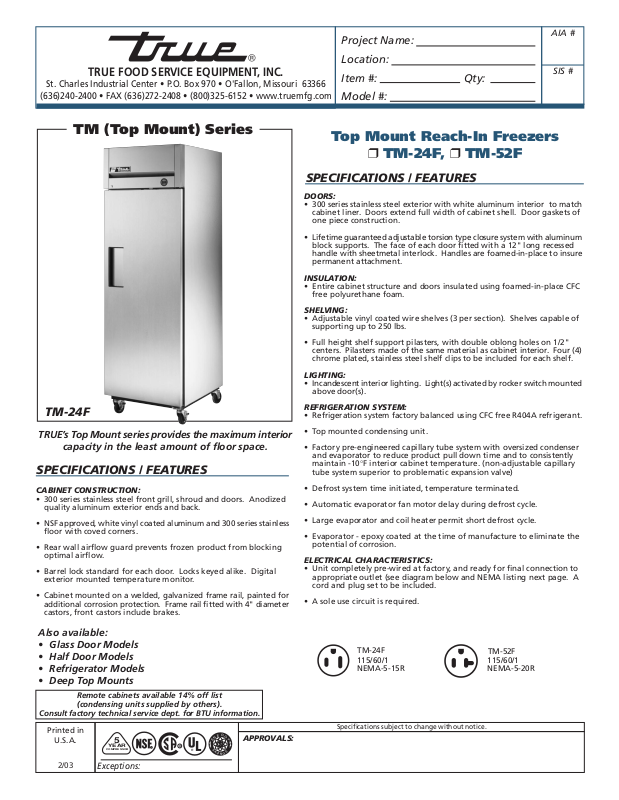

True TM-24F User Manual
TRUE FOOD SERVICE EQUIPMENT, INC.
St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366
(636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
TM (Top Mount) Series
TM-24F
TRUE’s Top Mount series provides the maximum interior
capacity in the least amount of floor space.
SPECIFICATIONS / FEATURES
CABINET CONSTRUCTION:
• 300 series stainless steel front grill, shroud and doors. Anodized
quality aluminum exterior ends and back.
• NSF approved, white vinyl coated aluminum and 300 series stainless
floor with coved corners.
• Rear wall airflow guard prevents frozen product from blocking
optimal airflow.
• Barrel lock standard for each door. Locks keyed alike. Digital
exterior mounted temperature monitor.
• Cabinet mounted on a welded, galvanized frame rail, painted for
additional corrosion protection. Frame rail fitted with 4" diameter
castors, front castors include brakes.
Top Mount Reach-In Freezers
❒ TM-24F, ❒ TM-52F
SPECIFICATIONS / FEATURES
DOORS:
• 300 series stainless steel exterior with white aluminum interior to match
cabinet liner. Doors extend full width of cabinet shell. Door gaskets of
one piece construction.
• Lifetime guaranteed adjustable torsion type closure system with aluminum
block supports. The face of each door fitted with a 12" long recessed
handle with sheetmetal interlock. Handles are foamed-in-place to insure
permanent attachment.
INSULATION:
• Entire cabinet structure and doors insulated using foamed-in-place CFC
free polyurethane foam.
SHELVING:
• Adjustable vinyl coated wire shelves (3 per section). Shelves capable of
supporting up to 250 lbs.
• Full height shelf support pilasters, with double oblong holes on 1/2"
centers. Pilasters made of the same material as cabinet interior. Four (4)
chrome plated, stainless steel shelf clips to be included for each shelf.
LIGHTING:
• Incandescent interior lighting. Light(s) activated by rocker switch mounted
above door(s).
REFRIGERATION SYSTEM:
• Refrigeration system factory balanced using CFC free R404A refrigerant.
• Top mounted condensing unit.
• Factory pre-engineered capillary tube system with oversized condenser
and evaporator to reduce product pull down time and to consistently
maintain -10°F interior cabinet temperature. (non-adjustable capillary
tube system superior to problematic expansion valve)
• Defrost system time initiated, temperature terminated.
• Automatic evaporator fan motor delay during defrost cycle.
• Large evaporator and coil heater permit short defrost cycle.
• Evaporator - epoxy coated at the time of manufacture to eliminate the
potential of corrosion.
ELECTRICAL CHARACTERISTICS:
• Unit completely pre-wired at factory, and ready for final connection to
appropriate outlet (see diagram below and NEMA listing next page. A
cord and plug set to be included.
• A sole use circuit is required.
Also available:
• Glass Door Models
• Half Door Models
• Refrigerator Models
• Deep Top Mounts
Remote cabinets available 14% off list
Consult factory technical service dept. for BTU information.
(condensing units supplied by others).
Printed in
U.S.A.
2/03
5
YEAR
COMPRESSOR
Exceptions:
R
R
E
G
N
Y
APPROVALS:
E
R
S
S
®
A
S
V
I
G
N
TM-24F
115/60/1
NEMA-5-15R
Specifications subject to change without notice.
TM-52F
115/60/1
NEMA-5-20R
®
3
1
/
8
"
27"
1
18
/
16
"
TM-Series: Top Mount Reach-In Freezers
3
1
/
8
"
18
54"
1
/
16
"
3
63
L - 69 cm
D - 75 cm
H - 199 cm
Door
Swing - 65 cm
1
12
/
2
"
/
8
"
1
29
/
2
"
3
/
4
"
54
1
25
/
4
"
35
°F
1
78
/
4
"
1
83
/
4
"
63
12
3
/
8
"
L - 138 cm
D - 75 cm
H - 199 cm
Door
Swing - 66 cm
1
/
2
"
5"
TM-24F TM-52F
1
29
/
2
"
1
/
4
"
55
3
25
/
4
"
35
°F
1
/
4
"
78
1
83
/
4
"
5"
Rough-In Data
Dimensions Cord
Capacity # of (inches) NEMA Length Crated
Model Doors (Cu. Ft) Shelves L D † H* HP Volts PH Amps Config. (feet) Weight
TM-24F
TM-52F
(1) Available in refrigerator model.
(2) Available with stainless steel half door refrigerator model.
(3) Available in glass door model.
* Height does not include 5” for castors or 6” for optional legs.
† Depth does not include 1 3/8” for upper rear condensate enclosure.
(1, 2)
(1, 2,3)
1 24 3 27 29 1/2 78 1/4 1/2 115 1 9.6 5-15 9 332
2 52 6 54 29 1/2 78 1/4 3/4 115 1 14.0 5-20 9 488
Specifications subject to change without notice.
Standard Features____________________________________________________________________________________________
• Oversized and balanced, environmentally
friendly R404A refrigeration system holds
-10°F.
• 300 series stainless steel doors & front.
• Interior - NSF approved, white vinyl
coated aluminum sides and top, 300
series stainless steel floor with coved
corners.
• Anodized quality aluminum top, sides
and back.
• Standard backguard improves airflow.
• Recessed handles (lifetime guarantee).
• Exterior mounted digital temperature
monitor.
KCL
St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366 • (636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
Model Front Right Plan 3D
TM-24F TFEY20E TFEY75S TFEY03P TFEY753
TM-52F TFEY21E TFEY75S TFEY76P TFEY763
• Door locks standard.
• Magnetic door gaskets.
• Adjustable vinyl coated wire shelves.
• Epoxy coated evaporator.
• Incandescent interior lighting.
• 4" diameter swivel castors standard
equipment - locking castors provided for
front set.
• Large evaporator and coil heater permit
short defrost cycle.
• Defrost system time initiated, temperature
terminated.
• Automatic evaporator fan motor delay
during defrost cycle.
TRUE FOOD SERVICE EQUIPMENT
• Minimum wattage heater in cabinet
frame and door.
• Foamed-inplace polyurethane high
density cell insulation (CFC free).
• 1 year parts & labor warranty (USA).
• 5 year compressor warranty.
Optional Accessories ______________
❒ Available with 6" stainless steel or optional
seismic legs.
❒ Additional shelves available
Clearance Required For Coolers (USA)
Sides Top Rear
Inches/mm Inches/mm Inches/mm
0 / 0 open 3 / 77
R
E
G
N
Y
YEAR
COMPRESSOR
5
R
R
E
S
S
®
A
S
V
I
G
N
Printed in U.S.A.
