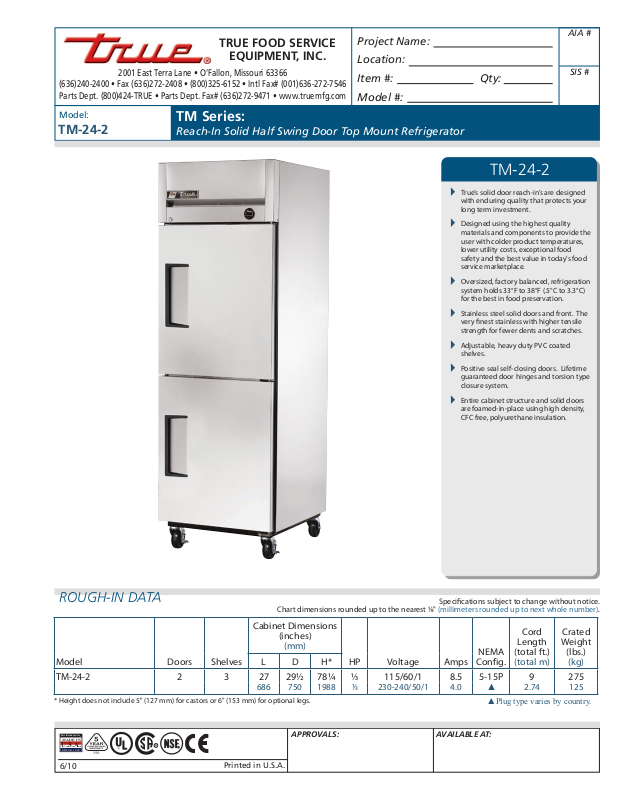

True TM-24-2 Specifications

TRUE FOOD SERVICE

T

RUE

R

EFRIGERAT ION

MADE IN

SINCE 1945

U.S.A.

®

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TM-24-2

TM Series:

Reach-In Solid Half Swing Door Top Mount Refrigerator

TM-24-2

True’s solid door reach-in’s are designed



with enduring quality that protects your
long term investment.

Designed using the highest quality



materials and components to provide the
user with colder product temperatures,
lower utility costs, exceptional food
safety and the best value in today’s food
service marketplace.

Oversized, factory balanced, refrigeration



system holds 33°F to 38°F (.5°C to 3.3°C)
for the best in food preservation.

Stainless steel solid doors and front. The



very nest stainless with higher tensile
strength for fewer dents and scratches.

Adjustable, heavy duty PVC coated



shelves.

Positive seal self-closing doors. Lifetime



guaranteed door hinges and torsion type
closure system.

Entire cabinet structure and solid doors



are foamed-in-place using high density,
CFC free, polyurethane insulation.

Rough-In Data

Model Doors Shelves

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)L D H*

TM-24-2 2 3 27 29½ 78¼ ⁄ 115/60/1 8.5 5-15P 9 275

686 750 1988 ⁄ 230-240/50/1 4.0 ▲ 2.74 125

* Height does not include 5" (127 mm) for castors or 6" (153 mm) for optional legs.

ApprovAls: AvAilAble At:

6/10

Printed in U.S.A.

▲Plug type varies by country.

Model:

TM-24-2

TM Series:

Reach-In Solid Half Swing Door Top Mount
Refrigerator

StanDaRD FeatuReS

DESIGN

True’s commitment to using the highest

•

quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, lower utility costs, exceptional
food safety and the best value in today’s food
service marketplace.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) 134A refrigerant.
Extra large evaporator coil balanced with higher

•

horsepower compressor and large condenser;
maintains 33°F to 38°F (.5°C to 3.3°C) for the best
in food preservation.
Sealed, cast iron, self-lubricating evaporator

•

fan motor(s) and larger fan blades give True
reach-in’s a more ecient, low velocity, high
volume airow design. This unique design
ensures faster temperature recovery and
shorter run times in the busiest of food service
environments.
Top-mounted condensing unit.

•

CABINET CONSTRUCTION

Exterior - Stainless steel door and front.

•

Anodized quality aluminum exterior ends and
back.
Interior - attractive, NSF approved, white

•

aluminum liner. 300 series stainless steel oor
with coved corners.
Insulation - entire cabinet structure and solid

•

doors are foamed-in-place using Ecomate. A
high density, polyurethane insulation that has
zero ozone depletion potential (ODP) and zero
global warming potential (GWP).

Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.
Frame rail tted with 4" (102 mm) diameter stem

•

castors - locks provided on front set.

DOORS

Lifetime guaranteed recessed door handles.

•

Each door tted with 12" (305 mm) long
recessed handle that is foamed-in-place with
a sheet metal interlock to ensure permanent
attachment.
Positive seal self-closing doors. Lifetime

•

guaranteed door hinges and torsion type
closure system.
Magnetic door gasket(s) of one piece

•

construction, removable without tools for ease
of cleaning.

SHELVING

Three (3) adjustable, heavy duty PVC coated

•

wire shelves 22 ⁄ "L x 23 ¼"D (582 mm x
591 mm). Four (4) chrome plated shelf clips
included per shelf.
Shelf support pilasters made of same material as

•

cabinet interior; shelves are adjustable on ½ " (13
mm) increments.

LIGHTING

Incandescent interior lighting - safety shielded.

•

Lights activated by rocker switch mounted
above top door(s).

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
Digital exterior temperature display.

•

NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and ready

•

for nal connection to a 115/60/1 phase, 15 amp
dedicated outlet. Cord and plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

230 - 240V / 50 Hz. ❑
6" (153 mm) standard legs. ❑
6" (153 mm) seismic/anged legs. ❑
Alternate door hinging (factory installed). ❑
Additional shelves. ❑
Half door bun tray racks. Each holds up to ❑
eleven 18"L x 26"D (458 mm x 661 mm) sheet
pans (sold separately).
Full door bun tray racks. Holds up to twenty- ❑
two 18"L x 26"D (458 mm x 661 mm) sheet pans
(sold separately).
Remote cabinets (condensing unit supplied ❑
by others; system comes standard with 404A
expansion valve and requires R404A refrigerant).
Consult factory technical service department for
BTU information. All remote units must be hard
wired during installation.

Plan VIew

Cubic Ft./Liters

* Based on ANSI/AHAM HRF-1-2004

One year warranty on all parts

and laborand an additional 4
year warranty on compressor.

24/680

WARRANTY

(U.S.A. only)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

KCL

Model Elevation Right Plan 3D Back

TM-24-2 TFEY31E TFEY31S TFEY03P TFEY313
