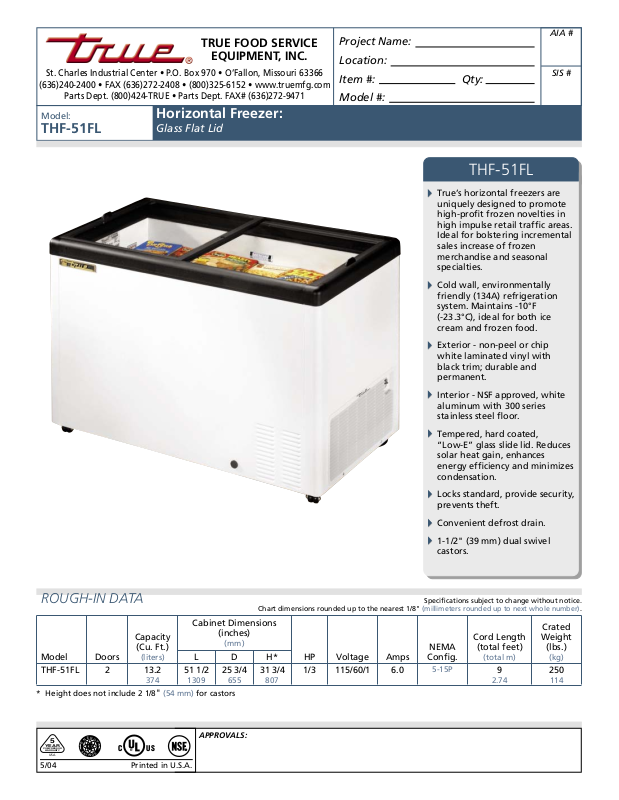

True THF-51FL User Manual
TRUE FOOD SERVICE
EQUIPMENT, INC.
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
(636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# (636)272-9471
Model:
THF-51FL
Horizontal Freezer:
Glass Flat Lid
Project Name:
Location:
Item #: Qty:
Model #:
THF-51FL
True’s horizontal freezers are
uniquely designed to promote
high-profi t frozen novelties in
high impulse retail traffi c areas.
Ideal for bolstering incremental
sales increase of frozen
merchandise and seasonal
specialties.
Cold wall, environmentally
friendly (134A) refrigeration
system. Maintains -10°F
(-23.3°C), ideal for both ice
cream and frozen food.
AIA #
SIS #
ROUGH-IN DATA
Cabinet Dimensions
Capacity
(Cu. Ft.)
Model Doors
THF-51FL 2 13.2
* Height does not include 2 1/8" (54 mm) for castors
(liters)
374
51 1/2
1309
(inches)
(mm)
LDH*
25 3/4
655
Chart dimensions rounded up to the nearest 1/8"
HP Voltage Amps
31 3/4
807
1/3 115/60/1 6.0
Exterior - non-peel or chip
white laminated vinyl with
black trim; durable and
permanent.
Interior - NSF approved, white
aluminum with 300 series
stainless steel fl oor.
Tempered, hard coated,
“Low-E” glass slide lid. Reduces
solar heat gain, enhances
energy effi ciency and minimizes
condensation.
Locks standard, provide security,
prevents theft.
Convenient defrost drain.
1-1/2" (39 mm) dual swivel
castors.
Specifi cations subject to change without notice.
(millimeters rounded up to next whole number).
Crated
Weight
(lbs.)
(kg)
250
114
NEMA
Confi g.
5-15P
Cord Length
(total feet)
(total m)
9
2.74
YEAR
COMPRESSOR
WARRANTY
5/04
R
E
G
N
5
USA
Y
E
S
S
A
S
V
I
G
N
®
C US
Printed in U.S.A.
APPROVALS:
R
Model:
THF-51FL
Horizontal Freezer:
Glass Flat Lid
STANDARD FEATURES
DESIGN
• True’s horizontal freezers are
uniquely designed to promote
high-profi t frozen products in high
impulse retail traffi c areas. Ideal
for bolstering incremental sales
increases for frozen merchandise
and seasonal specialties.
REFRIGERATION SYSTEM
• Factory engineered self-contained,
capillary tube system using
environmentally friendly (CFC
free) 134A refrigerant.
• Cold wall refrigeration system
maintains -10˚F (-23.3˚C) cabinet
temperature, ideal for both ice
cream and frozen food.
• Condensing unit is accessed from
behind grill on right side; slides
out for easy maintenance.
• Manual defrost system; convenient
drain located on front of cabinet.
CABINET CONSTRUCTION
• Exterior - long lasting and
permanent 10 mil white vinyl
laminate with black trim.
• Interior - attractive, NSF approved,
white aluminum liner; non-rust,
peel or chip. 300 series stainless
steel fl oor.
• Insulation - entire cabinet
structure is foamed-in-place
using high density, CFC free,
polyurethane insulation.
• 1-1/2" (39 mm) diameter dual
swivel castors permit easy
placement.
GLASS SLIDE LIDS
• “Low-E”, single pane thermal
glass door assembly. The latest
in energy effi cient technology;
reduces solar heat gain and
minimizes condensation.
• Designed for convenient access,
fast service and attractive display.
• Door locks standard.
MODEL FEATURES
• Self-contained, portable system.
No plumbing required.
• Low profi le design permits easier
placement, saves aisle space.
ELECTRICAL
• Unit completely pre-wired at
factory and ready for fi nal
connection to a 115/60/1 phase 15 amp dedicated outlet. Cord and
plug set included.
115/60/1
NEMA-5-15R
OPTIONAL FEATURES/ACCESSORIES
❒ Black vinyl exterior (no extra
charge).
❒ Heavy duty PVC coated wire
baskets (accommodates 4).
PLAN VIEW
511/
2
"
(1309 mm)
313/
4
"
(807 mm)
3313/
16
"
(859 mm)
21/
16
FRONT VIEW
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
"
(53 mm)
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • (636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
253/
4
"
(655 mm)
SIDE VIEW
KCL
2019/
(524 mm)
4611/
32
"
(1178 mm)
TOP VIEW
Model Front Side Plan 3D
THF-51FL
32
"
