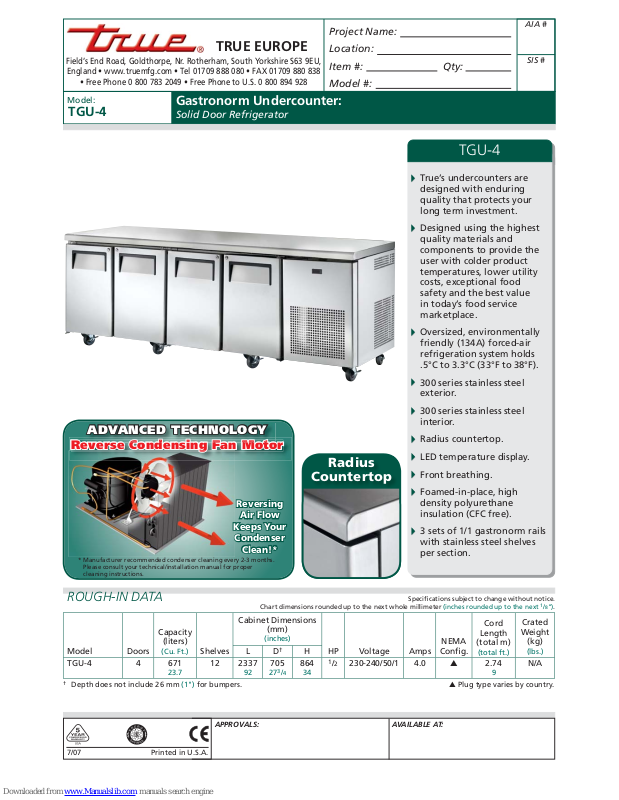

True TGU-4 Specifications

Specifi cations subject to change without notice.

Chart dimensions rounded up to the next whole millimeter

(inches rounded up to the next 1/8").

ROUGH-IN DATA

Field’s End Road, Goldthorpe, Nr. Rotherham, South Yorkshire S63 9EU,

England • www.truemfg.com • Tel [phone] • FAX [phone]

• Free Phone [phone] • Free Phone to U.S. 0 800 894 928

Model:

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

APPROVALS:

Printed in U.S.A.

TRUE EUROPE

AVAILABLE AT:

TGU-4

TGU-4

†

Depth does not include 26 mm (1") for bumpers. ▲ Plug type varies by country.

Gastronorm Undercounter:

Solid Door Refrigerator

7/07

True’s undercounters are
designed with enduring
quality that protects your
long term investment.

Designed using the highest
quality materials and
components to provide the
user with colder product
temperatures, lower utility
costs, exceptional food
safety and the best value
in today’s food service
marketplace.

Oversized, environmentally
friendly (134A) forced-air
refrigeration system holds
.5°C to 3.3°C (33°F to 38°F).

300 series stainless steel
exterior.

300 series stainless steel
interior.

Radius countertop.

LED temperature display.

Front breathing.

Foamed-in-place, high
density polyurethane
insulation (CFC free).

3 sets of 1/1 gastronorm rails
with stainless steel shelves
per section.

Model Doors

Capacity

(liters)

(Cu. Ft.)

Shelves

Cabinet Dimensions

(mm)

(inches)

LD†H

HP Voltage Amps

NEMA

Confi g.

Cord

Length

(total m)

(total ft.)

Crated

Weight

(kg)

(lbs.)

TGU-4 4 671

23.7

12 233792705

273/4

864

34

1

/2 230-240/50/1 4.0

▲

2.74

9

N/A

Radius

Countertop

Reverse Condensing Fan Motor

ADVANCED TECHNOLOGY

ADVANCED TECHNOLOGY

* Manufacturer recommended condenser cleaning every 2-3 months.
Please consult your technical/installation manual for proper
cleaning instructions.

Reversing

Reversing

Air Flow

Air Flow

Keeps Your

Keeps Your

Condenser

Condenser

Clean!*

Clean!*

STANDARD FEATURES

Model:

TRUE EUROPE

Field’s End Road, Goldthorpe, Nr. Rotherham, South Yorkshire S63 9EU, England • 01709 888 080 • FAX [phone] • Free Phone [phone] • Free Phone to U.S. 0 800 894 928 • www.truemfg.com

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

Model Elevation Right Plan 3D

PLAN VIEW

KCL

TGU-4

TGU-4

DESIGN

• True’s commitment to using the
highest quality materials and
oversized refrigeration systems
provides the user with colder
product temperatures, lower
utility costs, exceptional food
safety and the best value in
today’s food service marketplace.

REFRIGERATION SYSTEM

• Factory engineered, self­contained, capillary tube system
using environmentally friendly
(CFC free) R134A refrigerant.

• Oversized, factory balanced
refrigeration system with guided
airfl ow to provide uniform
product temperature.

• Extra large evaporator coil
balanced with higher horsepower
compressor and large condenser;
maintains cabinet temperature
of .5°C to 3.3°C (33°F to 38°F) for
the best in food preservation.

• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and
larger fan blades give True
undercounter units a more
effi cient low velocity, high
volume airfl ow design. This
unique design ensures faster
temperature recovery and
shorter run times in the busiest
of food service environments.

CABINET CONSTRUCTION

• Exterior - 300 series stainless
steel.

• Interior - 300 series stainless steel.

• Countertop - stainless steel radius
front.

• Insulation - entire cabinet
structure and solid doors are
foamed-in-place using high
density, CFC free, polyurethane
insulation.

• 102 mm (4") diameter stem
castors - locks provided on front
set. 864 mm (34") work surface
height.

DOORS

• Stainless steel.

• Positive seal self-closing doors
with 90° stay open feature.
Doors swing within cabinet
dimensions.

• Each door fi tted with 305 mm
(12") long recessed handle
that is foamed-in-place with a
sheet metal interlock to ensure
permanent attachment.

• Magnetic door gaskets of one
piece construction, removable
without tools for ease of
cleaning.

SHELVING

• Three (3) sets of 1/1 gastronorm
rails per section.

• Three (3) stainless steel shelves
328 mm L x 534 mm D (127/8" x
21") per section.

MODEL FEATURES

• Evaporator is epoxy coated
to eliminate the potential of
corrosion.

• Self-contained condensate pan.
No need for external drain.

ELECTRICAL

• Unit completely pre-wired at
factory and ready for fi nal
connection to a 230-240/50/1
phase dedicated outlet. Cord
and plug set included.

• Plug type varies by country.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❒ 64 mm (21/2") diameter castors.
❒ 153 mm (6") standard legs

(requires leg mounting plates).

❒ 153 mm (6") seismic/fl anged legs

(requires leg mounting plates).

Gastronorm Undercounter:

Solid Door Refrigerator

ELEVATION

RIGHT VIEW

1119 mm

(441/32")

705 mm

(273/4")

26 mm

(1")

67 mm

(25/8")

61 mm

(23/8")

2337 mm

(92")

737 mm

(29")

864 mm

(34")

229 mm

(9")

610 mm

(24")

102 mm

(4")

127 mm

(5")

392 mm

(1513/32")
