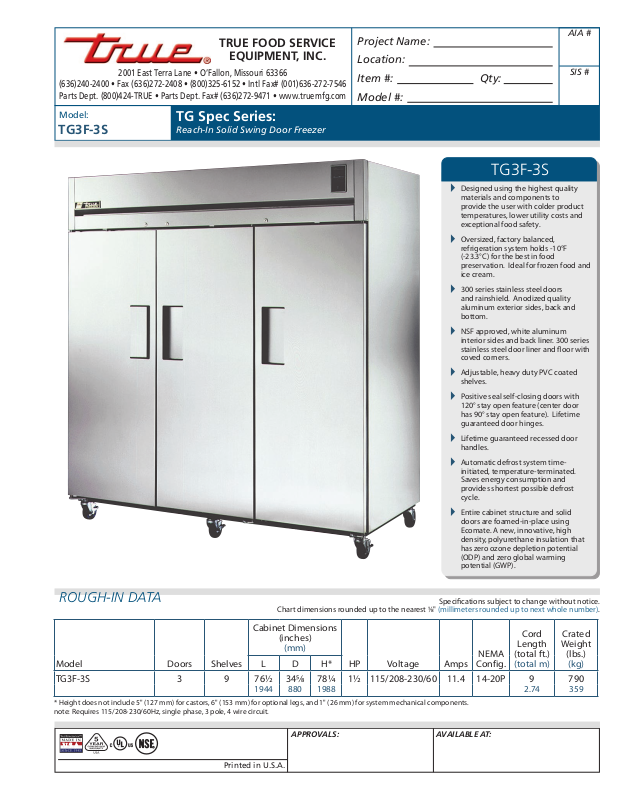

True TG3F-3S User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TG3F-3S

TG Spec Series:

Reach-In Solid Swing Door Freezer

TG3F-3S

Designed using the highest quality



materials and components to
provide the user with colder product
temperatures, lower utility costs and
exceptional food safety.

Oversized, factory balanced,



refrigeration system holds -10°F
(-23.3°C) for the best in food
preservation. Ideal for frozen food and
ice cream.

300 series stainless steel doors



and rainshield. Anodized quality
aluminum exterior sides, back and
bottom.

NSF approved, white aluminum



interior sides and back liner. 300 series
stainless steel door liner and oor with
coved corners.

Adjustable, heavy duty PVC coated



shelves.

Positive seal self-closing doors with



120° stay open feature (center door
has 90° stay open feature). Lifetime
guaranteed door hinges.

Lifetime guaranteed recessed door



handles.

Automatic defrost system time-



initiated, temperature-terminated.
Saves energy consumption and
provides shortest possible defrost
cycle.

Entire cabinet structure and solid



doors are foamed-in-place using
Ecomate. A new, innovative, high
density, polyurethane insulation that
has zero ozone depletion potential
(ODP) and zero global warming
potential (GWP).

Rough-In Data

Model Doors Shelves

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)L D H*

TG3F-3S 3 9 76½ 34⁄ 78¼ 1½ 115/208-230/60 11.4 14-20P 9 790

1944 880 1988 2.74 359

* Height does not include 5" (127 mm) for castors, 6" (153 mm) for optional legs, and 1" (26 mm) for system mechanical components.
note: Requires 115/208-230/60Hz, single phase, 3 pole, 4 wire circuit.

ApprovAls: AvAilAble At:

Printed in U.S.A.

Model:

TG3F-3S

TG Spec Series:

Reach-In Solid Swing Door Freezer

StanDaRD FeatuReS

DESIGN

True’s solid door reach-in’s are designed with enduring

•

quality that protects your long term investment.
Designed using the highest quality materials and

•

components to provide the user with colder product
temperatures, lower utility costs and exceptional food
safety.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary tube

•

system using environmentally friendly (CFC free) 404A
refrigerant.
Extra large evaporator coil balanced with higher

•

horsepower compressor and large condenser
maintains -10°F (-23.3°C) cabinet temperature. Ideal
for both frozen foods and ice cream.
Sealed, cast iron, self-lubricating evaporator fan

•

motor(s) and larger fan blades give True reach-in’s
a more ecient low velocity, high volume airow
design. This unique design ensures faster temperature
recovery and shorter run times in the busiest of
foodservice environments.
Top mounted refrigeration system with evaporator

•

positioned out of food zone to maximize capacity.
Automatic defrost system time-initiated, temperature-

•

terminated. Saves energy consumption and provides
shortest possible defrost cycle.
Automatic evaporator fan motor delay during defrost

•

cycle.

CABINET CONSTRUCTION

Exterior - 300 series stainless steel doors and rainshield.

•

Anodized quality aluminum sides, back and bottom.
Interior - NSF approved white aluminum side walls

•

and back liner. 300 series stainless oor with coved
corners.
Insulation - entire cabinet structure and solid doors

•

are foamed-in-place using Ecomate. A new, innovative,
high density, polyurethane insulation that has zero
ozone depletion potential (ODP) and zero global
warming potential (GWP).
Welded, heavy duty steel frame rail, black powder

•

coated for corrosion protection.
Frame rail tted with 4" (102 mm) diameter stem

•

castors - locks provided on front set.

DOORS

300 series stainless steel exterior and liners. Doors

•

open within cabinet dimension.
Door locks standard.

•

Lifetime guaranteed recessed door handles. Each door

•

tted with 12" (305 mm) long recessed handle that is
foamed-in-place with a sheet metal interlock to ensure
permanent attachment.
Positive seal self-closing doors with 120° stay open

•

feature (center door has 90° stay open feature).
Lifetime guaranteed door hinges.
Magnetic door gaskets of one piece construction,

•

removable without tools for ease of cleaning.

SHELVING

Nine (9) adjustable, heavy duty PVC coated wire

•

shelves. Three (3) right and three (3) left door shelf
dimensions are 23½"L x 27 ¾"D (597 mm x 705 mm).
Three (3) center door shelf dimensions are 25"L x
27¾"D (635 mm x 705 mm). Four (4) shelf supports
included per shelf. Shelves adjustable on 6" (153 mm)
increments.
Four (4) dierent interior kits available (see Kit

•

Options). Pilasters and tray slides require eld
installation.

LIGHTING

Incandescent interior lighting - lights activated by

•

rocker switch mounted above door(s), safety shielded.

MODEL FEATURES

Exterior digital temperature display, available with

•

either °F or °C .
Evaporator epoxy coated to eliminate the potential of

•

corrosion.
Backguard improves airow.

•

Minimum wattage heater in cabinet frame and door.

•

NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and ready for

•

nal connection to a 115/208-230/60/1 phase, 3 pole,
4 wire, 20 amp dedicated outlet. Cord and plug set
included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

6" (153 mm) standard legs. ❑
6" (153 mm) seismic/anged legs. ❑
6" (153 mm) stainless steel legs. ❑
Stainless steel rail skirt for use with legs (eld installed). ❑
Metal door handles (factory installed). ❑
Novelty baskets. ❑
Additional shelves. ❑
Electronic temperature control (factory installed). ❑
Correctional facilities options. ❑
Curb mountable units. ❑
Remote cabinets (condensing unit supplied by others; ❑
system comes standard with 404A expansion valve
and requires R404A refrigerant). Consult factory
technical service department for BTU information. All
remote units must be hard wired during installation.

KIT OPTIONS

Upcharge applies. Lead time may apply.

Kit #1: Nine (9) sets of #1 type tray slides and pilasters ❑
(eld installed), bottom support of one (1) 18"L x 26"D
(458 mm x 661 mm) pan or two (2) 14"L x 18"D (356
mm x 458 mm) pans.
Kit #2: One (1) set half-section #2 steel rod tray slides ❑
and pilasters (eld installed), rim support of one (1)
18"L x 26"D (458 mm x 661 mm) pan.
Kit #3: Six (6) sets of universal type tray slides and ❑
pilasters (eld installed), bottom support of one (1)
18"L x 26"D (458 mm x 661 mm) pan, two (2) 14"L x
18"D (356 mm x 458 mm) pans or two (2) 12"L x 20"D
(305 mm x 508 mm) pans.
Kit #4: Three (3) chrome shelves. Right and left door ❑
shelf dimensions are 23½"L x 27 ¾"D (597 mm x 705
mm). Center door shelf dimensions are 25"L x 27 3/4"D
(635 mm x 705 mm). Four (4) shelf supports included
per shelf (eld installed); adjustable on 6" (153 mm)
increments. Optional wall mounted shelf support
pilasters (eld installed) with four (4) shelf clips per
shelf available; adjustable on½" (13 mm) increments
(must order at time of cabinet order).
Additional kit option components available ❑
individually.

Plan VIew

CUBIC FEET

* Based on ANSI/AHAM HRF-1-2004

One year warranty on all parts

and labor and an additional 4
year warranty on compressor.

85

WARRANTY

(U.S.A. only)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

KCL

Model Elevation Right Plan 3D Back

TG3F-3S TFQY57E TFQY57S TFQY57P TFQY573
