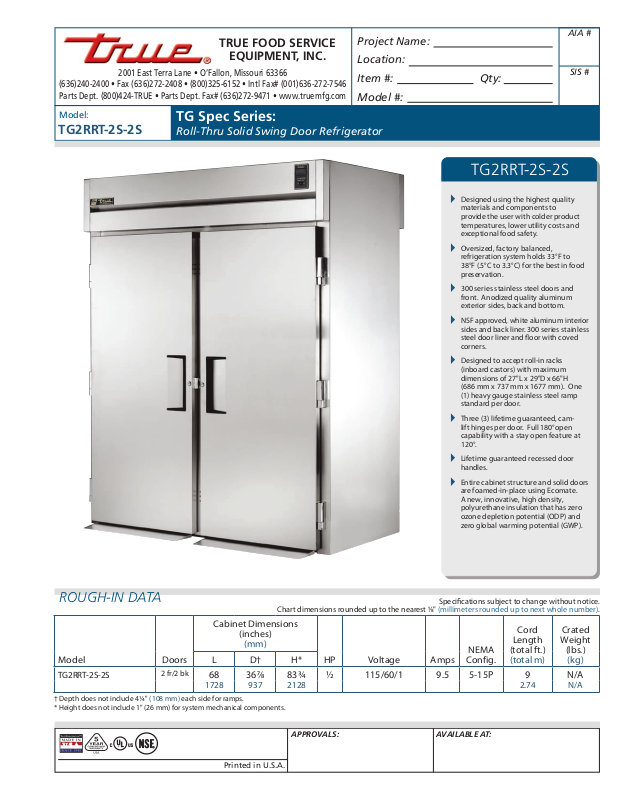

True TG2RRT-2S-2S User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TG2RRT-2S-2S

TG Spec Series:

Roll-Thru Solid Swing Door Refrigerator

TG2RRT-2S-2S

Designed using the highest quality



materials and components to
provide the user with colder product
temperatures, lower utility costs and
exceptional food safety.

Oversized, factory balanced,



refrigeration system holds 33°F to
38°F (.5°C to 3.3°C) for the best in food
preservation.

300 series stainless steel doors and



front. Anodized quality aluminum
exterior sides, back and bottom.

NSF approved, white aluminum interior



sides and back liner. 300 series stainless
steel door liner and oor with coved
corners.

Designed to accept roll-in racks



(inboard castors) with maximum
dimensions of 27"L x 29"D x 66"H
(686 mm x 737 mm x 1677 mm). One
(1) heavy gauge stainless steel ramp
standard per door.

Three (3) lifetime guaranteed, cam-



lift hinges per door. Full 180°open
capability with a stay open feature at
120°.

Lifetime guaranteed recessed door



handles.

Entire cabinet structure and solid doors



are foamed-in-place using Ecomate.
A new, innovative, high density,
polyurethane insulation that has zero
ozone depletion potential (ODP) and
zero global warming potential (GWP).

Rough-In Data

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

Model Doors

TG2RRT-2S-2S

† Depth does not include 4¼" (108 mm) each side for ramps.
* Height does not include 1" (26 mm) for system mechanical components.

2 fr/2 bk

68 36⁄ 83¾ ½ 115/60/1 9.5 5-15P 9 N/A

1728 937 2128 2.74 N/A

Printed in U.S.A.

Specications subject to change without notice.

NEMA

HP Voltage Amps

ApprovAls: AvAilAble At:

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)L D† H*

Model:

TG2RRT-2S-2S

TG Spec Series:

Roll-Thru Solid Swing Door Refrigerator

StanDaRD FeatuReS

DESIGN

True’s solid door roll-thru’s are designed with

•

enduring quality that protects your long term
investment.
Designed using the highest quality materials

•

and components to provide the user with
colder product temperatures, lower utility costs
and exceptional food safety.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) 134A refrigerant.
Extra large evaporator coil balanced with

•

higher horsepower compressor and large
condenser maintains cabinet temperatures of
33°F to 38°F (.5°C to 3.3°C) for the best in food
preservation.
Sealed, cast iron, self-lubricating evaporator

•

fan motor(s) and larger fan blades give True
roll-thru’s a more ecient low velocity, high
volume airow design. This unique design
ensures faster temperature recovery and
shorter run times in the busiest of foodservice
environments.
Top mounted refrigeration system with

•

evaporator positioned out of food zone to
maximize capacity.
Hot gas condensate for energy eciency.

•

CABINET CONSTRUCTION

Exterior - 300 series stainless steel doors and

•

rainshield. Anodized quality aluminum sides
and bottom.
Interior - NSF approved white aluminum side

•

walls and back liner. 300 series stainless oor
with coved corners.
Insulation - entire cabinet structure and solid

•

doors are foamed-in-place using Ecomate. A
new, innovative, high density, polyurethane
insulation that has zero ozone depletion
potential (ODP) and zero global warming
potential (GWP).

Four (4) heavy gauge stainless steel ramps(one

•

per door).
Designed to accept roll-in racks (inboard

•

castors) with maximum dimensions of 27"L x
29"D x 66"H (686 mm x 737 mm x 1677 mm).

DOORS

300 series stainless steel exterior and liners.

•

Doors open within cabinet dimension.
Door locks standard.

•

Lifetime guaranteed recessed door handles.

•

Each door tted with 12" (305 mm) long
recessed handle that is foamed-in-place with
a sheet metal interlock to ensure permanent
attachment.
Three (3) lifetime guaranteed, cam-lift hinges

•

per door. Full 180°open capability with a stay
open feature at 120°.
Magnetic door gasket(s) of one piece

•

construction, removable without tools for ease
of cleaning.
Wiper gaskets for postitive seal, reversible.

•

Doors are eld reversible.

•

LIGHTING

Incandescent interior lighting, safety shielded.

•

MODEL FEATURES

Exterior digital temperature display, available

•

with either°F or°C .
Evaporator epoxy coated to eliminate the

•

potential of corrosion
Interior bumpers protect cabinet walls from

•

abuse caused by roll-in carts.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1 phase,
15 amp dedicated outlet. Cord and plug set
included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

Metal door handle(s) (factory installed). ❑
Electronic temperature control (factory ❑
installed).
Correctional facilities options. ❑
Remote cabinets (condensing unit supplied ❑
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical service
department for BTU information. All remote
units must be hard wired during installation.

Plan VIew

CUBIC FEET

* Based on ANSI/AHAM HRF-1-2004

One year warranty on all parts

and labor and an additional 4
year warranty on compressor.

75

WARRANTY

(U.S.A. only)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

KCL

Model Elevation Right Plan 3D Back

TG2RRT-2S-2S TFQY55E TFQY82S TFQY98P TFQZ423
