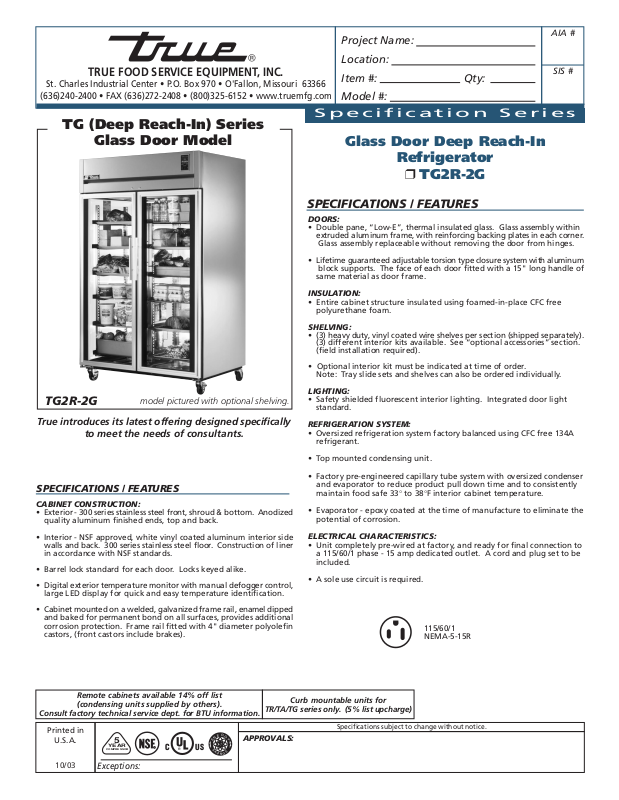

True TG2R-2G User Manual
TRUE FOOD SERVICE EQUIPMENT, INC.
St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366
(636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
Specification Series
TG (Deep Reach-In) Series
Glass Door Model
SPECIFICATIONS / FEATURES
DOORS:
• Double pane, “Low-E”, thermal insulated glass. Glass assembly within
extruded aluminum frame, with reinforcing backing plates in each corner.
Glass assembly replaceable without removing the door from hinges.
• Lifetime guaranteed adjustable torsion type closure system with aluminum
block supports. The face of each door fitted with a 15" long handle of
same material as door frame.
INSULATION:
• Entire cabinet structure insulated using foamed-in-place CFC free
polyurethane foam.
SHELVING:
• (3) heavy duty, vinyl coated wire shelves per section (shipped separately).
(3) different interior kits available. See “optional accessories” section.
(field installation required).
• Optional interior kit must be indicated at time of order.
Note: Tray slide sets and shelves can also be ordered individually.
LIGHTING:
TG2R-2G
model pictured with optional shelving.
True introduces its latest offering designed specifically
to meet the needs of consultants.
• Safety shielded fluorescent interior lighting. Integrated door light
standard.
REFRIGERATION SYSTEM:
• Oversized refrigeration system factory balanced using CFC free 134A
refrigerant.
Project Name:
Location:
Item #: Qty:
Model #:
Glass Door Deep Reach-In
Refrigerator
❒ TG2R-2G
AIA #
SIS #
SPECIFICATIONS / FEATURES
CABINET CONSTRUCTION:
• Exterior - 300 series stainless steel front, shroud & bottom. Anodized
quality aluminum finished ends, top and back.
• Interior - NSF approved, white vinyl coated aluminum interior side
walls and back. 300 series stainless steel floor. Construction of liner
in accordance with NSF standards.
• Barrel lock standard for each door. Locks keyed alike.
• Digital exterior temperature monitor with manual defogger control,
large LED display for quick and easy temperature identification.
• Cabinet mounted on a welded, galvanized frame rail, enamel dipped
and baked for permanent bond on all surfaces, provides additional
corrosion protection. Frame rail fitted with 4" diameter polyolefin
castors, (front castors include brakes).
Remote cabinets available 14% off list
Consult factory technical service dept. for BTU information.
(condensing units supplied by others).
Printed in
U.S.A.
10/03
5
YEAR
COMPRESSOR
Exceptions:
R
C US
®
R
E
G
N
Y
E
S
S
A
S
V
I
G
N
TR/TA/TG series only. (5% list upcharge)
APPROVALS:
• Top mounted condensing unit.
• Factory pre-engineered capillary tube system with oversized condenser
and evaporator to reduce product pull down time and to consistently
maintain food safe 33° to 38°F interior cabinet temperature.
• Evaporator - epoxy coated at the time of manufacture to eliminate the
potential of corrosion.
ELECTRICAL CHARACTERISTICS:
• Unit completely pre-wired at factory, and ready for final connection to
a 115/60/1 phase - 15 amp dedicated outlet. A cord and plug set to be
included.
• A sole use circuit is required.
115/60/1
NEMA-5-15R
Curb mountable units for
Specifications subject to change without notice.
63
TG-Series: Deep Reach-In Refrigerator (glass doors)
35
3
51
/
8
"
12
®
9
/
16
"
L - 131 cm
D - 89 cm
H - 199 cm
Door
3
/
8
"
77"
83
1
/
4
Swing - 61 cm
34
23
3
/
4
"
3
58
/
8
"
5
/
8
"
5"
1
1
/
4
"
Rough-In Data
Dimensions Cord
Capacity (inches) NEMA Length Crated
Model Doors (Cu. Ft) L D† H* HP Volts PH Amps Config. (feet) Weight
TG2R-2G 2 56 51 3/8 34 3/4 78 1/4 1/2 115 1 11.4 5-15 9 710
* Height does not include 5” for castors or 6” for optional legs.
† Depth does not include 1 3/8” for glass door handle.
Specifications subject to change without notice.
Standard Features ____________________________________________________________________________________________
• Oversized and balanced, environmentally
friendly 134A refrigeration system - holds
food safe 33°F to 38°F.
• Exterior - 300 series stainless steel front
& bottom. Anodized quality aluminum
finished ends, back & top.
• Interior - NSF approved, white vinyl coated
aluminum sides. 300 series stainless floor.
• Double pane, “Low-E” thermal insulated
glass doors.
• Door locks standard.
• Exterior mounted digital electronic
thermometer with manual defogger.
• Fluorescent interior lighting; patented,
integrated door light (IDL) standard.
• Wide door openings.
• Glass condensate pan to prevent
electrolysis.
• (3) heavy duty, vinyl coated shelves per
section (shipped separately) (3) different
interior kits available. Kit selection must
be indicated at time of order.
(field installation required).
• Magnetic door gaskets.
• Epoxy coated evaporator.
• 4" diameter swivel castors standard
equipment - locking castors provided for
front set.
• Hot gas condensate for energy efficiency.
• Positive seal self-closing doors with
factory tested (over 1,000,000 times)
lifetime guaranteed door hinges and
torsion type closure system.
• Extruded aluminum door frames.
• Foamed-in-place polyurethane high
density cell insulation (CFC free).
• Top mounted unit positioned out of food
zone to maximize storage capacity.
• Self-contained system.
• 1 year parts & labor warranty (USA).
• 5 year compressor warranty (USA).
Optional Accessories ______________
❒ 6" stainless steel legs.
❒ Seismic/Flanged legs.
❒ Kit #1 (9 sets of #1 type tray slides).
❒ Kit #2 (rod type 1 set covers 1/2 section).
❒ Kit #3 (6 sets of universal type tray slides).
❒ Kit #4 (3 chrome shelves and shelf supports)
❒ Stainless steel (electro polished) shelves.
❒ Chrome shelves.
❒ Electronic temperature control.
❒ Universal pan slides.
❒ #1 pan slides.
❒ #2 or rod style pan slides.
❒ Curb mountable units.
❒ Export units available - consult factory.
❒ Correctional facility options - consult factory.
❒ Remote cabinets available (contact factory
technical services for BTU information).
KCL
Model Front Right Plan 3D
TG2R-2G TFQY99E TFQY99S TFQY99P TFQY993
YEAR
COMPRESSOR
R
E
G
N
Y
5
R
C US
E
S
S
®
A
S
V
I
G
N
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366 • (636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
Printed in U.S.A.
