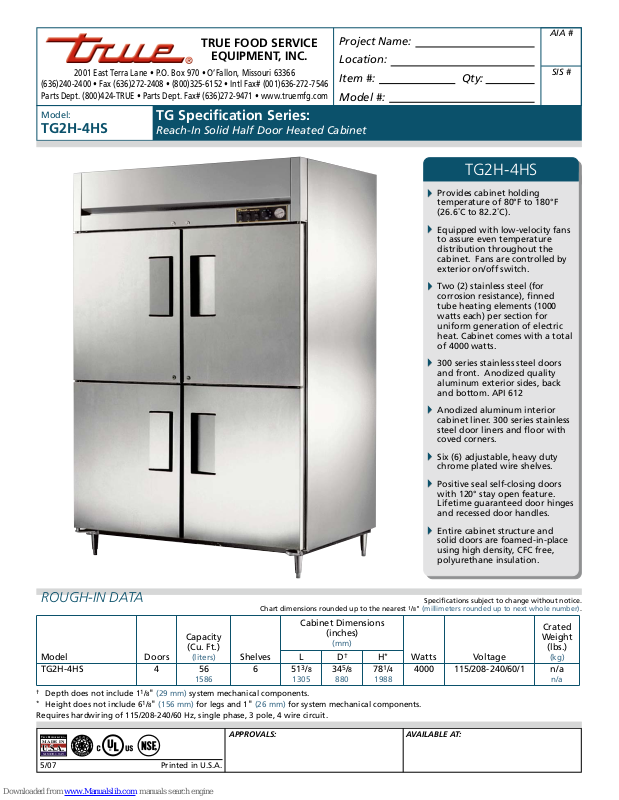

True TG2H-4HS Specifications

TRUE FOOD SERVICE

.S.A.

EQUIPMENT, INC.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TG2H-4HS

TG Specifi cation Series:

Reach-In Solid Half Door Heated Cabinet

TG2H-4HS

Provides cabinet holding
temperature of 80°F to 180°F
(26.6˚C to 82.2˚C).

Equipped with low-velocity fans
to assure even temperature
distribution throughout the
cabinet. Fans are controlled by
exterior on/off switch.

Two (2) stainless steel (for
corrosion resistance), fi nned
tube heating elements (1000
watts each) per section for
uniform generation of electric
heat. Cabinet comes with a total
of 4000 watts.

300 series stainless steel doors
and front. Anodized quality
aluminum exterior sides, back
and bottom. API 612

Anodized aluminum interior
cabinet liner. 300 series stainless
steel door liners and fl oor with
coved corners.

Six (6) adjustable, heavy duty
chrome plated wire shelves.

Positive seal self-closing doors
with 120° stay open feature.
Lifetime guaranteed door hinges
and recessed door handles.

Entire cabinet structure and
solid doors are foamed-in-place
using high density, CFC free,
polyurethane insulation.

ROUGH-IN DATA

Capacity

Model Doors
TG2H-4HS 4 56

†

Depth does not include 11/8" (29 mm) system mechanical components.

*

Height does not include 61/8" (156 mm) for legs and 1" (26 mm) for system mechanical components.

Requires hardwiring of 115/208-240/60 Hz, single phase, 3 pole, 4 wire circuit.

T

RUE

R

EFRIGERATION

TM

MADE IN

U.S.A.

U.S.A.

SINCE 1945

5/07

®

R

(Cu. Ft.)

(liters) Shelves

1586

Printed in U.S.A.

Specifi cations subject to change without notice.

1

Chart dimensions rounded up to the nearest

/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

LD†H

651

APPROVALS: AVAILABLE AT:

3

1305

/8

345/8

880

*

781/4

1988

Watts Voltage

4000 115/208-240/60/1 n/a

Crated

Weight

(lbs.)

(kg)

n/a

Model:

TG2H-4HS

TG Specifi cation Series:

Reach-In Solid Half Door Heated Cabinet

STANDARD FEATURES

DESIGN

• True’s solid door reach-in heated cabinets
are designed with enduring quality that
protects your long term investment.

HEATER SYSTEM

• Cabinet designed to provide holding
temperatures of 80°F to 180°F (26.6°C to

82.2°C). Heating system controlled by
exterior on/off switch and temperature
control dial.

• Two (2) stainless steel (for corrosion
resistance), fi nned tube heating elements
(1000 watts each) per section for uniform
generation of electric heat. Cabinet comes
with a total of 4000 watts.

• Equipped with low-velocity fans to assure
even temperature distribution throughout
the cabinet. Fans are controlled by
exterior on/off switch.

• Manually controlled vent located on
top of the cabinet for positive humidity
control.

• 12" x 20" (305 mm x 508 mm) pan for
water included, if additional humidity
required.

CABINET CONSTRUCTION

• Exterior - 300 series stainless steel
doors and rainshield. Anodized quality
aluminum sides, back and bottom.

• Interior - NSF approved anodized
aluminum side walls and back liner. 300
series stainless fl oor with coved corners.

• Insulation - entire cabinet structure and
solid doors are foamed-in-place using high
density, CFC free, polyurethane insulation.

• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.

• Frame rail fi tted with 6" (153 mm)
stainless steel legs.

PLAN VIEW

FEED WIRE LOCATION

DOORS

• 300 series stainless steel exterior and
liners. Doors open within cabinet
dimension.

• Door locks standard.

• Lifetime guaranteed recessed door
handles. Each door fi tted with 12"
(305 mm) long recessed handle that
is foamed-in-place with a sheet
metal interlock to ensure permanent
attachment.

• Positive seal self-closing doors with 120°
stay open feature. Lifetime guaranteed
door hinges.

• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.

SHELVING

• Six (6) chrome shelves 231/2" x 273/4"
(597 mm x 705 mm) with shelf clips and
wall mounted pilasters (fi eld installed).

1

1

/16" (27 mm) standoff ensures optimum

airfl ow.

• Aluminum shelf support pilasters. Shelves
are adjustable on

1

/2" (13 mm) increments.

• Three (3) different interior kits available
(see Kit Options). Pilasters and tray slides
require fi eld installation.

LIGHTING

• Incandescent interior lighting - lights
activated by exterior on/off switch, safety
shielded.

MODEL FEATURES

• Exterior, color coded, dial thermometer;
accurate direct reading of internal cabinet
temperature.

• Designed to hold warm baked or cooked
food. Cabinet is not designed to heat
ambient or cold product.

1"

(26 mm)

• NSF-4 compliant for open food product.

ELECTRICAL

• True requires that a sole use circuit be
dedicated for the unit.

• Unit comes with 4 feed wires (including
ground) to be hardwired at installation
site to a 115/208-240/60 Hz. single phase,
20 amp dedicated outlet.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❒ Seismic/fl anged legs.
❒ Stainless steel rail skirt (fi eld installed).
❒ Additional shelves.
❒ Stainless steel (electro polished) shelves.
❒ Metal door handles (factory installed).
❒ Electronic temperature control (factory

installed).

❒ Curb mountable units.

KIT OPTIONS

Upcharge applies. Lead times may apply.
❒ Kit #1: Nine (9) sets of #1 type tray slides

and pilasters (fi eld installed), bottom
support of one (1) 18"L x 26"D (458 mm x
661 mm) pan or two (2) 14"L x 18"D
(356 mm x 458 mm) pans.

❒ Kit #2: One (1) set half-section #2 steel rod

tray slides and pilasters (fi eld installed),
rim support of one (1) 18"L x 26"D
(458 mm x 661 mm) pan.

❒ Kit #3: Six (6) sets of universal type tray

slides and pilasters (fi eld installed),
bottom support of one (1) 18"L x 26"D
(458 mm x 661 mm) pan, two (2) 14"L x
18"D (356 mm x 458 mm) pans or two (2)
12"L x 20"D (305 mm x 508 mm) pans.

❒ Additional kit option components

available individually.

ELEVATION

One year warranty on all parts

WARRANTY

and labor (U.S.A. only)

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

77"

(1956 mm)

783/16"

(1986 mm)

13/16"

(31 mm)

WITHOUT NOTICE

851/4"

(2166 mm)

61/16"

(154 mm)

345/8"

(880 mm)

2317/32"

(598 mm)

KCL

Model Elevation Right Plan 3D

TG2H-4HS

FEED
WIRE
LOCATION

TRUE FOOD SERVICE EQUIPMENT

513/8"

(1305 mm)

PLAN VIEW

3521/32"

(906 mm)

11/32"

(27 mm)

585/32"

(1478 mm)
