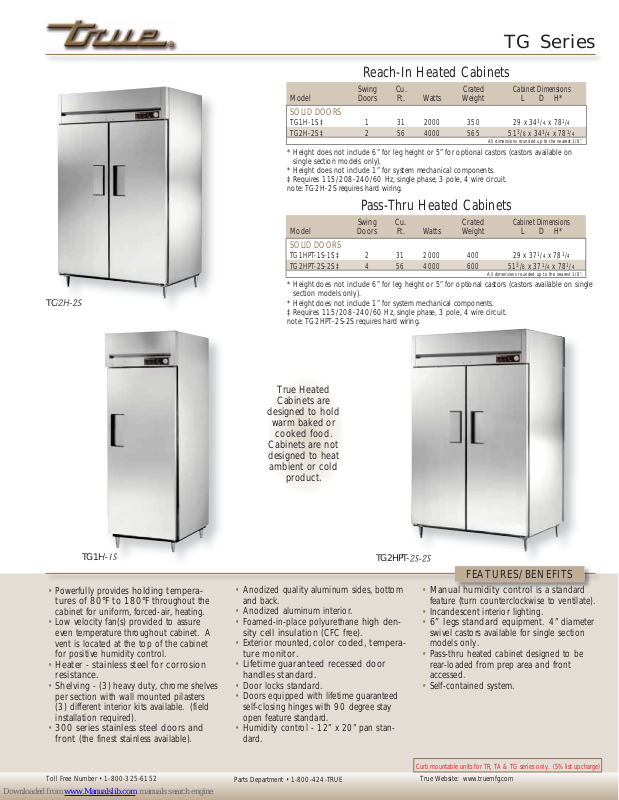

True TG1HPT-1S-1S, TG2H-2S, TG2HPT-2S-2S Specifications
TG2H-2S
TG Series
Reach-In Heated Cabinets
Model
Swing
Doors
Cu.
Ft. Watts
Crated
Weight
SOLID DOORS
TG1H-1S ‡ 1 31 2000 350 29 x 34
TG2H-2S ‡ 2 56 4000 565 513/8 x 34
* Height does not include 6” for leg height or 5” for optional castors (castors available on
single section models only).
* Height does not include 1” for system mechanical components.
‡ Requires 115/208-240/60 Hz, single phase, 3 pole, 4 wire circuit.
note: TG2H-2S requires hard wiring.
Pass-Thru Heated Cabinets
Model
Swing
Doors
SOLID DOORS
TG1HPT-1S-1S ‡ 2 31 2000 400 29 x 37
TG2HPT-2S-2S ‡ 4 56 4000 600 513/8 x 37
* Height does not include 6” for leg height or 5” for optional castors (castors available on single
section models only).
* Height does not include 1” for system mechanical components.
‡ Requires 115/208-240/60 Hz, single phase, 3 pole, 4 wire circuit.
note: TG2HPT-2S-2S requires hard wiring.
Cu.
Ft. Watts
Crated
Weight
Cabinet Dimensions
L D H*
3
1
/
4 x 78
/
4
3
1
/
4 x 78
/
4 x 78
1
/
4 x 78
4
1
/
4
1
/
4
All dimensions rounded up to the nearest 1/8”.
Cabinet Dimensions
L D H*
1
/
All dimensions rounded up to the nearest 1/8”.
TG1H-1S
• Powerfully provides holding tempera-
tures of 80°F to 180°F throughout the
cabinet for uniform, forced-air, heating.
• Low velocity fan(s) provided to assure
even temperature throughout cabinet. A
vent is located at the top of the cabinet
for positive humidity control.
• Heater - stainless steel for corrosion
resistance.
• Shelving - (3) heavy duty, chrome shelves
per section with wall mounted pilasters
(3) different interior kits available. (field
installation required).
• 300 series stainless steel doors and
front (the finest stainless available).
True Heated
Cabinets are
designed to hold
warm baked or
cooked food.
Cabinets are not
designed to heat
ambient or cold
product.
TG2HPT-2S-2S
• Anodized quality aluminum sides, bottom
and back.
• Anodized aluminum interior.
• Foamed-in-place polyurethane high den-
sity cell insulation (CFC free).
• Exterior mounted, color coded, tempera-
ture monitor.
• Lifetime guaranteed recessed door
handles standard.
• Door locks standard.
• Doors equipped with lifetime guaranteed
self-closing hinges with 90 degree stay
open feature standard.
• Humidity control - 12” x 20” pan stan-
dard.
FEATURES/BENEFITS
• Manual humidity control is a standard
feature (turn counterclockwise to ventilate).
• Incandescent interior lighting.
• 6” legs standard equipment. 4” diameter
swivel castors available for single section
models only.
• Pass-thru heated cabinet designed to be
rear-loaded from prep area and front
accessed.
• Self-contained system.
Toll Free Number • 1-800-325-6152
Parts Department • 1-800-424-TRUE
Curb mountable units for TR, TA & TG series only. (5% list upcharge)
True Website: www.truemfg.com
