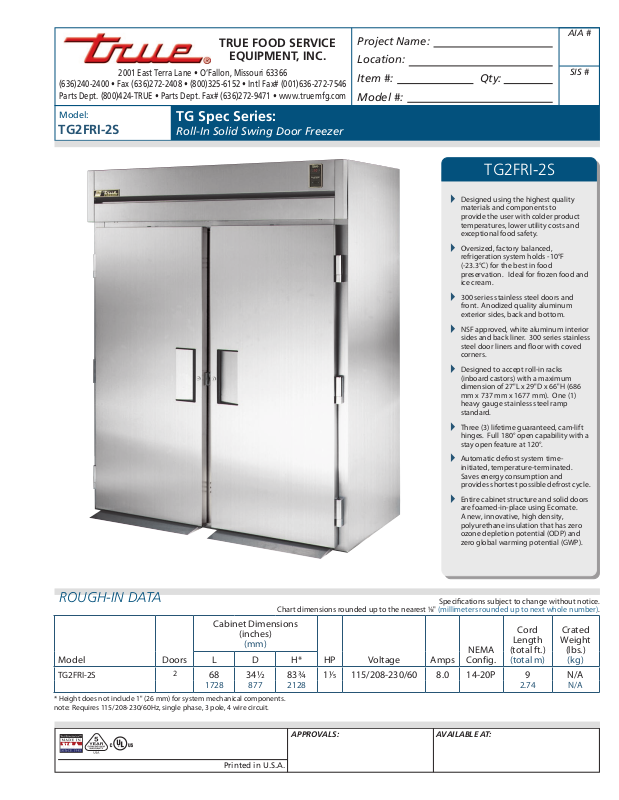

True TG2FRI-2S User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TG2FRI-2S

TG Spec Series:

Roll-In Solid Swing Door Freezer

TG2FRI-2S

Designed using the highest quality



materials and components to
provide the user with colder product
temperatures, lower utility costs and
exceptional food safety.

Oversized, factory balanced,



refrigeration system holds -10°F
(-23.3°C) for the best in food
preservation. Ideal for frozen food and
ice cream.

300 series stainless steel doors and



front. Anodized quality aluminum
exterior sides, back and bottom.

NSF approved, white aluminum interior



sides and back liner. 300 series stainless
steel door liners and oor with coved
corners.

Designed to accept roll-in racks



(inboard castors) with a maximum
dimension of 27"L x 29"D x 66"H (686
mm x 737 mm x 1677 mm). One (1)
heavy gauge stainless steel ramp
standard.

Three (3) lifetime guaranteed, cam-lift



hinges. Full 180° open capability with a
stay open feature at 120°.

Automatic defrost system time-



initiated, temperature-terminated.
Saves energy consumption and
provides shortest possible defrost cycle.

Entire cabinet structure and solid doors



are foamed-in-place using Ecomate.
A new, innovative, high density,
polyurethane insulation that has zero
ozone depletion potential (ODP) and
zero global warming potential (GWP).

Rough-In Data

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

Model Doors

TG2FRI-2S

* Height does not include 1" (26 mm) for system mechanical components.
note: Requires 115/208-230/60Hz, single phase, 3 pole, 4 wire circuit.

2

68 34½ 83¾ 1⁄ 115/208-230/60 8.0 14-20P 9 N/A

1728 877 2128 2.74 N/A

Printed in U.S.A.

Specications subject to change without notice.

NEMA

HP Voltage Amps

ApprovAls: AvAilAble At:

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)L D H*

Model:

TG2FRI-2S

TG Spec Series:

Roll-In Solid Swing Door Freezer

StanDaRD FeatuReS

DESIGN

True’s solid door roll-in’s are designed with

•

enduring quality that protects your long term
investment.
Designed using the highest quality materials

•

and components to provide the user with colder
product temperatures, lower utility costs and
exceptional food safety.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) 404A refrigerant.
Extra large evaporator coil balanced with higher

•

horsepower compressor and large condenser
maintains -10°F (-23.3°C) cabinet temperature.
Ideal for both frozen foods and ice cream.
Sealed, cast iron, self-lubricating evaporator

•

fan motor(s) and larger fan blades give True
roll-in’s a more ecient low velocity, high
volume airow design. This unique design
ensures faster temperature recovery and
shorter run times in the busiest of foodservice
environments.
Top mounted refrigeration system with

•

evaporator positioned out of food zone to
maximize capacity.
Automatic defrost system time-initiated,

•

temperature-terminated. Saves energy
consumption and provides shortest possible
defrost cycle.
Automatic evaporator fan motor delay during

•

defrost cycle.

CABINET CONSTRUCTION

Exterior - 300 series stainless steel doors, and

•

rainshield. Anodized quality aluminum sides,
back and bottom.
Interior - NSF approved white aluminum side

•

walls and back liner. 300 series stainless oor
with coved corners.

Insulation - entire cabinet structure and solid

•

doors are foamed-in-place using Ecomate. A
new, innovative, high density, polyurethane
insulation that has zero ozone depletion
potential (ODP) and zero global warming
potential (GWP).
One (1) heavy gauge stainless steel ramp.

•

Designed to accept roll-in racks (inboard

•

castors) with a maximum dimension of 27"L x
29"D x 66"H (686 mm x 737 mm x 1677 mm).

DOORS

300 series stainless steel. Doors opens within

•

cabinet dimension.
Door locks standard.

•

Lifetime guaranteed recessed door handles.

•

Each door tted with 12" (305 mm) long
recessed handle that is foamed-in-place with
a sheet metal interlock to ensure permanent
attachment.
Three (3) lifetime guaranteed, cam-lift hinges.

•

Full 180° open capability with a stay open
feature at 120°.
Magnetic door gaskets of one piece

•

construction, removable without tools for ease
of cleaning.
Wiper gaskets for postitive seal, reversible.

•

Doors are eld reversible.

•

LIGHTING

Incandescent interior lighting, safety shielded.

•

MODEL FEATURES

Exterior digital temperature display, available

•

with either °F or °C .
Evaporator epoxy coated to eliminate the

•

potential of corrosion.
Backguard improves airow.

•

Minimum wattage heater in cabinet frame.

•

Interior bumpers protect cabinet walls from

•

abuse caused by roll-in carts.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and ready

•

for nal connection to a 115/208-230/60Hz
single phase, 3 pole, 4 wire, 20 amp dedicated
outlet. Cord and plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

Metal door handle (factory installed). ❑
Electronic temperature control (factory ❑
installed).
Correctional facilities options. ❑
Remote cabinets (condensing unit supplied ❑
by others; system comes standard with 404A
expansion valve and requires R404A refrigerant).
Consult factory technical service department for
BTU information. All remote units must be hard
wired during installation.

Plan VIew

CUBIC FEET

* Based on ANSI/AHAM HRF-1-2004

One year warranty on all parts

and labor and an additional 4
year warranty on compressor.

75

WARRANTY

(U.S.A. only)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

KCL

Model Elevation Right Plan 3D Back

TG2FRI-2S TFQY55E TFQY51S TFQY55P TFQX553
