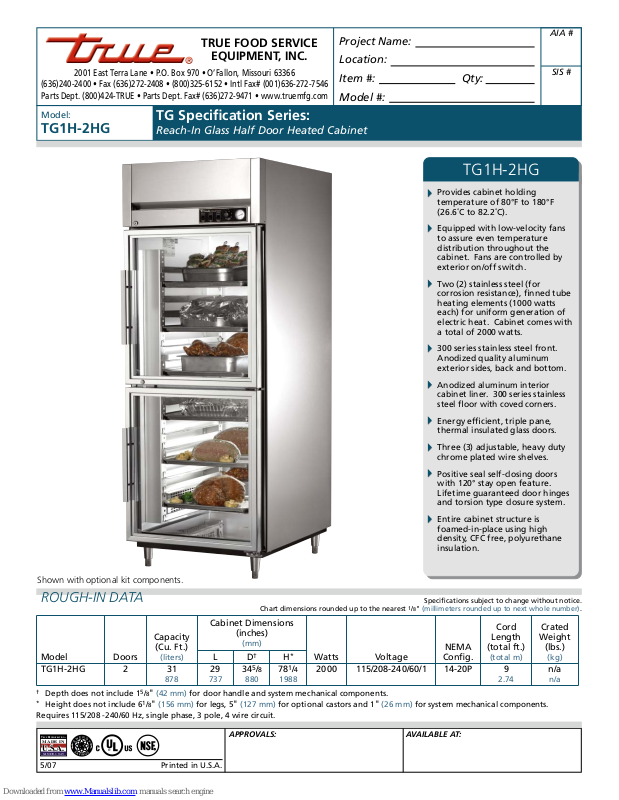

True TG1H-2HG Specifications

TRUE FOOD SERVICE

.S.A.

EQUIPMENT, INC.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TG1H-2HG

TG Specifi cation Series:

Reach-In Glass Half Door Heated Cabinet

TG1H-2HG

Provides cabinet holding
temperature of 80°F to 180°F
(26.6˚C to 82.2˚C).

Equipped with low-velocity fans
to assure even temperature
distribution throughout the
cabinet. Fans are controlled by
exterior on/off switch.

Two (2) stainless steel (for
corrosion resistance), fi nned tube
heating elements (1000 watts
each) for uniform generation of
electric heat. Cabinet comes with
a total of 2000 watts.

300 series stainless steel front.
Anodized quality aluminum
exterior sides, back and bottom.

Anodized aluminum interior
cabinet liner. 300 series stainless
steel fl oor with coved corners.

Energy effi cient, triple pane,
thermal insulated glass doors.

Three (3) adjustable, heavy duty
chrome plated wire shelves.

Positive seal self-closing doors
with 120° stay open feature.
Lifetime guaranteed door hinges
and torsion type closure system.

Entire cabinet structure is
foamed-in-place using high
density, CFC free, polyurethane
insulation.

Shown with optional kit components.

ROUGH-IN DATA

Capacity

Model Doors
TG1H-2HG 2 31

†

Depth does not include 15/8" (42 mm) for door handle and system mechanical components.

*

Height does not include 61/8" (156 mm) for legs, 5" (127 mm) for optional castors and 1" (26 mm) for system mechanical components.

Requires 115/208 -240/60 Hz, single phase, 3 pole, 4 wire circuit.

T

RUE

R

EFRIGERATION

TM

MADE IN

U.S.A.

U.S.A.

SINCE 1945

5/07

®

(Cu. Ft.)

(liters)

878

R

Printed in U.S.A.

1

Chart dimensions rounded up to the nearest

/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

LD†H

29

737

345/8

880

APPROVALS: AVAILABLE AT:

*

781/4

1988

Watts Voltage

2000 115/208-240/60/1 14-20P 9

Specifi cations subject to change without notice.

Crated

Weight

(lbs.)

(kg)

NEMA

Confi g.

Cord

Length

(total ft.)

(total m)

n/a

2.74

n/a

Model:

TG1H-2HG

TG Specifi cation Series:

Reach-In Glass Half Door Heated Cabinet

STANDARD FEATURES

DESIGN

• True’s glass door reach-in heated cabinets are
designed with enduring quality that protects
your long term investment.

HEATER SYSTEM

• Cabinet designed to provide holding
temperatures of 80°F to 180°F (26.6°C to 82.2°C).
Heating system controlled by exterior on/off
switch and temperature control dial.

• Two (2) stainless steel (for corrosion resistance),
fi nned tube heating elements (1000 watts each)
for uniform generation of electric heat. Cabinet
comes with a total of 2000 watts.

• Equipped with low-velocity fans to assure
even temperature distribution throughout the
cabinet. Fans are controlled by exterior on/off
switch.

• Manually controlled vent located on top of the
cabinet for positive humidity control.

• 12" x 20" (305 mm x 508 mm) pan for water
included, if additional humidity required.

CABINET CONSTRUCTION

• Exterior - 300 series stainless steel rainshield.
Anodized quality aluminum sides, back and
bottom.

• Interior - NSF approved anodized aluminum side
walls and back liner. 300 series stainless fl oor
with coved corners.

• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC free,
polyurethane insulation.

• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.

• Frame rail fi tted with 6" (153 mm) stainless steel
legs.

DOORS

• Doors are energy effi cient, triple pane, thermal
insulated glass. Doors open within cabinet
dimension.

• Door locks standard.

• Each door fi tted with 15" (381 mm) long
extruded aluminum handle.

• Positive seal self-closing doors with 120° stay
open feature. Lifetime guaranteed door hinges.

• Magnetic door gasket of one piece construction,
removable without tools for ease of cleaning.

SHELVING

• Three (3) chrome shelves 25" x 273/4"
(635 mm x 705 mm) with shelf clips and wall
mounted pilasters (factory installed). 1
(27 mm) standoff ensures optimum airfl ow.

• Aluminum shelf support pilasters. Shelves are
adjustable on

• Three (3) different interior kits available (see Kit
Options). Pilasters and tray slides require fi eld
installation.

LIGHTING

• Incandescent interior lighting – lights activated
by exterior on/off switch, safety shielded.

MODEL FEATURES

• Exterior, color coded, dial thermometer;
accurate direct reading of internal cabinet
temperature.

• Designed to hold warm baked or cooked food.
Cabinet is not designed to heat ambient or cold
product.

• NSF-4 compliant for open food product.

1

/2" (13 mm) increments.

1

/16"

ELECTRICAL

• True requires that a sole use circuit be dedicated
for the unit.

• Unit completely pre-wired at factory and ready
for fi nal connection to a 115/208-240/60 Hz.
single phase, 20 amp dedicated outlet. Cord
and plug set included.

115/208-240/1
NEMA-14-20R

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❒ Seismic/fl anged legs.
❒ 4" (102 mm) diameter stem castors.
❒ Stainless steel rail skirt for use with legs (fi eld

installed).

❒ Additional shelves.
❒ Stainless steel (electro polished) shelves.
❒ Metal door handle (factory installed).
❒ Electronic temperature control (factory

installed).

❒ Curb mountable units.

KIT OPTIONS

Upcharge applies. Lead times may apply.
❒ Kit #1: Nine (9) sets of #1 type tray slides and

pilasters (fi eld installed), bottom support of one
(1) 18"L x 26"D (458 mm x 661 mm) pan or two
(2) 14"L x 18"D (356 mm x 458 mm) pans.

❒ Kit #2: One (1) set half-section #2 steel rod tray

slides and pilasters (fi eld installed), rim support
of one (1) 18"L x 26"D (458 mm x 661 mm) pan.

❒ Kit #3: Six (6) sets of universal type tray slides

and pilasters (fi eld installed), bottom support
of one (1) 18"L x 26"D (458 mm x 661 mm) pan,
two (2) 14"L x 18"D (356 mm x 458 mm) pans or
two (2) 12"L x 20"D (305 mm x
508 mm) pans.

❒ Additional kit option components available

individually.

PLAN VIEW

WARRANTY

One year warranty on all parts

and labor (U.S.A. only)

ELEVATION

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

1"

(26 mm)

77"

(1956 mm)

783/16"

(1986 mm)

851/4"

(2166 mm)

13/16"

(31 mm)

WITHOUT NOTICE

61/16"

(154 mm)

365/32"

(919 mm)

(880 mm)

KCL

29"

(737 mm)

345/8"

117/32"

(39 mm)

3521/32"

(906 mm)

2611/16"

(678 mm)

615/16"

(1558 mm)

PLAN VIEW

Model Elevation Right Plan 3D

TG1H-2HG
