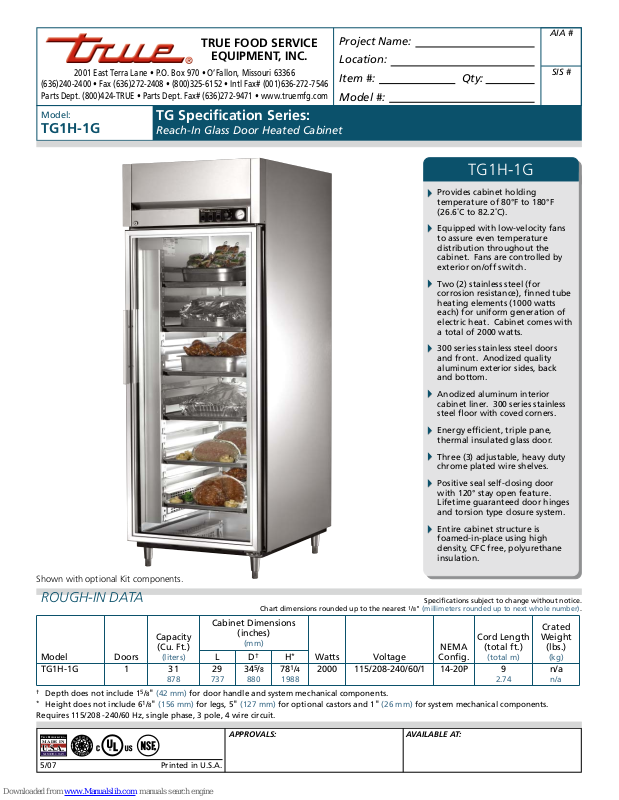

Model:

TG1H-1G

TG Specifi cation Series:

Reach-In Glass Door Heated Cabinet

TG1H-1G

Provides cabinet holding
temperature of 80°F to 180°F
(26.6˚C to 82.2˚C).

Equipped with low-velocity fans
to assure even temperature
distribution throughout the
cabinet. Fans are controlled by
exterior on/off switch.

Two (2) stainless steel (for
corrosion resistance), fi nned tube
heating elements (1000 watts
each) for uniform generation of
electric heat. Cabinet comes with
a total of 2000 watts.

300 series stainless steel doors
and front. Anodized quality
aluminum exterior sides, back
and bottom.

Anodized aluminum interior
cabinet liner. 300 series stainless
steel fl oor with coved corners.

Energy effi cient, triple pane,
thermal insulated glass door.

Three (3) adjustable, heavy duty
chrome plated wire shelves.

Positive seal self-closing door
with 120° stay open feature.
Lifetime guaranteed door hinges
and torsion type closure system.

Entire cabinet structure is
foamed-in-place using high
density, CFC free, polyurethane
insulation.

Shown with optional Kit components.

ROUGH-IN DATA

Capacity

Model Doors
TG1H-1G 1 31

†

Depth does not include 15/8" (42 mm) for door handle and system mechanical components.

*

Height does not include 61/8" (156 mm) for legs, 5" (127 mm) for optional castors and 1" (26 mm) for system mechanical components.

Requires 115/208 -240/60 Hz, single phase, 3 pole, 4 wire circuit.

T

RUE

R

EFRIGERATION

TM

MADE IN

U.S.A.

U.S.A.

SINCE 1945

5/07

®

(Cu. Ft.)

(liters)

878

R

Printed in U.S.A.

1

Chart dimensions rounded up to the nearest

/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

LD†H

29

737

345/8

880

APPROVALS: AVAILABLE AT:

*

781/4

1988

Watts Voltage

2000 115/208-240/60/1 14-20P 9

Specifi cations subject to change without notice.

Crated

Weight

(lbs.)

(kg)

NEMA

Confi g.

Cord Length

(total ft.)

(total m)

n/a

2.74

n/a

Model:

TG1H-1G

TG Specifi cation Series:

Reach-In Glass Door Heated Cabinet

STANDARD FEATURES

DESIGN

• True’s glass door reach-in heated cabinets are
designed with enduring quality that protects
your long term investment.

HEATER SYSTEM

• Cabinet designed to provide holding
temperatures of 80°F to 180°F (26.6°C to

82.2°C). Heating system controlled by exterior
on/off switch and temperature control dial.

• Two (2) stainless steel (for corrosion resistance),
fi nned tube heating elements (1000 watts
each) for uniform generation of electric heat.
Cabinet comes with a total of 2000 watts.

• Equipped with low-velocity fans to assure
even temperature distribution throughout the
cabinet. Fans are controlled by exterior on/off
switch.

• Manually controlled vent located on top of the
cabinet for positive humidity control.

• 12" x 20" (305 mm x 508 mm) pan for water
included, if additional humidity required.

CABINET CONSTRUCTION

• Exterior - 300 series stainless steel rainshield.
Anodized quality aluminum sides, back and
bottom.

• Interior - NSF approved anodized aluminum
side walls and back liner. 300 series stainless
fl oor with coved corners.

• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC free,
polyurethane insulation.

• Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.

• Frame rail fi tted with 6" (153 mm) stainless
steel legs.

DOOR

• Door is energy effi cient, triple pane, thermal
insulated glass. Door opens within cabinet
dimension.

• Door lock standard.

• Door fi tted with 15" (381 mm) long extruded
aluminum handle.

• Positive seal self-closing door with 120° stay
open feature. Lifetime guaranteed door
hinges.

• Magnetic door gasket of one piece
construction, removable without tools for ease
of cleaning.

SHELVING

• Three (3) chrome shelves 25" x 273/4" (635 mm
x 705 mm) with shelf clips and wall mounted
pilasters (factory installed). 1
standoff ensures optimum airfl ow.

• Aluminum shelf support pilasters. Shelves are
adjustable on

• Three (3) different interior kits available (see
Kit Options). Pilasters and tray slides require
fi eld installation.

LIGHTING

• Incandescent interior lighting – lights activated
by exterior on/off switch, safety shielded.

MODEL FEATURES

• Exterior, color coded, dial thermometer;
accurate direct reading of internal cabinet
temperature.

• Designed to hold warm baked or cooked food.
Cabinet is not designed to heat ambient or
cold product.

ELECTRICAL

• True requires that a sole use circuit be
dedicated for the unit.

• Unit completely pre-wired at factory and ready
for fi nal connection to a 115/208-240/60 Hz.
single phase, 20 amp dedicated outlet. Cord
and plug set included.

1

/2" (13 mm) increments.

1

/16" (27 mm)

115/208-240/1
NEMA-14-20R

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❒ Seismic/fl anged legs.
❒ 4" (102 mm) diameter stem castors.
❒ Stainless steel rail skirt for use with legs (fi eld

installed).

❒ Additional shelves.
❒ Stainless steel (electro polished) shelves.
❒ Metal door handle (factory installed).
❒ Electronic temperature control (factory

installed).

❒ Curb mountable units.

KIT OPTIONS

Upcharge applies. Lead times may apply.
❒ Kit #1: Nine (9) sets of #1 type tray slides and

pilasters (fi eld installed), bottom support of
one (1) 18"L x 26"D (458 mm x 661 mm) pan or
two (2) 14"L x 18"D (356 mm x 458 mm) pans.

❒ Kit #2: One (1) set half-section #2 steel rod tray

slides and pilasters (fi eld installed), rim support
of one (1) 18"L x 26"D (458 mm x 661 mm)
pan.

❒ Kit #3: Six (6) sets of universal type tray slides

and pilasters (fi eld installed), bottom support
of one (1) 18"L x 26"D (458 mm x 661 mm)
pan, two (2) 14"L x 18"D (356 mm x 458 mm)
pans or two (2) 12"L x 20"D (305 mm x
508 mm) pans.

❒ Additional kit option components available

individually.

PLAN VIEW

WARRANTY

One year warranty on all parts

and labor (U.S.A. only)

ELEVATION

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

1"

(26 mm)

77"

(1956 mm)

783/16"

(1986 mm)

(2166 mm)

13/16"

(31 mm)

WITHOUT NOTICE

61/16"

(154 mm)

851/4"

365/32"

(919 mm)

(880 mm)

KCL

29"

(737 mm)

345/8"

117/32"

(39 mm)

3521/32"

(906 mm)

2611/16"

(678 mm)

615/16"

(1558 mm)

PLAN VIEW

Model Elevation Right Plan 3D

TG1H-1G
