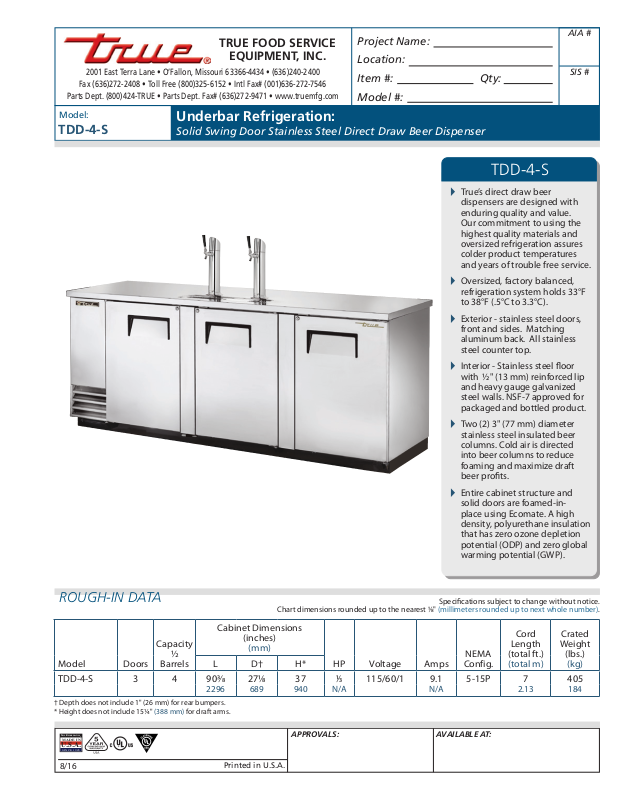

True TDD-4-S User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone]

Fax [phone] • Toll Free [phone] • Intl Fax# [phone]

Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TDD-4-S

Underbar Refrigeration:

Solid Swing Door Stainless Steel Direct Draw Beer Dispenser

True’s direct draw beer



dispensers are designed with
enduring quality and value.
Our commitment to using the
highest quality materials and
oversized refrigeration assures
colder product temperatures
and years of trouble free service.

Oversized, factory balanced,



refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C).

Exterior - stainless steel doors,



front and sides. Matching
aluminum back. All stainless
steel counter top.

Interior - Stainless steel oor



with ½" (13 mm) reinforced lip
and heavy gauge galvanized
steel walls. NSF-7 approved for
packaged and bottled product.

Two (2) 3" (77 mm) diameter



stainless steel insulated beer
columns. Cold air is directed
into beer columns to reduce
foaming and maximize draft
beer prots.

Entire cabinet structure and



solid doors are foamed-in­place using Ecomate. A high
density, polyurethane insulation
that has zero ozone depletion
potential (ODP) and zero global
warming potential (GWP).

TDD-4-S

ROUGH-IN DATA

Model Doors

Capacity

½

Barrels

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

TDD-4-S 3 4 90⁄ 27⁄ 37 ⁄ 115/60/1 9.1 5-15P 7 405

2296 689 940 N/A N/A 2.13 184

†Depth does not include 1" (26 mm) for rear bumpers.
* Height does not include 15¼" (388 mm) for draft arms.

T

RUE

R

EFRIGERATION

MADE IN

U.S.A.

SINCE 1945

8/16

®

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

(kg)L D† H*

Model:

TDD-4-S

Underbar Refrigeration:

Solid Swing Door Stainless Steel Direct Draw
Beer Dispenser

STANDARD FEATURES

DESIGN

True’s direct draw beer dispensers are

•

designed with enduring quality and
value. Our commitment to using the
highest quality materials and oversized
refrigeration assures colder product
temperatures and years of trouble free
service.

REFRIGERATION SYSTEM

Factory engineered, self-contained,

•

capillary tube system using
environmentally friendly (CFC free) 134A
refrigerant.
Extra large evaporator coil balanced with

•

higher horsepower compressor and large
condenser; maintains cabinet temperatures
of 33°F to 38°F (.5°C to 3.3°C).
Sealed, cast iron, self-lubricating

•

evaporator fan motor(s) and larger fan
blades give True beer dispensers a more
ecient low velocity, high volume airow
design. This unique design ensures faster
temperature pull down of warm product,
colder holding temperatures and faster
recovery in high use situations.
Condensing unit accessed from behind

•

front grill, slides out for easy cleaning and
maintenance.

CABINET CONSTRUCTION

Exterior - stainless steel doors, front and

•

sides. Matching aluminum back. All
stainless steel counter top.

Interior - Stainless steel oor with ½"

•

(13 mm) reinforced lip and heavy gauge
galvanized steel walls.
Door threshold protector prevents damage

•

to cabinet from routine loading of product.
Insulation - entire cabinet structure and

•

solid doors are foamed-in-place using
Ecomate. A high density, polyurethane
insulation that has zero ozone depletion
potential (ODP) and zero global warming
potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.
Two (2) 3" (77 mm) diameter stainless steel

•

insulated beer columns. Cold air is directed
into beer column(s) to reduce foaming and
maximize draft beer prots.

DOORS

Stainless steel exterior with heavy gauge

•

galvanized steel liner.
Each door tted with 12" (305 mm) long

•

recessed handle that is foamed-in-place
with a sheet metal interlock to ensure
permanent attachment.
Positive seal doors.

•

Magnetic door gasket(s) of one piece

•

construction, removable without tools for
ease of cleaning.
Door locks standard.

•

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.

Convenient ½" (13 mm) barbed T drain

•

tting located on front of cooler.
Designed to accommodate all types of beer

•

kegs.
Comes standard with a two-way tapper

•

manifold.
Listed under NSF-7 for the storage and/or

•

display of packaged or bottled product.

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord and
plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ 2 ½" (64 mm) diameter castors.
❑ 4" (102 mm) diameter castors.
❑ Double headed draft column.
❑ Triple headed draft column.
❑ Three-way tapper manifold.
❑ Draft cap.

PLAN VIEW

905/16"

(2294 mm)

PLAN VIEW

3821/32"

(982 mm)

881/2"

(2248 mm)

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

WARRANTY

warranty on compressor.

(U.S.A. only)

13"

(331 mm)

ELEVATION

*

1

/2"(13 mm)

Barbed T

7

3

/8"

(99 mm)

5213/32"

(1332 mm)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

Drain Fitting

153/4"

(400 mm)

37"

(940 mm)

523/4"

(1340 mm)

3"

(77 mm)

147/32"

(362 mm)

831/32"

(228 mm)

KCL

3613/32"

(925 mm)

3229/32"

(836 mm)

Model Elevation Right Plan 3D Back

TDD-4-S TFHY01E TFHY03S TFHY01P TFHY013

TRUE FOOD SERVICE EQUIPMENT

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone] • Fax [phone] • Toll Free [phone] • Intl. Fax# [phone] • www.truemfg.com

3613/32"

(925 mm)

3229/32"

(836 mm)

131/32"

(50 mm)

(26 mm)

2711/16"

(704 mm)

4927/32"

(1267 mm)

215/32"

(538 mm)

1"
