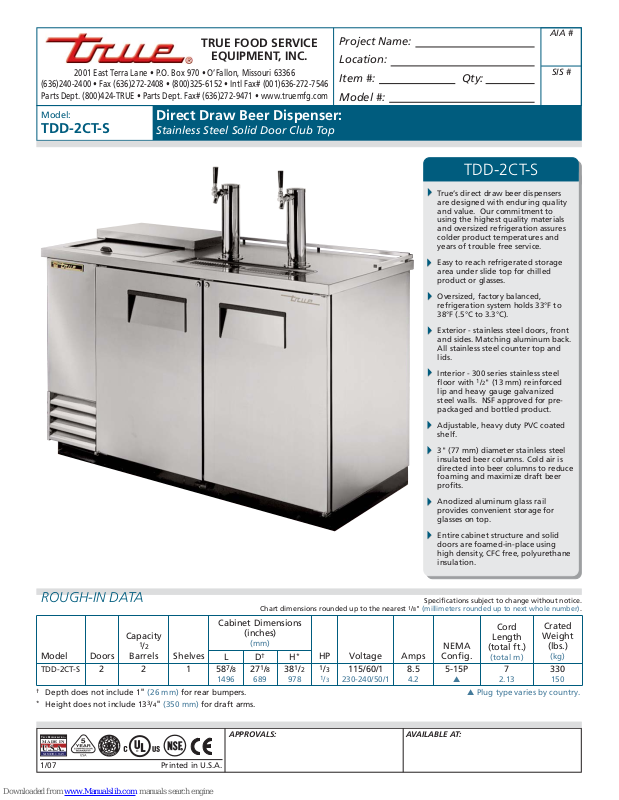

True TDD-2CT-S Specifications

TRUE FOOD SERVICE

.S.A.

EQUIPMENT, INC.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TDD-2CT-S

Direct Draw Beer Dispenser:

Stainless Steel Solid Door Club Top

TDD-2CT-S

True’s direct draw beer dispensers
are designed with enduring quality
and value. Our commitment to
using the highest quality materials
and oversized refrigeration assures
colder product temperatures and
years of trouble free service.

Easy to reach refrigerated storage
area under slide top for chilled
product or glasses.

Oversized, factory balanced,
refrigeration system holds 33°F to
38°F (.5°C to 3.3°C).

Exterior - stainless steel doors, front
and sides. Matching aluminum back.
All stainless steel counter top and
lids.

Interior - 300 series stainless steel
fl oor with 1/2" (13 mm) reinforced
lip and heavy gauge galvanized
steel walls. NSF approved for pre­packaged and bottled product.

Adjustable, heavy duty PVC coated
shelf.

3" (77 mm) diameter stainless steel
insulated beer columns. Cold air is
directed into beer columns to reduce
foaming and maximize draft beer
profi ts.

Anodized aluminum glass rail
provides convenient storage for
glasses on top.

Entire cabinet structure and solid
doors are foamed-in-place using
high density, CFC free, polyurethane
insulation.

ROUGH-IN DATA

Capacity

1

Model

TDD-2CT-S

†

Depth does not include 1" (26 mm) for rear bumpers. ▲ Plug type varies by country.

*

Height does not include 133/4" (350 mm) for draft arms.

T

RUE

R

EFRIGERATION

MADE IN

U.S.A.

U.S.A.

SINCE 1945

1/07

Doors

22 158

TM

/2

Barrels

®

Shelves

R

Printed in U.S.A.

Specifi cations subject to change without notice.

1

Chart dimensions rounded up to the nearest

/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

*

LD†H

7

/8

271/8

1496

689

APPROVALS: AVAILABLE AT:

381/2

978

HP Voltage Amps

1

/3

1

/3

115/60/1

230-240/50/1

8.5

4.2

NEMA

Confi g.

5-15P

▲

Cord

Length

(total ft.)

(total m)

7

2.13

Crated

Weight

(lbs.)

(kg)

330

150

Model:

TDD-2CT-S

Direct Draw Beer Dispenser:

Stainless Steel Solid Door Club Top

STANDARD FEATURES

DESIGN

• True’s direct draw beer dispensers are
designed with enduring quality and
value. Our commitment to using the
highest quality materials and oversized
refrigeration assures colder product
temperatures and years of trouble free
service.

REFRIGERATION SYSTEM

• Factory engineered, self-contained,
capillary tube system using environmentally
friendly (CFC free) 134A refrigerant.

• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains cabinet temperatures
of 33°F to 38°F (.5°C to 3.3°C).

• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger fan
blades give True beer dispensers a more
effi cient low velocity, high volume airfl ow
design. This unique design ensures faster
temperature pull down of warm product,
colder holding temperatures and faster
recovery in high use situations.

• Condensing unit accessed from behind
front grill, slides out for easy cleaning and
maintenance.

CABINET CONSTRUCTION

• Exterior - stainless steel doors, front
and sides. Matching aluminum back. All
stainless steel counter top and lid.

• Interior - 300 series stainless steel fl oor
with 1/2" (13 mm) reinforced lip and heavy
gauge galvanized steel walls.

• Insulation - entire cabinet structure and
solid doors are foamed-in-place using high
density, CFC free, polyurethane insulation.

• Welded, heavy duty galvanized base rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.

• 3" (77 mm) diameter stainless steel
insulated beer columns. Cold air is directed
into beer columns to reduce foaming and
maximize draft beer profi ts.

• Anodized aluminum glass rail.

DOORS

• Stainless steel exterior with heavy gauge
galvanized steel liner.

• Each door fi tted with 12" (305 mm) long
recessed handle that is foamed-in-place
with a sheet metal interlock to insure
permanent attachment.

• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.

• Door locks standard.

SHELVING

• One (1) adjustable, heavy duty, black, PVC
coated wire shelf 113/8"L x 211/4"D
(289 mm x 540 mm). Four (4) chrome
plated shelf clips included per shelf.

• Aluminum shelf support pilasters; shelves
are adjustable on 1/2" (13 mm) increments.

LIGHTING

• Incandescent interior lighting.

MODEL FEATURES

• Evaporator is epoxy coated to eliminate
the potential of corrosion.

• Convenient 1/2" (13 mm) barbed T drain
fi tting located on front of cooler.

• Designed to accommodate all types of beer
kegs.

• Listed under NSF-7 for the storage and/or
display of packaged or bottled product.

ELECTRICAL

• Unit completely pre-wired at factory and
ready for fi nal connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord and
plug set included.

115/60/1
NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❒ 230 - 240V / 50 Hz.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/fl anged legs.
❒ 21/2" (64 mm) diameter castors.
❒ 4" (102 mm) diameter castors.
❒ Double headed draft standard.
❒ Two-way tapper manifold.
❒ Three-way tapper manifold.
❒ Draft cap.
❒ Remote cabinets (condensing unit supplied

by others; system comes standard with
404A expansion valve and requires R404A
refrigerant), consult factory technical
service department for BTU information.

PLAN VIEW

37/8"

99 mm

381/2"

(978 mm)

15

/16"

24 mm

231/16"

(586 mm)

57"

(1448 mm)

1

/2"(13 mm)

Barbed T
Drain Fitting

WARRANTY

One year warranty on all parts

and labor and an additional 4
year warranty on compressor.

(U.S.A. only)

151/4"

(388 mm)

37"

(940 mm)

3"

(77 mm)

233/16"

(589 mm)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

ELEVATION

521/4"

(1328 mm)

KCL

1"

(26 mm)

271/16"

(688 mm)

4927/32"

(1277 mm)

2125/32"

(554 mm)

Model Elevation Right Plan 3D

TDD-2CT-S TFSY02E TFSY02S TFSY02P TFSY023

333/32"

(841 mm)

5813/16"

(1494 mm)

(331 mm)

353/4"

(909 mm)

PLAN VIEW

13"

123/4"

(324 mm)

117/32"

(285 mm)
