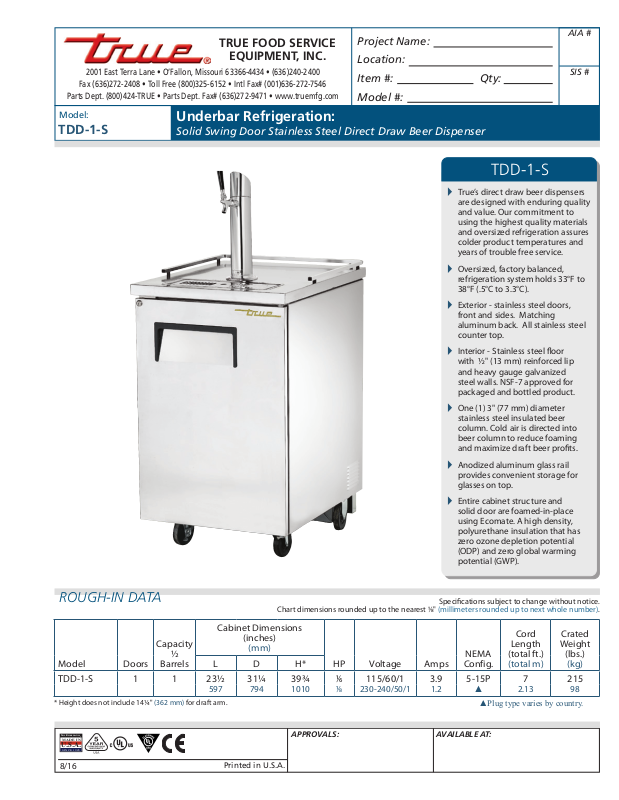

True TDD-1-S User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone]

Fax [phone] • Toll Free [phone] • Intl Fax# [phone]

Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TDD-1-S

Underbar Refrigeration:

Solid Swing Door Stainless Steel Direct Draw Beer Dispenser

True’s direct draw beer dispensers



are designed with enduring quality
and value. Our commitment to
using the highest quality materials
and oversized refrigeration assures
colder product temperatures and
years of trouble free service.

Oversized, factory balanced,



refrigeration system holds 33°F to
38°F (.5°C to 3.3°C).

Exterior - stainless steel doors,



front and sides. Matching
aluminum back. All stainless steel
counter top.

Interior - Stainless steel oor



with ½" (13 mm) reinforced lip
and heavy gauge galvanized
steel walls. NSF-7 approved for
packaged and bottled product.

One (1) 3" (77 mm) diameter



stainless steel insulated beer
column. Cold air is directed into
beer column to reduce foaming
and maximize draft beer prots.

Anodized aluminum glass rail



provides convenient storage for
glasses on top.

Entire cabinet structure and



solid door are foamed-in-place
using Ecomate. A high density,
polyurethane insulation that has
zero ozone depletion potential
(ODP) and zero global warming
potential (GWP).

TDD-1-S

ROUGH-IN DATA

Model Doors

Capacity

½

Barrels

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

TDD-1-S 1 1 23½ 31¼ 39¾ ⁄ 115/60/1 3.9 5-15P 7 215

597 794 1010 ⁄ 230-240/50/1 1.2 ▲ 2.13 98

* Height does not include 14¼" (362 mm) for draft arm.

T

RUE

R

EFRIGERATION

®

MADE IN

U.S.A.

SINCE 1945

8/16

APPROVALS: AVAILABLE AT:

Printed in U.S.A.

▲Plug type varies by country.

(kg)L D H*

Model:

TDD-1-S

Underbar Refrigeration:

Solid Swing Door Stainless Steel Direct Draw
Beer Dispenser

STANDARD FEATURES

DESIGN

True’s direct draw beer dispensers are

•

designed with enduring quality and
value. Our commitment to using the
highest quality materials and oversized
refrigeration assures colder product
temperatures and years of trouble free
service.

REFRIGERATION SYSTEM

Factory engineered, self-contained,

•

capillary tube system using
environmentally friendly (CFC free) 134A
refrigerant.
Extra large evaporator coil balanced

•

with higher horsepower compressor
and large condenser; maintains cabinet
temperatures of 33°F to 38°F (.5°C to

3.3°C).
Sealed, cast iron, self-lubricating

•

evaporator fan motor(s) and larger
fan blades give True beer dispensers
a more ecient low velocity, high
volume airow design. This unique
design ensures faster temperature pull
down of warm product, colder holding
temperatures and faster recovery in high
use situations.
Condensing unit accessed from rear of

•

unit for easy cleaning and maintenance.

CABINET CONSTRUCTION

Exterior - stainless steel doors, front and

•

sides. Matching aluminum back. All
stainless steel counter top.
Interior - Stainless steel oor with ½ "

•

(13 mm) reinforced lip and heavy gauge
galvanized steel walls.
Door threshold protector prevents

•

damage to cabinet from routine loading
of product.
Insulation - entire cabinet structure and

•

solid door are foamed-in-place using
Ecomate. A high density, polyurethane
insulation that has zero ozone depletion
potential (ODP) and zero global warming
potential (GWP).
Cabinet tted with 4" (102 mm) diameter

•

castors (legs not available).
One (1) 3" (77 mm) diameter stainless

•

steel insulated beer column. Cold air is
directed into beer column(s) to reduce
foaming and maximize draft beer prots.
Anodized aluminum glass rail.

•

DOOR

Stainless steel exterior with heavy gauge

•

galvanized steel liner.
Each door tted with 12" (305 mm) long

•

recessed handle that is foamed-in-place
with a sheet metal interlock to ensure
permanent attachment.
Positive seal doors.

•

Magnetic door gaskets of one piece

•

construction, removable without tools
for ease of cleaning.
Door lock standard.

•

MODEL FEATURES

Evaporator is epoxy coated to eliminate

•

the potential of corrosion.
Designed to accommodate all types of

•

beer kegs.
Listed under NSF-7 for the storage

•

and/or display of packaged or bottled
product.

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord
and plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 230 - 240V / 50 Hz.
❑ Double headed draft column.
❑ Triple headed draft column.
❑ Two-way tapper manifold.
❑ Draft cap.

PLAN VIEW

3127/32"

(809 mm)

303/16"

(767 mm)

1827/32"

237/16"

(596 mm)

383/4"

(985 mm)

329/32"

(100 mm)

ELEVATION

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

WARRANTY

warranty on compressor.

(U.S.A. only)

*

(479 mm)

1"

(26 mm)

393/4"

(1010 mm)

11/8"

(29 mm)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

(375 mm)

(883 mm)

KCL

143/4"

541/2"

(1385 mm)

343/4"

5"

(127 mm)

Model Elevation Right Plan 3D Back

TDD-1-S TFHY04E TFHY04S TFHY04P TFHY043

1123/32"

(298 mm)

511/32"

(136 mm)

PLAN VIEWRIGHT VIEW

TRUE FOOD SERVICE EQUIPMENT

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone] • Fax [phone] • Toll Free [phone] • Intl. Fax# [phone] • www.truemfg.com

121/32"

(43 mm)

303/16"

(767 mm)

201/16"

(510 mm)

3127/32"

(809 mm)

5129/32"

(1319 mm)
