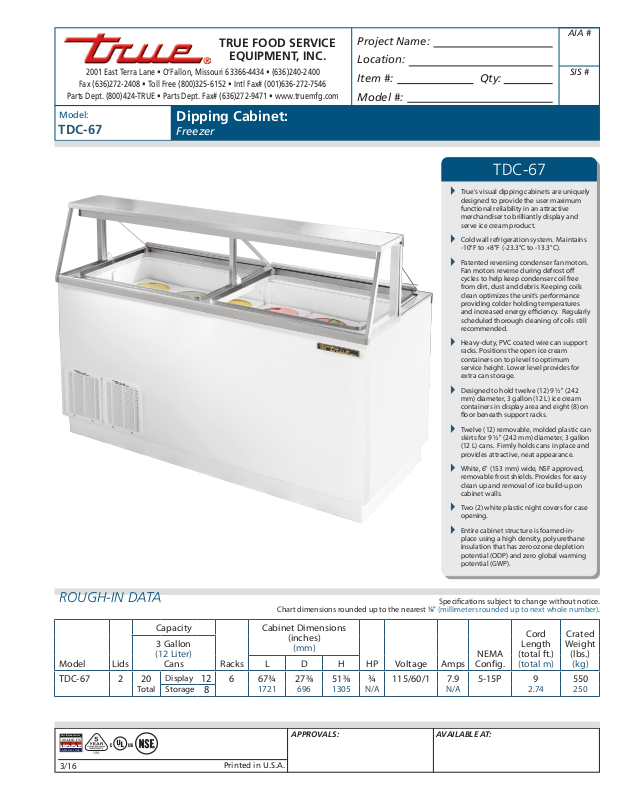

True TDC-67 User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone]

Fax [phone] • Toll Free [phone] • Intl Fax# [phone]

Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TDC-67

Dipping Cabinet:

Freezer

TDC-67

True’s visual dipping cabinets are uniquely



designed to provide the user maximum
functional reliability in an attractive
merchandiser to brilliantly display and
serve ice cream product.

Cold wall refrigeration system. Maintains



-10°F to +8°F (-23.3°C to -13.3°C).

Patented reversing condenser fan motors.



Fan motors reverse during defrost o
cycles to help keep condenser coil free
from dirt, dust and debris. Keeping coils
clean optimizes the unit’s performance
providing colder holding temperatures
and increased energy eciency. Regularly
scheduled thorough cleaning of coils still
recommended.

Heavy-duty, PVC coated wire can support



racks. Positions the open ice cream
containers on top level to optimum
service height. Lower level provides for
extra can storage.

Designed to hold twelve (12) 9½" (242



mm) diameter, 3 gallon (12 L) ice cream
containers in display area and eight (8) on
oor beneath support racks.

Twelve (12) removable, molded plastic can



skirts for 9 ½" (242 mm) diameter, 3 gallon
(12 L) cans. Firmly holds cans in place and
provides attractive, neat appearance.

White, 6" (153 mm) wide, NSF approved,



removable frost shields. Provides for easy
clean up and removal of ice build-up on
cabinet walls.

Two (2) white plastic night covers for case



opening.

Entire cabinet structure is foamed-in-



place using a high density, polyurethane
insulation that has zero ozone depletion
potential (ODP) and zero global warming
potential (GWP).

ROUGH-IN DATA

Model Lids

TDC-67 2 20

Total Storage

T

RUE

R

EFRIGERATION

®

MADE IN

U.S.A.

SINCE 1945

3/16

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).

Capacity

3 Gallon

(12 Liter)

Cans L D H

Display

Racks

6 67¾ 27⁄ 51⁄ ¾ 115/60/1 7.9 5-15P 9 550

12

8

Printed in U.S.A.

Cabinet Dimensions

(inches)

(mm)

1721 696 1305 N/A N/A 2.74 250

APPROVALS: AVAILABLE AT:

Specications subject to change without notice.

HP Voltage Amps

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)

Model:

TDC-67

Dipping Cabinet:

Freezer

STANDARD FEATURES

DESIGN

True’s visual dipping cabinets are uniquely

•

designed to provide the user maximum
functional reliability in an attractive
merchandiser to brilliantly display and serve
ice cream product.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) R404A refrigerant.
Cold wall refrigeration system. Maintains -10°F

•

to +8°F (-23.3°C to -13.3°C).
Patented reversing condenser fan motors. Fan

•

motors reverse during defrost o cycles to
help keep condenser coil free from dirt, dust
and debris. Keeping coils clean optimizes the
unit’s performance providing colder holding
temperatures and increased energy eciency.
Regularly scheduled thorough cleaning of
coils still recommended.
Condensing unit located behind rear grill on

•

right side; slides out for easy maintenance.
Manual defrost system; drain tube with hose

•

connector conveniently located behind rear
access panel.

CABINET CONSTRUCTION

Exterior - non-peel or chip white laminated

•

vinyl clad steel; durable and permanent.
300 series stainless steel top with raised rim

•

protects cabinet and helps minimize spillage
to keep cabinet interior clean.
Interior - high quality white enamel powder

•

coat nish on galvanized steel.

Insulation - entire cabinet structure is foamed-

•

in-place using a high density, polyurethane
insulation that has zero ozone depletion
potential (ODP) and zero global warming
potential (GWP).
Heavy duty, galvanized steel base rail with

•

white enamel powder coat nish.

CANOPY/LIDS

Stainless steel frame with tempered, single

•

pane glass viewing window.
Hinged, transparent acrylic dipping

•

compartment service lids with full length
handles. Top and back wiper gaskets for
improved seal.

SUPPORT RACKS

Six (6) heavy-duty, PVC coated wire can

•

support racks 7" x 20 ½" (178 mm x 521 mm).
Positions the open ice cream containers on top
level to optimum service height.
Each rack designed to hold two (2) 9 ½ "

•

(242 mm) diameter, 3 gallon (12 L) ice cream
containers.
Lower level beneath support racks provides for

•

extra can storage of eight (8) 9 ½ " (242 mm)
diameter, 3 gallon (12 L) ice cream containers.

LIGHTING

Safety shielded, uorescent interior canopy

•

lighting for brighter, shadow free illumination.
Independent on/o switch.
Cabinet lighting utilizes electronic ballast and

•

T-8 bulbs for brighter illumination, longer bulb
life and increased energy eciency.

MODEL FEATURES

White, 6" (153 mm) wide, NSF approved,

•

removable magnetic frost shields. Provides for
easy clean up and removal of ice build-up on
cabinet walls.
Two (2) white plastic night covers for case

•

opening.
Twelve (12) removable, molded plastic can

•

skirts for 9 ½" (242 mm) diameter, 3 gallon
(12 L) cans. Firmly holds cans in place and
provides attractive, neat appearance.
Frost shield.

•

NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1 phase,
15 amp dedicated outlet. Cord and plug set
included.

RECOMMENDED OPERATING CONDITIONS

TDC models are designed to operate in an air

•

conditioned environment where temperatures
do not exceed 75°F and 55% relative humidity.
Units should be installed away from direct

•

sunlight, rapid air movement and extreme
temperature changes.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ 2 ½ " (64 mm) diameter castors.
❑ Dipper well kit (NSF approved).
❑ Lid locking kit (lock not included).

PLAN VIEW

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone] • Fax [phone] • Toll Free [phone] • Intl. Fax# [phone] • www.truemfg.com

WARRANTY

warranty on compressor.

(U.S.A. only)

*

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

KCL

Model Elevation Right Plan 3D Back

TDC-67 TFM014E TFM010S TFM014P TFM0143 TFM014B
