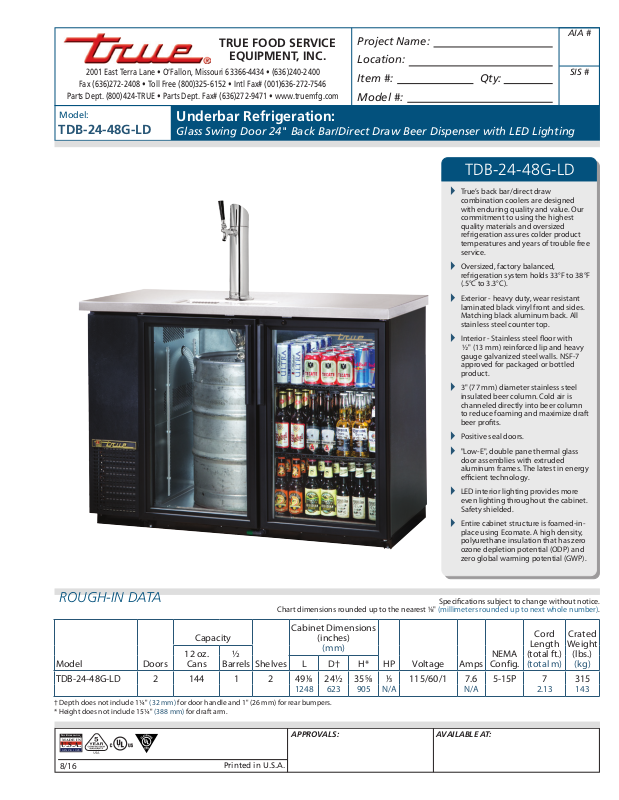

True TDB-24-48G-LD User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone]

Fax [phone] • Toll Free [phone] • Intl Fax# [phone]

Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TDB-24-48G-LD

Underbar Refrigeration:

Glass Swing Door 24" Back Bar/Direct Draw Beer Dispenser with LED Lighting

TDB-24-48G-LD

True’s back bar/direct draw



combination coolers are designed
with enduring quality and value. Our
commitment to using the highest
quality materials and oversized
refrigeration assures colder product
temperatures and years of trouble free
service.

Oversized, factory balanced,



refrigeration system holds 33°F to 38°F
(.5°C to 3.3°C).

Exterior - heavy duty, wear resistant



laminated black vinyl front and sides.
Matching black aluminum back. All
stainless steel counter top.

Interior - Stainless steel oor with



½" (13 mm) reinforced lip and heavy
gauge galvanized steel walls. NSF-7
approved for packaged or bottled
product.

3" (77 mm) diameter stainless steel



insulated beer column. Cold air is
channeled directly into beer column
to reduce foaming and maximize draft
beer prots.

Positive seal doors.



"Low-E", double pane thermal glass



door assemblies with extruded
aluminum frames. The latest in energy
ecient technology.

LED interior lighting provides more



even lighting throughout the cabinet.
Safety shielded.

Entire cabinet structure is foamed-in-



place using Ecomate. A high density,
polyurethane insulation that has zero
ozone depletion potential (ODP) and
zero global warming potential (GWP).

ROUGH-IN DATA

Model Doors

Capacity

12 oz.

Cans

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

½

Barrels L D† H*

Shelves

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated
Weight

(lbs.)

(kg)

TDB-24-48G-LD 2 144 1 2 49⁄ 24½ 35⁄ ⁄ 115/60/1 7.6 5-15P 7 315

1248 623 905 N/A N/A 2.13 143

†Depth does not include 1¼" (32 mm) for door handle and 1" (26 mm) for rear bumpers.
* Height does not include 15¼" (388 mm) for draft arm.

T

RUE

R

EFRIGERATION

MADE IN

U.S.A.

SINCE 1945

8/16

®

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

Model:

TDB-24-48G-LD

Underbar Refrigeration:

Glass Swing Door 24" Back Bar/Direct Draw Beer
Dispenser with LED Lighting

STANDARD FEATURES

DESIGN

True’s back bar/direct draw combination

•

coolers are designed with enduring quality
and value. Our commitment to using the
highest quality materials and oversized
refrigeration assures colder product
temperatures and years of trouble free
service.

REFRIGERATION SYSTEM

Factory engineered, self-contained,

•

capillary tube system using
environmentally friendly (CFC free) 134A
refrigerant.
Extra large evaporator coil balanced with

•

higher horsepower compressor and large
condenser; maintains cabinet temperatures
of 33°F to 38°F (.5°C to 3.3°C).
Sealed, cast iron, self-lubricating

•

evaporator fan motor(s) and larger fan
blades give True merchandisers a more
ecient low velocity, high volume airow
design. This unique design ensures faster
temperature pull down of warm product,
colder holding temperatures and faster
recovery in high use situations.
Condensing unit accessed from behind

•

front grill, slides out for easy cleaning and
maintanance.

CABINET CONSTRUCTION

Exterior - heavy duty, wear resistant

•

laminated black vinyl front and sides.
Matching black aluminum back. All
stainless steel counter top.

Interior - Stainless steel oor with ½"

•

(13 mm) reinforced lip and heavy gauge
galvanized steel walls.
Door threshold protector prevents damage

•

to cabinet from routine loading of product.
Insulation - entire cabinet structure is

•

foamed-in-place using Ecomate. A high
density, polyurethane insulation that has
zero ozone depletion potential (ODP) and
zero global warming potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.
3" (77 mm) diameter stainless steel

•

insulated beer column. Cold air is
channeled directly into beer column to
reduce foaming and maximize draft beer
prots.

DOORS

"Low-E", double pane thermal glass door

•

assemblies with extruded aluminum
frames. The latest in energy ecient
technology.
Each door tted with 12" (305 mm) long

•

extruded aluminum handle.
Positive seal doors.

•

Magnetic door gaskets of one piece

•

construction, removable without tools for
ease of cleaning.
Door locks standard.

•

SHELVING

Two (2) adjustable, heavy duty, black PVC

•

coated wire shelves 17¾ "L x 16 ¼"D (451
mm x 413 mm). Four (4) chrome plated
shelf clips included per shelf.

Aluminum shelf support pilasters. Shelves

•

are adjustable on ½ " (13 mm) increments.

LIGHTING

LED interior lighting provides more even

•

lighting throughout the cabinet. Safety
shielded.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
Designed to accommodate a variety of

•

beer kegs.
Listed under NSF-7 for the storage and/or

•

display of packaged or bottled product.

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord and
plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ 2 ½" (64 mm) diameter castors.
❑ 4" (102 mm) diameter castors.
❑
❑ Double headed draft standard.
❑ Two- or three-way manifold.
❑ Draft cap.

PLAN VIEW

1

/2"(13 mm)

Barbed
Drain Fitting

217/32"

(65 mm)

1

/2"

(13 mm)

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone] • Fax [phone] • Toll Free [phone] • Intl. Fax# [phone] • www.truemfg.com

WARRANTY

warranty on compressor.

(U.S.A. only)

491/16"

(1247 mm)

477/8"

(1217 mm)

473/8"

(1204 mm)

ELEVATION PLAN VIEWRIGHT VIEW

*

2615/32"

(673 mm)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

TRUE FOOD SERVICE EQUIPMENT

2519/32"

(651 mm)

(251 mm)

201/4"

(515 mm)

927/32"

153/4"

(400 mm)

(1305 mm)

355/8"

(905 mm)

KCL

2011/32"

(517 mm)

1415/32"

(368 mm)

1211/32"

513/8"

(314 mm)

719/32"

(193 mm)

Model Elevation Right Plan 3D Back

TDB-24-48G-LD TFSY06E TFSY06S TFSY06P TFSY063

15/32"

(30 mm)

247/32"

(616 mm)

1811/32"

(466 mm)

19

/32"

(16 mm)

1"

(26 mm)

247/16"

(621 mm)

179/16"

(447 mm)

43"

(1093 mm)
