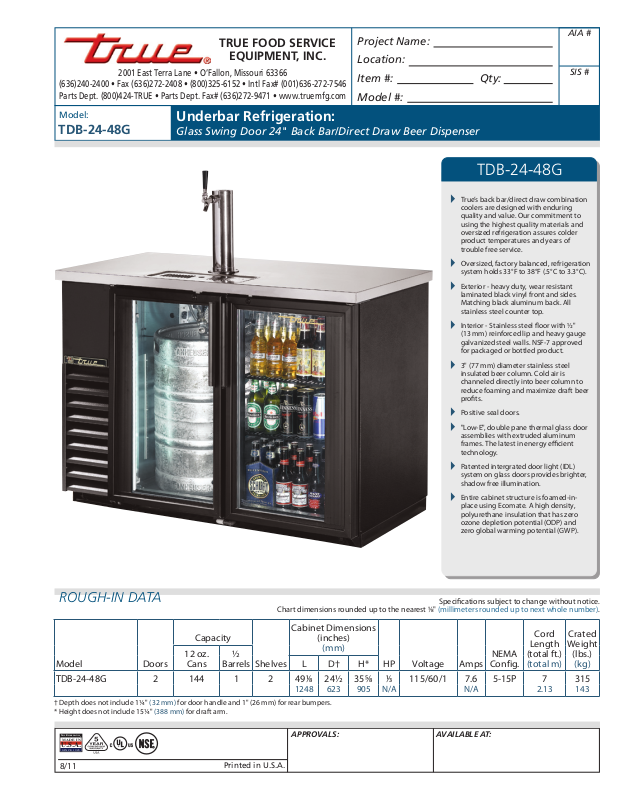

True TDB-24-48G User Manual

TRUE FOOD SERVICE

T

RUE

R

EFRIGERAT ION

MADE IN

SINCE 1945

U.S.A.

®

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TDB-24-48G

Underbar Refrigeration:

Glass Swing Door 24" Back Bar/Direct Draw Beer Dispenser

True’s back bar/direct draw combination



coolers are designed with enduring
quality and value. Our commitment to
using the highest quality materials and
oversized refrigeration assures colder
product temperatures and years of
trouble free service.

Oversized, factory balanced, refrigeration



system holds 33°F to 38°F (.5°C to 3.3°C).

Exterior - heavy duty, wear resistant



laminated black vinyl front and sides.
Matching black aluminum back. All
stainless steel counter top.

Interior - Stainless steel oor with ½"
(13 mm) reinforced lip and heavy gauge
galvanized steel walls. NSF-7 approved
for packaged or bottled product.

3" (77 mm) diameter stainless steel



insulated beer column. Cold air is
channeled directly into beer column to
reduce foaming and maximize draft beer
prots.

Positive seal doors.



"Low-E", double pane thermal glass door



assemblies with extruded aluminum
frames. The latest in energy ecient
technology.

Patented intergrated door light (IDL)



system on glass doors provides brighter,
shadow free illumination.

Entire cabinet structure is foamed-in-



place using Ecomate. A high density,
polyurethane insulation that has zero
ozone depletion potential (ODP) and
zero global warming potential (GWP).

TDB-24-48G

Rough-In Data

Model Doors

Capacity

12 oz.

Cans

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

½

Barrels L D† H*

Shelves

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated
Weight

(lbs.)

(kg)

TDB-24-48G 2 144 1 2 49⁄ 24½ 35⁄ ⁄ 115/60/1 7.6 5-15P 7 315

1248 623 905 N/A N/A 2.13 143

† Depth does not include 1¼" (32 mm) for door handle and 1" (26 mm) for rear bumpers.
* Height does not include 15¼" (388 mm) for draft arm.

ApprovAls: AvAilAble At:

8/11

Printed in U.S.A.

Model:

TDB-24-48G

Underbar Refrigeration:

Glass Swing Door 24" Back Bar/Direct Draw Beer
Dispenser

StanDaRD FeatuReS

DESIGN

True’s back bar/direct draw combination coolers

•

are designed with enduring quality and value.
Our commitment to using the highest quality
materials and oversized refrigeration assures
colder product temperatures and years of
trouble free service.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) 134A refrigerant.
Extra large evaporator coil balanced with higher

•

horsepower compressor and large condenser;
maintains cabinet temperatures of 33°F to 38°F
(.5°C to 3.3°C).
Sealed, cast iron, self-lubricating evaporator

•

fan motor(s) and larger fan blades give True
merchandisers a more ecient low velocity,
high volume airow design. This unique design
ensures faster temperature pull down of warm
product, colder holding temperatures and faster
recovery in high use situations.
Condensing unit accessed from behind

•

front grill, slides out for easy cleaning and
maintanance.

CABINET CONSTRUCTION

Exterior - heavy duty, wear resistant laminated

•

black vinyl front and sides. Matching black
aluminum back. All stainless steel counter top.
Interior - Stainless steel oor with •½" (13 mm)
reinforced lip and heavy gauge galvanized steel
walls.
Door threshold protector prevents damage to

•

cabinet from routine loading of product.
Insulation - entire cabinet structure is foamed-

•

in-place using Ecomate. A high density,
polyurethane insulation that has zero ozone
depletion potential (ODP) and zero global
warming potential (GWP).

Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.
3" (77 mm) diameter stainless steel insulated

•

beer column. Cold air is channeled directly into
beer column to reduce foaming and maximize
draft beer prots.

DOORS

"Low-E", double pane thermal glass door

•

assemblies with extruded aluminum frames. The
latest in energy ecient technology.
Each door tted with 12" (305 mm) long

•

extruded aluminum handle.
Positive seal doors.

•

Magnetic door gaskets of one piece

•

construction, removable without tools for ease
of cleaning.

SHELVING

Two (2) adjustable, heavy duty, black PVC

•

coated wire shelves 17¾ "L x 18"D (451 mm
x 458 mm). Four (4) chrome plated shelf clips
included per shelf.
Aluminum shelf support pilasters. Shelves are

•

adjustable on ½" (13 mm) increments.

LIGHTING

Fluorescent interior lighting. Each glass door

•

utilizes full-length, patented, integrated door
light (IDL) system. Safety shielded.
Cabinet lighting utilizes electronic ballast and

•

T-8 bulbs for brighter illumination, longer bulb
life and increased energy eciency.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
Designed to accommodate a variety of beer

•

kegs.
Listed under NSF-7 for the storage and/or

•

display of packaged or bottled product.

ELECTRICAL

Unit completely pre-wired at factory and ready

•

for nal connection to a 115/60/1 phase, 15 amp
dedicated outlet. Cord and plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

6" (153 mm) standard legs. ❑
6" (153 mm) seismic/anged legs. ❑
2 ❑ ½" (64 mm) diameter castors.
4" (102 mm) diameter castors. ❑
TrueTrac one (1) Liter beer or wine bottle ❑
organizers.
TrueTrac 12 oz. (355 ml) beer bottle organizers. ❑
Double headed draft standard. ❑
Two- or three-way manifold. ❑
Draft cap. ❑
Remote cabinets (condensing unit supplied ❑
by others; system comes standard with 404A
expansion valve and requires R404A refrigerant).
Consult factory technical service department for
BTU information. All remote units must be hard
wired during installation.

Plan VIew

One year warranty on all parts

WARRANTY

and labor and an additional 4
year warranty on compressor.

(U.S.A. only)

2001 East Terra Lane • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

TRUE FOOD SERVICE EQUIPMENT

KCL

Model Elevation Right Plan 3D Back

TDB-24-48G TFSY06E TFSY06S TFSY06P TFSY063
