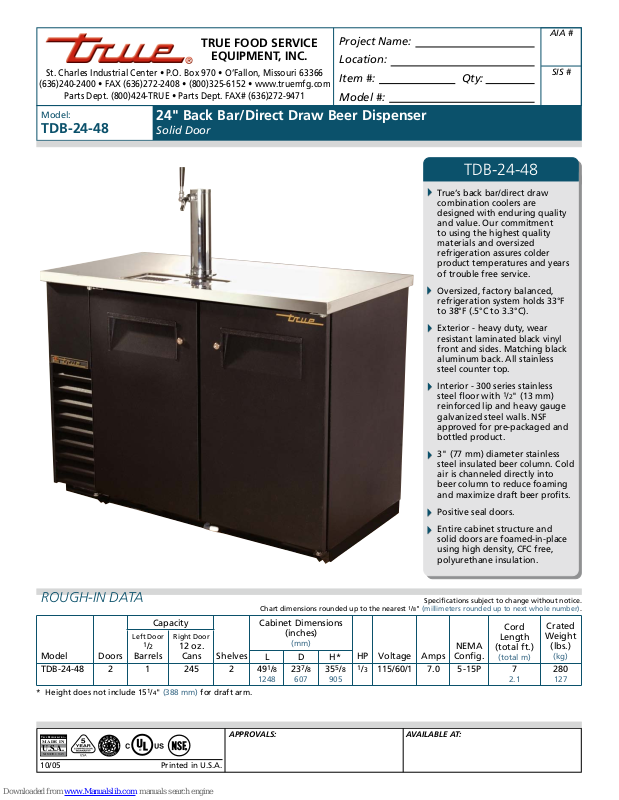

True TDB-24-48 Specifications

TRUE FOOD SERVICE

EQUIPMENT, INC.

St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366

[phone] • FAX [phone] • [phone] • www.truemfg.com

Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TDB-24-48

24" Back Bar/Direct Draw Beer Dispenser

Solid Door

TDB-24-48

True’s back bar/direct draw
combination coolers are
designed with enduring quality
and value. Our commitment
to using the highest quality
materials and oversized
refrigeration assures colder
product temperatures and years
of trouble free service.

Oversized, factory balanced,
refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C).

Exterior - heavy duty, wear
resistant laminated black vinyl
front and sides. Matching black
aluminum back. All stainless
steel counter top.

Interior - 300 series stainless
steel fl oor with
reinforced lip and heavy gauge
galvanized steel walls. NSF
approved for pre-packaged and
bottled product.

1

/2" (13 mm)

3" (77 mm) diameter stainless
steel insulated beer column. Cold
air is channeled directly into
beer column to reduce foaming
and maximize draft beer profi ts.

Positive seal doors.

Entire cabinet structure and
solid doors are foamed-in-place
using high density, CFC free,
polyurethane insulation.

ROUGH-IN DATA

Chart dimensions rounded up to the nearest

Capacity

Model Doors

Left Door

1

Barrels

/2

Right Door

12 oz.

Cans

Shelves

TDB-24-48 2 1 245 2 49

* Height does not include 151/4" (388 mm) for draft arm.

T

RUE

R

EFRIGERATION

MADE IN

U.S.A.

SINCE 1945

10/05

TM

®

R

Printed in U.S.A.

APPROVALS:

Cabinet Dimensions

(inches)

(mm)

LDH*

1

/8

1248

237/8

607

355/8

905

HP Voltage Amps

1

/3 115/60/1 7.0 5-15P 7

Specifi cations subject to change without notice.

1

/8" (millimeters rounded up to next whole number).

Crated

Weight

(lbs.)

(kg)

NEMA

Confi g.

Cord

Length

(total ft.)

(total m)

280

2.1

AVAILABLE AT:

127

Model:

TDB-24-48

24" Back Bar/Direct Draw Beer Dispenser

Solid Door

STANDARD FEATURES

DESIGN

• True’s back bar/direct draw combination
coolers are designed with enduring
quality and value. Our commitment to
using the highest quality materials and
oversized refrigeration assures colder
product temperatures and years of
trouble free service.

REFRIGERATION SYSTEM

• Factory engineered self-contained,
capillary tube system using
environmentally friendly (CFC free)
134A refrigerant.

• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains cabinet temperatures
of 33°F to 38°F (.5°C to 3.3°C).

• Sealed, cast iron, self-lubricating
evaporator fan motor and larger fan
blades give True merchandisers a more
effi cient low velocity, high volume
airfl ow design. This unique design
insures faster temperature pull down
of warm product, colder holding
temperatures and faster recovery in high
use situations.

• Condensing unit accessed from behind
front grill, slides out for easy cleaning
and maintanance.

CABINET CONSTRUCTION

• Exterior - heavy duty, wear resistant
laminated black vinyl front and sides.
Matching black aluminum back. All
stainless steel counter top.

• Interior - 300 series stainless steel fl oor

1

with

/2" (13 mm) reinforced lip and

heavy gauge galvanized steel walls.

• Insulation - entire cabinet structure
foamed-in-place using high density, CFC
free, polyurethane insulation.

• Welded, heavy duy galvanized frame rail
dipped in rust inhibiting enamel paint
for corrosion protection inside and out.

• 3" (77 mm) diameter stainless steel
insulated beer column. Cold air is
channeled directly into beer column
to reduce foaming and maximize draft
beer profi ts.

DOORS

• Wear-resistant laminated black vinyl
exterior with heavy gauge galvanized
steel liner.

• Positive deal doors.

• Each door fi tted with 12" (305 mm)
long recessed handle that are foamed­in-place with a sheet metal interlock to
insure permanent attachment.

• Magnetic door gaskets of one piece
construction, removable without tools
for ease of cleaning.

• Door locks standard.

SHELVING

• Two (2) adjustable, heavy duty, black
PVC coated wire shelves 17

3

/4"L x 18"D
(451 mm x 458 mm). Four (4) chrome
plated shelf clips included per shelf.

• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on

1

/2" (13 mm) increments.

LIGHTING

• Fluorescent interior lighting. Safety
shielded.

MODEL FEATURES

• Designed to accommodate a variety of
beer kegs.

• Evaporator is epoxy coated to eliminate
the potential of corrosion.

• Listed under NSF-7 for the storage
and/or display of packaged or bottled
product.

ELECTRICAL

• Unit completely pre-wired at factory and
ready for fi nal connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord
and plug set included.

115/60/1
NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❒

6" (153 mm) standard legs.

❒

6" (153 mm) seismic/fl anged legs.

❒

21/2" (64 mm) diameter castors.

❒

4" (102 mm) diameter castors.

❒

TrueTrac One liter or wine bottle

organizers.

❒

TrueTrac 12 oz. (355 ml) bottle

organizers.

❒

Double headed draft column.

❒

Two-way manifold.

❒

Three-way manifold.

❒

Draft cap.

❒ Remote cabinets (condensing units

supplied by others; system comes
standard with 404A expansion valve and
requires R404A refrigerant). Consult
factory technical service department for
BTU information.

PLAN VIEW

491/16"

1

/2"(13 mm)

Barbed T

Drain Fitting

37/8"

(99 mm)

1

/2"

(13 mm)

(1247 mm)

477/8"

(1217 mm)

2615/32"

(673 mm)

473/8"

(1204 mm)

ELEVATION

One year warranty on all parts

WARRANTY

& labor and an additional 4 year

warranty on compressor.

(U.S.A. only)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

TRUE FOOD SERVICE EQUIPMENT

St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com

927/32"

(251 mm)

201/4"

(515 mm)

RIGHT VIEW

KCL

151/4"

(388 mm)

2313/16"

(605 mm)

355/8"

(905 mm)

507/8"

(1293 mm)

183/8"

(467 mm)

PLAN VIEW

Model Elevation Right Plan 3D

TDB-24-48 TFSY05E TFSY05S TFSY05P TFSY053

423/16"

(1072 mm)
