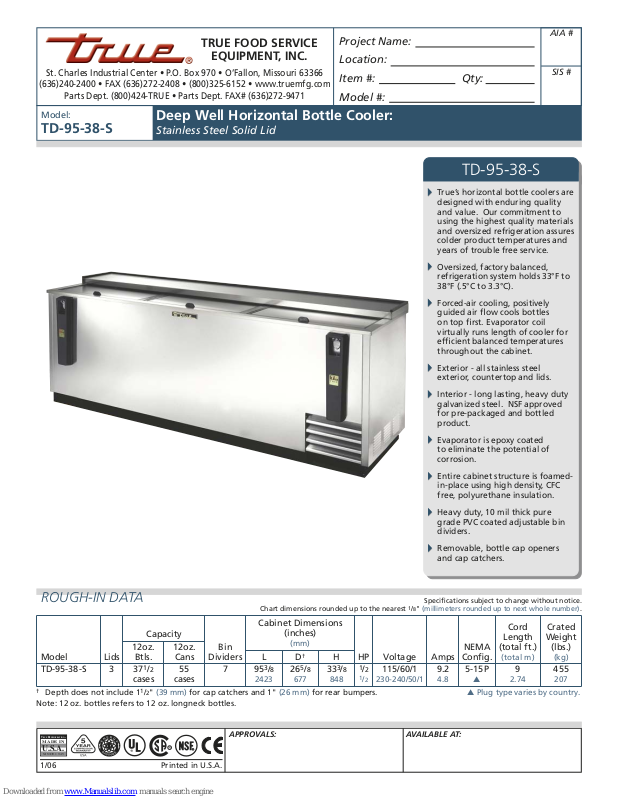

Model:

TD-95-38-S

Deep Well Horizontal Bottle Cooler:

Stainless Steel Solid Lid

TD-95-38-S

True’s horizontal bottle coolers are
designed with enduring quality
and value. Our commitment to
using the highest quality materials
and oversized refrigeration assures
colder product temperatures and
years of trouble free service.

Oversized, factory balanced,
refrigeration system holds 33°F to
38°F (.5°C to 3.3°C).

Forced-air cooling, positively
guided air fl ow cools bottles
on top fi rst. Evaporator coil
virtually runs length of cooler for
effi cient balanced temperatures
throughout the cabinet.

Exterior - all stainless steel
exterior, countertop and lids.

Interior - long lasting, heavy duty
galvanized steel. NSF approved
for pre-packaged and bottled
product.

Evaporator is epoxy coated
to eliminate the potential of
corrosion.

Entire cabinet structure is foamed­in-place using high density, CFC
free, polyurethane insulation.

Heavy duty, 10 mil thick pure
grade PVC coated adjustable bin
dividers.

Removable, bottle cap openers
and cap catchers.

ROUGH-IN DATA

Capacity

12oz.

Model Lids

Btls.

TD-95-38-S 3 371/2

cases

†

Depth does not include 11/2" (39 mm) for cap catchers and 1" (26 mm) for rear bumpers. ▲ Plug type varies by country.

Note: 12 oz. bottles refers to 12 oz. longneck bottles.

T

RUE

R

EFRIGERATION

TM

MADE IN

U.S.A.

SINCE 1945

1/06

12oz.

Cans

55

cases

R

Printed in U.S.A.

Bin

Dividers

795

APPROVALS:

Chart dimensions rounded up to the nearest

Cabinet Dimensions

(inches)

(mm)

LD†H

3

/8

265/8

2423

677

333/8

HP Voltage Amps

1

/2

115/60/1

1

848

/2

230-240/50/1

Specifi cations subject to change without notice.

1

/8" (millimeters rounded up to next whole number).

Crated

Weight

(lbs.)

(kg)

455

207

9.2

4.8

AVAILABLE AT:

NEMA

Confi g.

5-15P

▲

Cord

Length

(total ft.)

(total m)

9

2.74

Model:

TD-95-38-S

Deep Well Horizontal Bottle Cooler:

Stainless Steel Solid Lid

STANDARD FEATURES

DESIGN

• True’s horizontal bottle coolers are
designed with enduring quality and
value. Our commitment to using
the highest quality materials and
oversized refrigeration assures colder
product temperatures and years of
trouble free service.

REFRIGERATION SYSTEM

• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
134A refrigerant.

• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains
cabinet temperatures of 33°F to 38°F
(.5°C to 3.3°C).

• Sealed, cast iron, self-lubricating
evaporator fan motors and larger fan
blades give True bottle coolers a more
effi cient low velocity, high volume
airfl ow design. This unique design
insures colder standard temperatures
and faster recovery in high use
situations.

• Condensing unit accessed from
behind front grill, slides out for easy
maintenance.

• Forced-air cooling, positively guided
airfl ow cools bottles on top fi rst.
Evaporator coil virtually runs length
of cooler for balanced temperatures
throughout the cabinet.

CABINET CONSTRUCTION

• Exterior - all stainless steel exterior,
countertop and lids.

• Interior - long lasting, heavy duty
galvanized steel.

• Insulation - entire cabinet structure is
foamed-in-place using high density,
CFC free, polyurethane insulation.

• Welded, heavy duty galvanized frame
rail dipped in rust inhibiting enamel
paint for corrosion protection inside
and out.

• Removable, bottle cap opener and cap
catchers.

BIN DIVIDERS

• Seven (7) heavy duty, 10 mil thick
pure grade PVC coated adjustable bin
dividers to maximize storage (center
section uses 1 divider of a different
size than left and right section
dividers).

MODEL FEATURES

• Evaporator is epoxy coated to
eliminate the potential of corrosion.

• Listed under NSF-7 for the storage
and/or display of pre-packaged and
bottled product.

ELECTRICAL

• Unit completely pre-wired at factory
and ready for fi nal connection to a
115/60/1 phase - 15 amp dedicated
outlet. Cord and plug set included.

115/60/1
NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❒ 230-240/50Hz
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/fl anged legs.

1

❒ 2

/2" (64 mm) diameter castors.

❒ 3" (77 mm) diameter castors.
❒ Ratchet locks. Requires one per lid.
❒ Low temperature models hold 20°F

(-6.7°C) for applications with high
ambient temperatures. Designed for
full alcohol beverages only [some low
alcohol products freeze below 32°F
(0°C)].

❒ Remote cabinets (condensing unit

supplied by others; system comes
standard with 404A expansion valve
and requires 404A refrigerant).
Consult factory technical service
department for BTU information.

PLAN VIEW

29"

(737 mm)

28"

(712 mm)

269/16"

(675 mm)

123/4"

(324 mm)

17/16"

(37 mm)

243/4"

(629 mm)

RIGHT VIEW

KCL

(2421 mm)

333/8"

(848 mm)

ELEVATION

One year warranty on all parts

& labor and an additional 4 year

WARRANTY

warranty on compressor.

(U.S.A. only)

955/16"

9211/16"

(2355 mm)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

31/16"

(78 mm)

TRUE FOOD SERVICE EQUIPMENT

St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com

1"

(26 mm)

121/4"

(312 mm)

87/8"

(226 mm)

273/4"

(705 mm)

PLAN VIEW

Model Elevation Right Plan 3D

TD-95-38-S TFKY01E TFKY01S TFKY01P TFKY013
