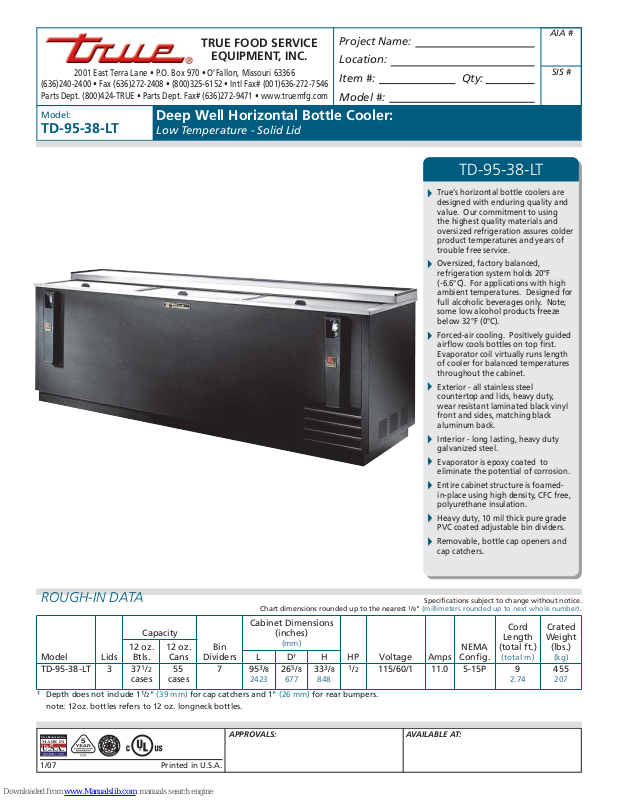

True TD-95-38-LT Specifications

TRUE FOOD SERVICE

.S.A.

EQUIPMENT, INC.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TD-95-38-LT

Deep Well Horizontal Bottle Cooler:

Low Temperature - Solid Lid

TD-95-38-LT

True’s horizontal bottle coolers are
designed with enduring quality and
value. Our commitment to using
the highest quality materials and
oversized refrigeration assures colder
product temperatures and years of
trouble free service.

Oversized, factory balanced,
refrigeration system holds 20°F
(-6.6°C). For applications with high
ambient temperatures. Designed for
full alcoholic beverages only. Note;
some low alcohol products freeze
below 32°F (0°C).

Forced-air cooling. Positively guided
airfl ow cools bottles on top fi rst.
Evaporator coil virtually runs length
of cooler for balanced temperatures
throughout the cabinet.

Exterior - all stainless steel
countertop and lids, heavy duty,
wear resistant laminated black vinyl
front and sides, matching black
aluminum back.

Interior - long lasting, heavy duty
galvanized steel.

Evaporator is epoxy coated to
eliminate the potential of corrosion.

Entire cabinet structure is foamed­in-place using high density, CFC free,
polyurethane insulation.

Heavy duty, 10 mil thick pure grade
PVC coated adjustable bin dividers.

Removable, bottle cap openers and
cap catchers.

ROUGH-IN DATA

Capacity

12 oz.

Model Lids

Btls.

TD-95-38-LT 3 37

cases

†

Depth does not include 11/2" (39 mm) for cap catchers and 1" (26 mm) for rear bumpers.

note: 12oz. bottles refers to 12 oz. longneck bottles.

T

RUE

R

EFRIGERATION

TM

MADE IN

U.S.A.

U.S.A.

SINCE 1945

1/07

12 oz.

Cans

1

/2

cases

®

Printed in U.S.A.

Dividers

55

1

Chart dimensions rounded up to the nearest

/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

Bin

795

2423

APPROVALS: AVAILABLE AT:

(mm)

LD†H

3

/8

265/8

677

333/8

848

HP Voltage Amps

1

/2 115/60/1 11.0 5-15P 9

Specifi cations subject to change without notice.

Crated

Weight

(lbs.)

(kg)

NEMA

Confi g.

Cord

Length

(total ft.)

(total m)

455

2.74

207

Model:

TD-95-38-LT

Deep Well Horizontal Bottle Cooler:

Low Temperature Solid Lid

STANDARD FEATURES

DESIGN

• True’s horizontal bottle coolers are
designed with enduring quality
and value. Our commitment to
using the highest quality materials
and oversized refrigeration assures
colder product temperatures and
years of trouble free service.

REFRIGERATION SYSTEM

• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
R404A refrigerant.

• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser.

• Maintains 20°F (-6.6°C) for
applications with high ambient
temperatures. Designed for full
alcoholic beverages only. Note;
some low alcohol products freeze
below 32°F (0°C).

• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger
fan blades give True merchandisers
a more effi cient low velocity, high
volume airfl ow design. This unique
design insures colder standard
temperatures and faster recovery in
high use situations.

• Condensing unit accessed from
behind front grill, slides out for
easy maintenance.

• Automatic defrost system time­initiated, time-terminated.

• Forced-air cooling. Positively
guided air fl ow cools bottles on
top fi rst. Evaporator coil virtually
runs length of cooler for balanced
temperatures throughout the
cabinet.

CABINET CONSTRUCTION

• Exterior - all stainless steel
countertop and lids, heavy duty,
wear resistant laminated black vinyl
front and sides, matching black
aluminum back.

• Interior - long lasting, heavy duty
galvanized steel.

• Insulation - entire cabinet structure
is foamed-in-place using high
density, CFC free, polyurethane
insulation.

• Welded, heavy duty galvanized
base rail dipped in rust inhibiting
enamel paint for corrosion
protection inside and out.

• Removable, bottle cap openers and
cap catchers.

BIN DIVIDERS

• Seven (7) heavy duty, 10 mil thick
pure grade PVC coated adjustable
bin dividers to maximize storage.

MODEL FEATURES

• Evaporator is epoxy coated
to eliminate the potential of
corrosion.

ELECTRICAL

• Unit completely pre-wired at
factory and ready for fi nal
connection to a 115/60/1 phase - 15
amp dedicated outlet. Cord and
plug set included.

115/60/1
NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/fl anged legs.

1

❒ 2

/2" (64 mm) diameter rail castors.

❒ 3" (77 mm) diameter rail castors.
❒ Ratchet locks and handles. Requires

one per lid.

❒ Remote cabinets (condensing unit

supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant).
Consult factory technical service
department for BTU information.

PLAN VIEW

273/4"

(705 mm)

333/8"

(848 mm)

One year warranty on all parts

and labor and an additional 4
year warranty on compressor.

WARRANTY

(U.S.A. only)

955/16"

(2421 mm)

925/8"

(2353 mm)

METRIC DIMENSIONS ROUNDED UP TO THE

ELEVATION

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

KCL

87/8"

(226 mm)

17/16"

(37 mm)

313/8"

(797 mm)

31/16"

(78 mm)

Model Elevation Right Plan 3D

TD-95-38-LT TFKY01E TFKY01S TFKY01P TFKY013

29"

(737 mm)

28"

(712 mm)

269/16"

(675 mm)

123/4"

(324 mm)

2"

(51 mm)

RIGHT VIEW

1"

(26 mm)

TRUE FOOD SERVICE EQUIPMENT

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
