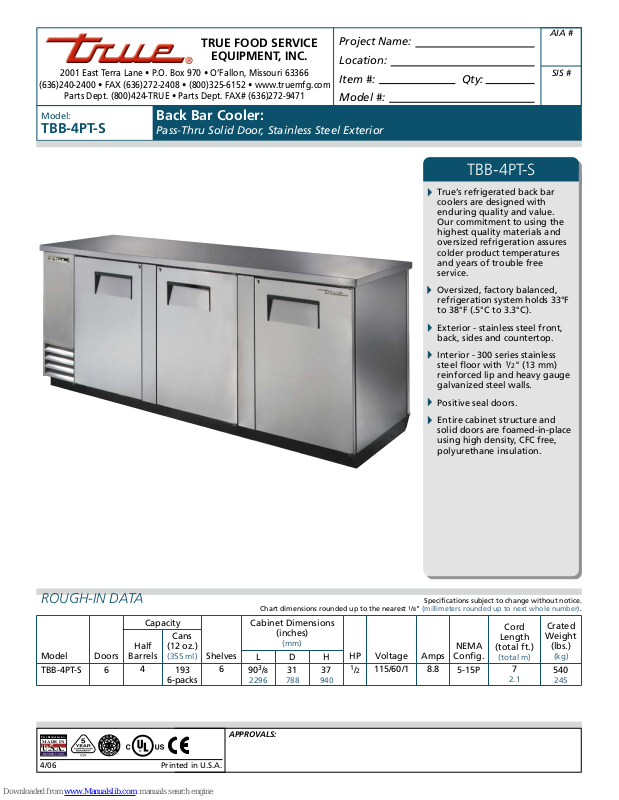

Model:

TBB-4PT-S

Back Bar Cooler:

Pass-Thru Solid Door, Stainless Steel Exterior

TBB-4PT-S

True’s refrigerated back bar
coolers are designed with
enduring quality and value.
Our commitment to using the
highest quality materials and
oversized refrigeration assures
colder product temperatures
and years of trouble free
service.

Oversized, factory balanced,
refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C).

Exterior - stainless steel front,
back, sides and countertop.

Interior - 300 series stainless
steel fl oor with
reinforced lip and heavy gauge
galvanized steel walls.

Positive seal doors.

1

/2" (13 mm)

ROUGH-IN DATA

Model
TBB-4PT-S 6

Doors

Capacity

Half

Barrels

4

Cans

(12 oz.)

(355 ml)

193

6-packs

Shelves

6

Chart dimensions rounded up to the nearest

Cabinet Dimensions

(inches)

(mm)

LDH

903/8

229631788

HP Voltage Amps

1

37

940

115/60/1 8.8

/2

Entire cabinet structure and
solid doors are foamed-in-place
using high density, CFC free,
polyurethane insulation.

Specifi cations subject to change without notice.

1

/8" (millimeters rounded up to next whole number).

Crated

Weight

(lbs.)

(kg)

540

245

NEMA

Confi g.

5-15P

Cord

Length

(total ft.)

(total m)

7

2.1

T

RUE

R

EFRIGERATION

TM

MADE IN

U.S.A.

U.S.A.

SINCE 1945

4/06

®

Printed in U.S.A.

APPROVALS:

Model:

TBB-4PT-S

Back Bar Cooler:

Pass-Thru Solid Door, Stainless Steel Exterior

STANDARD FEATURES

DESIGN

• True’s refrigerated back bar coolers
are designed with enduring quality
and value. Our commitment to using
the highest quality materials and
oversized refrigeration assures colder
product temperatures and years of
trouble free service.

REFRIGERATION SYSTEM

• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
134A refrigerant.

• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains
cabinet temperatures of 33°F to 38°F
(.5°C to 3.3°C).

• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger
fan blades give True merchandisers
a more effi cient low velocity, high
volume airfl ow design. This unique
design insures faster temperature
pull down of warm product, colder
holding temperatures and faster
recovery in high use situations.

• Condensing unit accessed from behind
front grill, slides out for easy cleaning
and maintenance.

CABINET CONSTRUCTION

• Exterior - stainless steel front, back,
sides and countertop.

• Interior - 300 series stainless steel fl oor

1

with

/2" (13 mm) reinforced lip and

heavy gauge galvanized steel walls.

• Insulation - entire cabinet structure is
foamed-in-place using high density,
CFC free, polyurethane insulation.

• Welded, heavy duty galvanized frame
rail dipped in rust inhibiting enamel
paint for corrosion protection inside
and out.

DOORS

• Stainless steel exterior with heavy
gauge galvanized steel liner.

• Each door fi tted with 12"

(305 mm) long recessed handles that

are foamed-in-place with a sheet
metal interlock to insure permanent
attachment.

• Positive seal doors.

• Magnetic door gaskets of one piece
construction, removable without tools
for ease of cleaning.

• Door locks standard.

SHELVING

• Six (6) adjustable, heavy duty, black
PVC coated wire shelves. Two (2) right
and two (2) left shelf dimensions are

1

23

/2"L x 211/4"D (597 mm x 540 mm).

Two (2) center shelf dimensions are

1

28

/4"L x 211/4"D (718 mm x 540 mm).
Four (4) chrome plated shelf clips
included per shelf.

• Aluminum shelf support pilasters.
Shelves are adjustable on

1

/2" (13 mm)

increments.

LIGHTING

• Fluorescent interior lighting.

MODEL FEATURES

• Evaporator is epoxy coated to
eliminate the potential of corrosion.

ELECTRICAL

• Unit completely pre-wired at factory
and ready for fi nal connection to a
115/60/1 phase - 15 amp dedicated
outlet. Cord and plug set included.

115/60/1
NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/fl anged legs.

1

❒ 2

/2" (64 mm) diameter castors.

❒ 4" (102 mm) diameter castors.
❒ Wine racks.
❒ TrueTrac one (1) liter beer or wine

bottle organizers.

❒ TrueTrac 12 oz. (355 ml) beer bottle

product organizers.

❒ Remote cabinets (condensing units

supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant).
Consult factory technical service
department for BTU information.

PLAN VIEW

2015/16"

(532 mm)

905/16"

(2294 mm)

89"

(2261 mm)

37"

(940 mm)

3"

(77 mm)

One year warranty on all parts

& labor and an additional 4 year

WARRANTY

warranty on compressor.

(U.S.A. only)

881/2"

(2248 mm)

ELEVATION

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE
