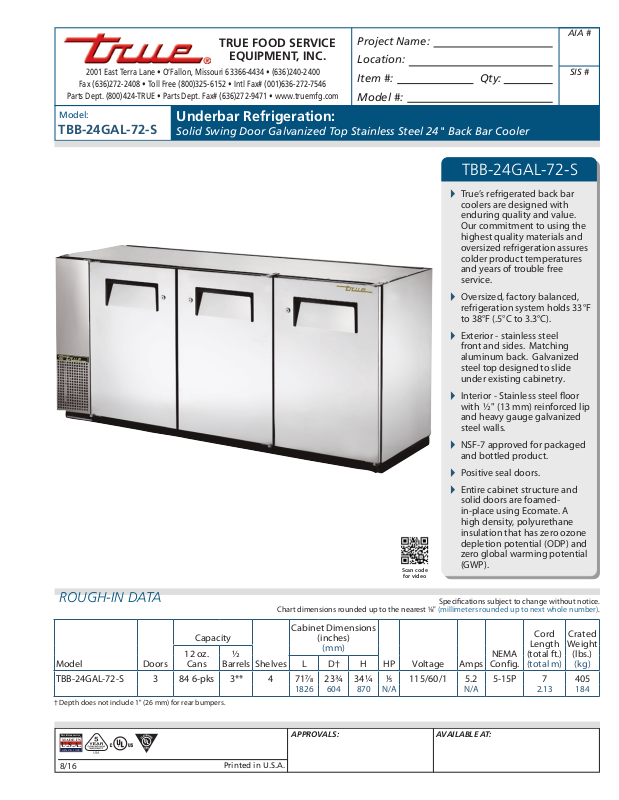

Model:

TBB-24GAL-72-S

Underbar Refrigeration:

Solid Swing Door Galvanized Top Stainless Steel 24" Back Bar Cooler

TBB-24GAL-72-S

True’s refrigerated back bar



coolers are designed with
enduring quality and value.
Our commitment to using the
highest quality materials and
oversized refrigeration assures
colder product temperatures
and years of trouble free
service.

Oversized, factory balanced,



refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C).

Exterior - stainless steel



front and sides. Matching
aluminum back. Galvanized
steel top designed to slide
under existing cabinetry.

Interior - Stainless steel oor



with ½" (13 mm) reinforced lip
and heavy gauge galvanized
steel walls.

NSF-7 approved for packaged



and bottled product.

Positive seal doors.



Entire cabinet structure and



solid doors are foamed­in-place using Ecomate. A
high density, polyurethane
insulation that has zero ozone
depletion potential (ODP) and
zero global warming potential

Scan cod e

for video

(GWP).

ROUGH-IN DATA

Model Doors

Capacity

12 oz.

Cans

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

½

Barrels L D† H

Shelves

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated
Weight

(lbs.)

(kg)

TBB-24GAL-72-S 3 84 6-pks 3** 4 71⁄ 23¾ 34¼ ⁄ 115/60/1 5.2 5-15P 7 405

1826 604 870 N/A N/A 2.13 184

†Depth does not include 1" (26 mm) for rear bumpers.

T

RUE

R

EFRIGERATION

MADE IN

U.S.A.

SINCE 1945

8/16

®

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

Model:

TBB-24GAL-72-S

Underbar Refrigeration:

Solid Swing Door Galvanized Top Stainless Steel
24" Back Bar Cooler

STANDARD FEATURES

DESIGN

True’s refrigerated back bar coolers are

•

designed with enduring quality and value.
Our commitment to using the highest
quality materials and oversized refrigeration
assures colder product temperatures and
years of trouble free service.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) 134A refrigerant.
Extra large evaporator coil balanced with

•

higher horsepower compressor and large
condenser; maintains cabinet temperatures
of 33°F to 38°F (.5°C to 3.3°C).
Sealed, cast iron, self-lubricating evaporator

•

fan motor(s) and larger fan blades give
True back bar coolers a more ecient low
velocity, high volume airow design. This
unique design ensures faster temperature
pull down of warm product, colder holding
temperatures and faster recovery in high
use situations.
Condensing unit accessed from behind

•

front grill, slides out for easy cleaning and
maintenance.

CABINET CONSTRUCTION

Exterior - stainless steel front and sides.

•

Matching aluminum back. Galvanized
steel top designed to slide under existing
cabinetry.
Interior - Stainless steel oor with ½"

•

(13 mm) reinforced lip and heavy gauge
galvanized steel walls.

Door threshold protector prevents damage

•

to cabinet from routine loading of product.
Insulation - entire cabinet structure and

•

solid doors are foamed-in-place using
Ecomate. A high density, polyurethane
insulation that has zero ozone depletion
potential (ODP) and zero global warming
potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.

DOORS

Stainless steel exterior with heavy gauge

•

galvanized steel liner.
Each door tted with 12" (305 mm) long

•

recessed handle that is foamed-in-place
with a sheet metal interlock to ensure
permanent attachment.
Positive seal doors.

•

Magnetic door gaskets of one piece

•

construction, removable without tools for
ease of cleaning.
Door locks standard.

•

SHELVING

Four (4) adjustable, heavy duty, black PVC

•

coated wire shelves. Two (2) long shelves
which span behind the left and center
doors: 40"L x 18"D (1016 mm x 458 mm).
Two (2) shelves behind right door: 19⁄"L x
18"D (493 mm x 458 mm). Four (4) chrome
plated shelf clips included per shelf.
Aluminum shelf support pilasters. Shelves

•

are adjustable on ½" (13 mm) increments.

LIGHTING

Fluorescent interior lighting. Safety

•

shielded.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
Designed to accommodate a variety of

•

beer kegs. Depending on tapping kit used,

½barrels may not t.

Listed under NSF-7 for the storage and/or

•

display of packaged or bottled product.

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord and
plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 230 - 240V / 50 Hz.
❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ 2 ½" (64 mm) diameter castors.
❑ 4" (102 mm) diameter castors.
❑ Additional shelves.

PLAN VIEW

1"

2321/32"

(601 mm)

717/8"

(1826 mm)

347/32"

(870 mm)

713/8"

(1813 mm)

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

WARRANTY

warranty on compressor.

(U.S.A. only)

*

ELEVATION PLAN VIEW

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

2"

(51 mm)

KCL

Model Elevation Right Plan 3D Back

TBB-24GAL-72-S TFJX65E TFJX65S TFJX65P TFJX653
