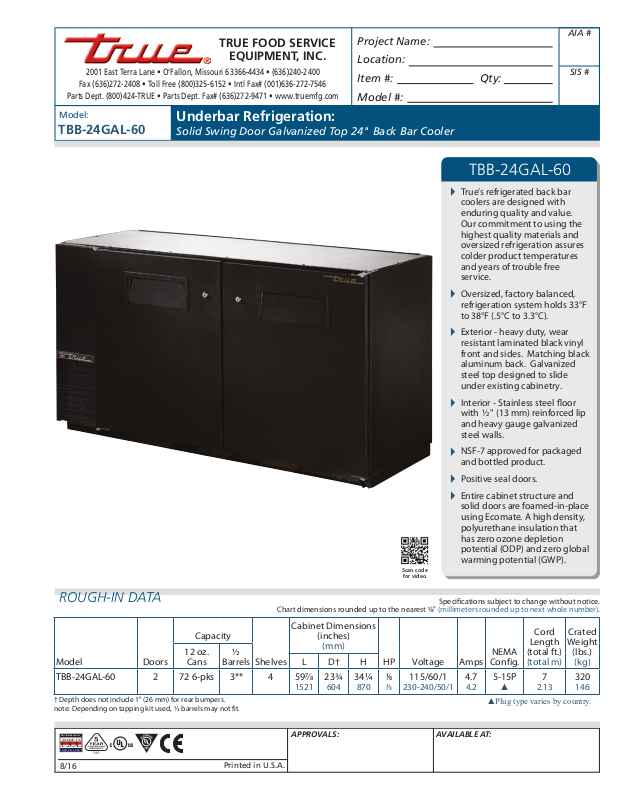

True TBB-24GAL-60 User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone]

Fax [phone] • Toll Free [phone] • Intl Fax# [phone]

Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TBB-24GAL-60

Underbar Refrigeration:

Solid Swing Door Galvanized Top 24" Back Bar Cooler

Scan cod e

for video

TBB-24GAL-60

True’s refrigerated back bar



coolers are designed with
enduring quality and value.
Our commitment to using the
highest quality materials and
oversized refrigeration assures
colder product temperatures
and years of trouble free
service.

Oversized, factory balanced,



refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C).

Exterior - heavy duty, wear



resistant laminated black vinyl
front and sides. Matching black
aluminum back. Galvanized
steel top designed to slide
under existing cabinetry.

Interior - Stainless steel oor



with ½" (13 mm) reinforced lip
and heavy gauge galvanized
steel walls.

NSF-7 approved for packaged



and bottled product.

Positive seal doors.



Entire cabinet structure and



solid doors are foamed-in-place
using Ecomate. A high density,
polyurethane insulation that
has zero ozone depletion
potential (ODP) and zero global
warming potential (GWP).

ROUGH-IN DATA

Model Doors

Capacity

12 oz.

Cans

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

½

Barrels L D† H

Shelves

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated
Weight

(lbs.)

(kg)

TBB-24GAL-60 2 72 6-pks 3** 4 59⁄ 23¾ 34¼ ⁄ 115/60/1 4.7 5-15P 7 320

1521 604 870 ⁄ 230-240/50/1 4.2 ▲ 2.13 146

†Depth does not include 1" (26 mm) for rear bumpers.
note: Depending on tapping kit used, ½barrels may not fit.

T

RUE

R

EFRIGERATION

®

MADE IN

U.S.A.

SINCE 1945

8/16

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

▲Plug type varies by country.

Model:

TBB-24GAL-60

Underbar Refrigeration:

Solid Swing Door Galvanized Top 24" Back Bar
Cooler

STANDARD FEATURES

DESIGN

True’s refrigerated back bar coolers are

•

designed with enduring quality and value.
Our commitment to using the highest
quality materials and oversized refrigeration
assures colder product temperatures and
years of trouble free service.

REFRIGERATION SYSTEM

Factory engineered, self-contained,

•

capillary tube system using environmentally
friendly (CFC free) 134A refrigerant.
Extra large evaporator coil balanced with

•

higher horsepower compressor and large
condenser; maintains cabinet temperatures
of 33°F to 38°F (.5°C to 3.3°C).
Sealed, cast iron, self-lubricating evaporator

•

fan motor(s) and larger fan blades give
True back bar coolers a more ecient low
velocity, high volume airow design. This
unique design ensures faster temperature
pull down of warm product, colder holding
temperatures and faster recovery in high
use situations.
Condensing unit accessed from behind

•

front grill, slides out for easy cleaning and
maintenance.

CABINET CONSTRUCTION

Exterior - heavy duty, wear resistant

•

laminated black vinyl front and sides.
Matching black aluminum back. Galvanized
steel top designed to slide under existing
cabinetry.

Interior - Stainless steel oor with ½"

•

(13 mm) reinforced lip and heavy gauge
galvanized steel walls.
Door threshold protector prevents damage

•

to cabinet from routine loading of product.
Insulation - entire cabinet structure and

•

solid doors are foamed-in-place using
Ecomate. A high density, polyurethane
insulation that has zero ozone depletion
potential (ODP) and zero global warming
potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.

DOORS

Wear-resistant laminated black vinyl

•

exterior with heavy gauge galvanized steel
liner.
Each door tted with 12" (305 mm) long

•

recessed handle that is foamed-in-place
with a sheet metal interlock to ensure
permanent attachment.
Positive seal doors.

•

Magnetic door gaskets of one piece

•

construction, removable without tools for
ease of cleaning.
Door locks standard.

•

SHELVING

Four (4) adjustable, heavy duty, black PVC

•

coated wire shelves 23¾"L x 18"D (604 mm
x 458 mm). Four (4) chrome plated shelf
clips included per shelf.
Aluminum shelf support pilasters. Shelves

•

are adjustable on ½" (13 mm) increments.

LIGHTING

Fluorescent interior lighting. Safety

•

shielded.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
Designed to accommodate a variety of

•

beer kegs. Depending on tapping kit
used, ½barrels may not t.
Listed under NSF-7 for the storage and/or

•

display of packaged or bottled product.

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord and
plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 230 - 240V / 50 Hz.
❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ 2 ½" (64 mm) diameter castors.
❑ 4" (102 mm) diameter castors.
❑ Additional shelves.

PLAN VIEW

1"

(26 mm)

597/8"

(1521 mm)

247/16"

(621 mm)

491/8"

2415/32"

(622 mm)

(1242 mm)

347/32"

(870 mm)

2"

(51 mm)

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

WARRANTY

warranty on compressor.

(U.S.A. only)

*

593/8"

(1509 mm)

ELEVATION

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

KCL

PLAN VIEW

Model Elevation Right Plan 3D Back

TBB-24GAL-60 TFJX28E TFJX28S TFJX28P TFJX283
