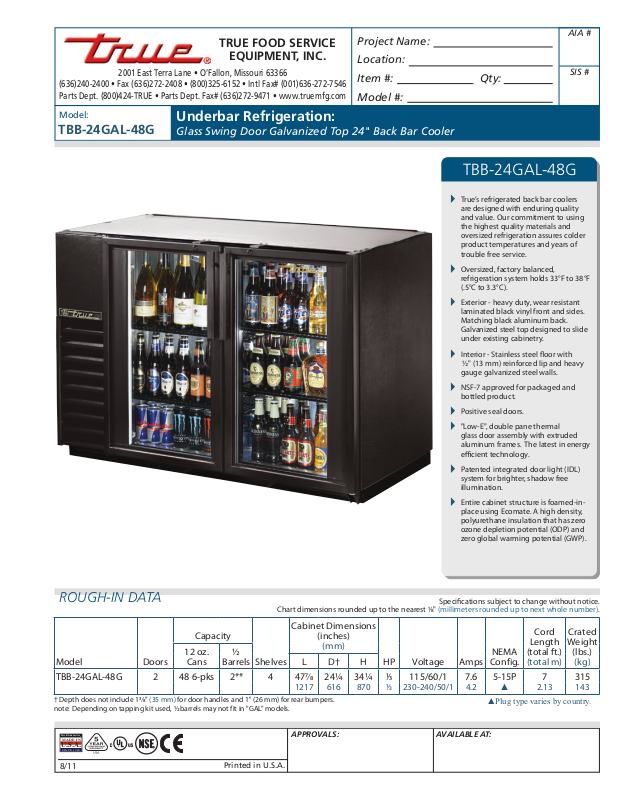

Model:

TBB-24GAL-48G

Underbar Refrigeration:

Glass Swing Door Galvanized Top 24" Back Bar Cooler

TBB-24GAL-48G

True’s refrigerated back bar coolers



are designed with enduring quality
and value. Our commitment to using
the highest quality materials and
oversized refrigeration assures colder
product temperatures and years of
trouble free service.

Oversized, factory balanced,



refrigeration system holds 33°F to 38°F
(.5°C to 3.3°C).

Exterior - heavy duty, wear resistant



laminated black vinyl front and sides.
Matching black aluminum back.
Galvanized steel top designed to slide
under existing cabinetry.

Interior - Stainless steel oor with



½" (13 mm) reinforced lip and heavy

gauge galvanized steel walls.

NSF-7 approved for packaged and



bottled product.

Positive seal doors.



"Low-E", double pane thermal



glass door assembly with extruded
aluminum frames. The latest in energy
ecient technology.

Patented integrated door light (IDL)



system for brighter, shadow free
illumination.

Entire cabinet structure is foamed-in-



place using Ecomate. A high density,
polyurethane insulation that has zero
ozone depletion potential (ODP) and
zero global warming potential (GWP).

Rough-In Data

Model Doors

Capacity

12 oz.

Cans

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

½

Barrels L D† H

Shelves

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated
Weight

(lbs.)

(kg)

TBB-24GAL-48G 2 48 6-pks 2** 4 47⁄ 24¼ 34¼ ⁄ 115/60/1 7.6 5-15P 7 315

1217 616 870 ⁄ 230-240/50/1 4.2 ▲ 2.13 143

† Depth does not include 1⁄" (35 mm) for door handles and 1" (26 mm) for rear bumpers.
note: Depending on tapping kit used, ½barrels may not fit in "GAL" models.

ApprovAls: AvAilAble At:

8/11

Printed in U.S.A.

▲Plug type varies by country.

Model:

TBB-24GAL-48G

Underbar Refrigeration:

Glass Swing Door Galvanized Top 24" Back Bar
Cooler

StanDaRD FeatuReS

DESIGN

True’s refrigerated back bar coolers are

•

designed with enduring quality and value.
Our commitment to using the highest quality
materials and oversized refrigeration assures
colder product temperatures and years of
trouble free service.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) 134A refrigerant.
Extra large evaporator coil balanced with higher

•

horsepower compressor and large condenser;
maintains cabinet temperatures of 33°F to 38°F
(.5°C to 3.3°C).
Sealed, cast iron, self-lubricating evaporator

•

fan motor(s) and larger fan blades give True
back bar coolers a more ecient low velocity,
high volume airow design. This unique design
ensures faster temperature pull down of warm
product, colder holding temperatures and faster
recovery in high use situations.
Condensing unit accessed from behind

•

front grill, slides out for easy cleaning and
maintenance.

CABINET CONSTRUCTION

Exterior - heavy duty, wear resistant laminated

•

black vinyl front and sides. Matching black
aluminum back. Galvanized steel top designed
to slide under existing cabinetry.
Interior - Stainless steel oor with •½" (13 mm)
reinforced lip and heavy gauge galvanized steel
walls.
Door threshold protector prevents damage to

•

cabinet from routine loading of product.

Insulation - entire cabinet structure is foamed-

•

in-place using Ecomate. A high density,
polyurethane insulation that has zero ozone
depletion potential (ODP) and zero global
warming potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.

DOORS

"Low-E", double pane thermal insulated glass

•

door assemblies with extruded aluminum
frames. The latest in energy ecient
technology.
Each door tted with 12" (305 mm) long handle.

•

Positive seal doors.

•

Magnetic door gaskets of one piece

•

construction, removable without tools for ease
of cleaning.
Door locks standard.

•

SHELVING

Four (4) adjustable, heavy duty, black PVC

•

coated wire shelves 17¾ "L x 18"D (451 mm x
458 mm). Four (4) chrome plated shelf clips
included per shelf.
Aluminum shelf support pilasters. Shelves are

•

adjustable on ½" (13 mm) increments.

LIGHTING

Fluorescent interior lighting. Each door utilizes

•

full-length, patented, integrated door light (IDL)
system. Safety shielded.
Cabinet lighting utilizes electronic ballast and

•

T-8 bulbs for brighter illumination, longer bulb
life and increased energy eciency.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
Designed to accommodate a variety of beer

•

kegs. Depending on tapping kit used, ½barrels
may not t.
Listed under NSF-7 for the storage and/or

•

display of packaged or bottled product.

ELECTRICAL

Unit completely pre-wired at factory and ready

•

for nal connection to a 115/60/1 phase, 15 amp
dedicated outlet. Cord and plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

230 - 240V / 50 Hz. ❑
6" (153 mm) standard legs. ❑
6" (153 mm) seismic/anged legs. ❑
2 ❑ ½" (64 mm) diameter castors.
4" (102 mm) diameter castors. ❑
Additional shelves. ❑
TrueTrac one liter or wine bottle organizers. ❑
TrueTrac 12 oz. (355 ml) bottle organizers. ❑
Remote cabinets (condensing unit supplied ❑
by others; system comes standard with 404A
expansion valve and requires R404A refrigerant).
Consult factory technical service department for
BTU information. All remote units must be hard
wired during installation.

Plan VIew

One year warranty on all parts

WARRANTY

and labor and an additional 4
year warranty on compressor.

(U.S.A. only)

2001 East Terra Lane • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

TRUE FOOD SERVICE EQUIPMENT

KCL

Model Elevation Right Plan 3D Back

TBB-24GAL-48G TFJX26E TFJX26S TFJX26P TFJX263
