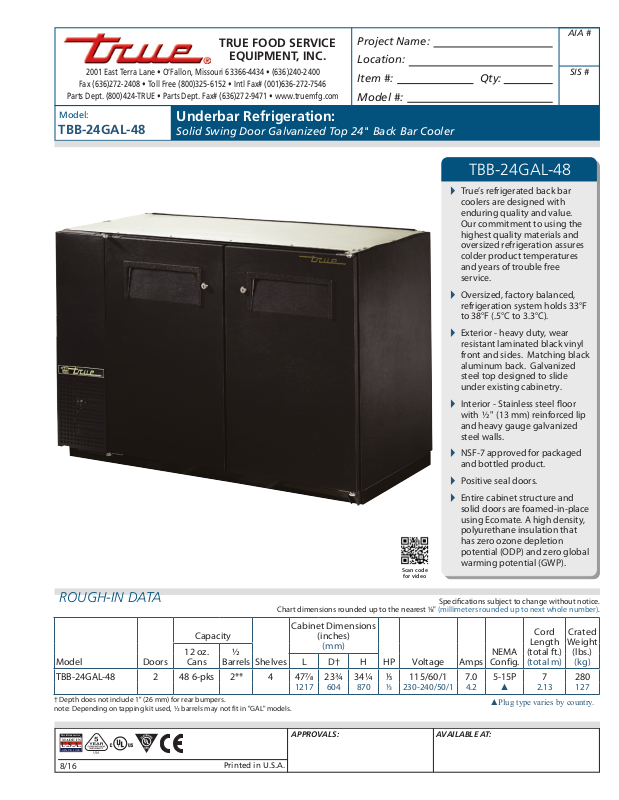

Model:
TBB-24GAL-48
Underbar Refrigeration:
Solid Swing Door Galvanized Top 24" Back Bar Cooler
Scan cod e
for video
TBB-24GAL-48
True’s refrigerated back bar
coolers are designed with
enduring quality and value.
Our commitment to using the
highest quality materials and
oversized refrigeration assures
colder product temperatures
and years of trouble free
service.
Oversized, factory balanced,
refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C).
Exterior - heavy duty, wear
resistant laminated black vinyl
front and sides. Matching black
aluminum back. Galvanized
steel top designed to slide
under existing cabinetry.
Interior - Stainless steel oor
with ½" (13 mm) reinforced lip
and heavy gauge galvanized
steel walls.
NSF-7 approved for packaged
and bottled product.
Positive seal doors.
Entire cabinet structure and
solid doors are foamed-in-place
using Ecomate. A high density,
polyurethane insulation that
has zero ozone depletion
potential (ODP) and zero global
warming potential (GWP).
ROUGH-IN DATA
Model Doors
Capacity
12 oz.
Cans
Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).
Cabinet Dimensions
(inches)
½
Barrels L D† H
Shelves
(mm)
HP Voltage Amps
Specications subject to change without notice.
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
TBB-24GAL-48 2 48 6-pks 2** 4 47⁄ 23¾ 34¼ ⁄ 115/60/1 7.0 5-15P 7 280
1217 604 870 ⁄ 230-240/50/1 4.2 ▲ 2.13 127
†Depth does not include 1" (26 mm) for rear bumpers.
note: Depending on tapping kit used, ½barrels may not fit in "GAL" models.
T
RUE
R
EFRIGERATION
®
MADE IN
U.S.A.
SINCE 1945
8/16
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
▲Plug type varies by country.
Model:
TBB-24GAL-48
Underbar Refrigeration:
Solid Swing Door Galvanized Top 24" Back Bar
Cooler
STANDARD FEATURES
DESIGN
True’s refrigerated back bar coolers are
•
designed with enduring quality and
value. Our commitment to using the
highest quality materials and oversized
refrigeration assures colder product
temperatures and years of trouble free
service.
REFRIGERATION SYSTEM
Factory engineered, self-contained,
•
capillary tube system using
environmentally friendly (CFC free) 134A
refrigerant.
Extra large evaporator coil balanced with
•
higher horsepower compressor and large
condenser; maintains cabinet temperatures
of 33°F to 38°F (.5°C to 3.3°C).
Sealed, cast iron, self-lubricating
•
evaporator fan motor(s) and larger fan
blades give True back bar coolers a more
ecient low velocity, high volume airow
design. This unique design ensures faster
temperature pull down of warm product,
colder holding temperatures and faster
recovery in high use situations.
Condensing unit accessed from behind
•
front grill, slides out for easy cleaning and
maintenance.
CABINET CONSTRUCTION
Exterior - heavy duty, wear resistant
•
laminated black vinyl front and sides.
Matching black aluminum back.
Galvanized steel top designed to slide
under existing cabinetry.
Interior - Stainless steel oor with ½"
•
(13 mm) reinforced lip and heavy gauge
galvanized steel walls.
Door threshold protector prevents damage
•
to cabinet from routine loading of product.
Insulation - entire cabinet structure and
•
solid doors are foamed-in-place using
Ecomate. A high density, polyurethane
insulation that has zero ozone depletion
potential (ODP) and zero global warming
potential (GWP).
Welded, heavy duty steel frame rail, black
•
powder coated for corrosion protection.
DOORS
Wear-resistant laminated black vinyl
•
exterior with heavy gauge galvanized steel
liner.
Each door tted with 12" (305 mm) long
•
recessed handle that is foamed-in-place
with a sheet metal interlock to ensure
permanent attachment.
Positive seal doors.
•
Magnetic door gaskets of one piece
•
construction, removable without tools for
ease of cleaning.
Door locks standard.
•
SHELVING
Four (4) adjustable, heavy duty, black PVC
•
coated wire shelves 17¾"L x 18"D (451 mm
x 458 mm). Four (4) chrome plated shelf
clips included per shelf.
Aluminum shelf support pilasters. Shelves
•
are adjustable on ½" (13 mm) increments.
LIGHTING
Fluorescent interior lighting. Safety
•
shielded.
MODEL FEATURES
Evaporator is epoxy coated to eliminate the
•
potential of corrosion.
Designed to accommodate a variety of
•
beer kegs. Depending on tapping kit
used, ½barrels may not t.
Listed under NSF-7 for the storage and/or
•
display of packaged or bottled product.
ELECTRICAL
Unit completely pre-wired at factory and
•
ready for nal connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord and
plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❑ 230 - 240V / 50 Hz.
❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ 2 ½" (64 mm) diameter castors.
❑ 4" (102 mm) diameter castors.
❑ Additional shelves.
❑ TrueTrac one liter or wine bottle organizers.
❑ TrueTrac 12 oz. (355 ml) bottle organizers.
PLAN VIEW
1"
(26 mm)
477/8"
(1217 mm)
347/32"
(870 mm)
2"
(51 mm)
Three year warranty on all parts
and laborand an additional 2 year
*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.
WARRANTY
warranty on compressor.
(U.S.A. only)
*
473/8"
(1204 mm)
ELEVATION
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
KCL
PLAN VIEW
Model Elevation Right Plan 3D Back
TBB-24GAL-48 TFJX36E TFJX36S TFJX36P TFJX363
