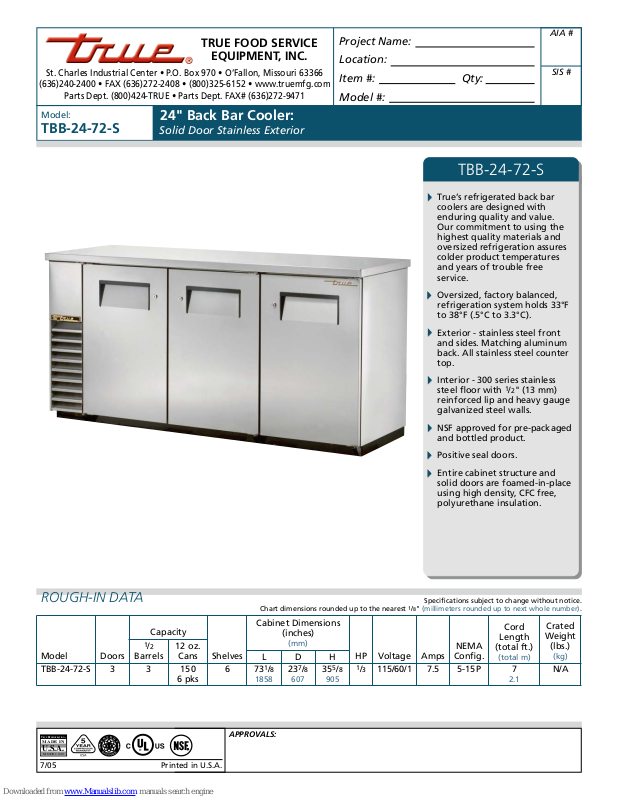

True TBB-24-72-S Specifications

TRUE FOOD SERVICE

EQUIPMENT, INC.

St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366

[phone] • FAX [phone] • [phone] • www.truemfg.com

Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TBB-24-72-S

24" Back Bar Cooler:

Solid Door Stainless Exterior

TBB-24-72-S

True’s refrigerated back bar
coolers are designed with
enduring quality and value.
Our commitment to using the
highest quality materials and
oversized refrigeration assures
colder product temperatures
and years of trouble free
service.

Oversized, factory balanced,
refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C).

Exterior - stainless steel front
and sides. Matching aluminum
back. All stainless steel counter
top.

Interior - 300 series stainless
steel fl oor with
reinforced lip and heavy gauge
galvanized steel walls.

1

/2" (13 mm)

ROUGH-IN DATA

Capacity

1

/2

Model Doors

Barrels

TBB-24-72-S 3 3 150

12 oz.

Cans

6 pks

Shelves

673

Chart dimensions rounded up to the nearest

Cabinet Dimensions

(inches)

(mm)

LDH

1

/8

1858

237/8

607

355/8

HP Voltage Amps

1

/3 115/60/1 7.5 5-15P 7

905

NSF approved for pre-packaged
and bottled product.

Positive seal doors.

Entire cabinet structure and
solid doors are foamed-in-place
using high density, CFC free,
polyurethane insulation.

Specifi cations subject to change without notice.

1

/8" (millimeters rounded up to next whole number).

Crated

Weight

(lbs.)

(kg)

NEMA

Confi g.

Cord

Length

(total ft.)

(total m)

N/A

2.1

T

RUE

R

EFRIGERATION

TM

MADE IN

U.S.A.

SINCE 1945

7/05

®

R

Printed in U.S.A.

APPROVALS:

Model:

TBB-24-72-S

24" Back Bar Cooler:

Solid Door Stainless Exterior

STANDARD FEATURES

DESIGN

• True’s refrigerated back bar coolers
are designed with enduring quality
and value. Our commitment to using
the highest quality materials and
oversized refrigeration assures colder
product temperatures and years of
trouble free service.

REFRIGERATION SYSTEM

• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
134A refrigerant.

• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains
cabinet temperatures of 33°F to 38°F
(.5°C to 3.3°C).

• Sealed, cast iron, self-lubricating
evaporator fan motors and larger fan
blades give True merchandisers a more
effi cient low velocity, high volume
airfl ow design. This unique design
insures faster temperature pull down
of warm product, colder holding
temperatures and faster recovery in
high use situations.

• Condensing unit accessed from behind
front grill, slides out for easy cleaning
and maintenance.

CABINET CONSTRUCTION

• Exterior - stainless steel front and
sides. Matching aluminum back. All
stainless steel counter top.

• Interior - 300 series stainless steel fl oor

1

with

/2" (13 mm) reinforced lip and

heavy gauge galvanized steel walls.

• Insulation - entire cabinet structure
and solid doors are foamed-in­place using high density, CFC free,
polyurethane insulation.

• Welded, heavy duty galvanized frame
rail dipped in rust inhibiting enamel
paint for corrosion protection inside
and out.

DOORS

• Wear-resistant laminated black vinyl
exterior with heavy gauge galvanized
steel door liner.

• Positive seal doors.

• Each door fi tted with 12" (305 mm)
long recessed handle that is foamed­in-place with a sheet metal interlock
to insure permanent attachment.

• Magnetic door gaskets of one piece
construction, removable without tools
for ease of cleaning.

• Door locks standard.

SHELVING

• Six (6) adjustable, heavy duty, black
PVC coated wire shelves. Left and
center door shelving: 40"L x 18"D
(1016 mm x 458 mm). Right door
shelving: 19

3

/8"L x 18"D ( 493 mm x
458 mm). Four (4) chrome plated shelf
clips included per shelf.

• Shelf support pilasters made of same
material as cabinet interior; shelves
are adjustable on

1

/2" (13 mm)

increments.

LIGHTING

• Fluorescent interior lighting. Safety
shielded.

MODEL FEATURES

• Evaporator is epoxy coated to
eliminate the potential of corrosion.

• Listed under NSF-7 for the storage
and/or display of packaged or bottled
product.

• Designed to accommodate a variety of
beer kegs.

ELECTRICAL

• Unit completely pre-wired at factory
and ready for fi nal connection to a
115/60/1 phase - 15 amp dedicated
outlet. Cord and plug set included.

115/60/1
NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/fl anged legs.

1

❒ 2

/2" (64 mm) diameter castors.

❒ 4" (102 mm) diameter castors.
❒ Remote cabinets (condensing unit

supplied by others), consult factory
technical service department for BTU
information.

PLAN VIEW

731/16"

(1856 mm)

355/8"

(905 mm)

713/8"

(1813 mm)

717/8"

(1826 mm)

ELEVATION

One year warranty on all parts

WARRANTY

& labor and an additional 4 year

warranty on compressor.

(U.S.A. only)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

TRUE FOOD SERVICE EQUIPMENT

St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com

2313/16"

(605 mm)

2"

(51 mm)

PLAN VIEW

KCL

Model Elevation Right Plan 3D

TBB-24-72-S TFJX37E TFJX27S TFJX37P TFJX373

(1109 mm)

1913/16"

(504 mm)

435/8"
