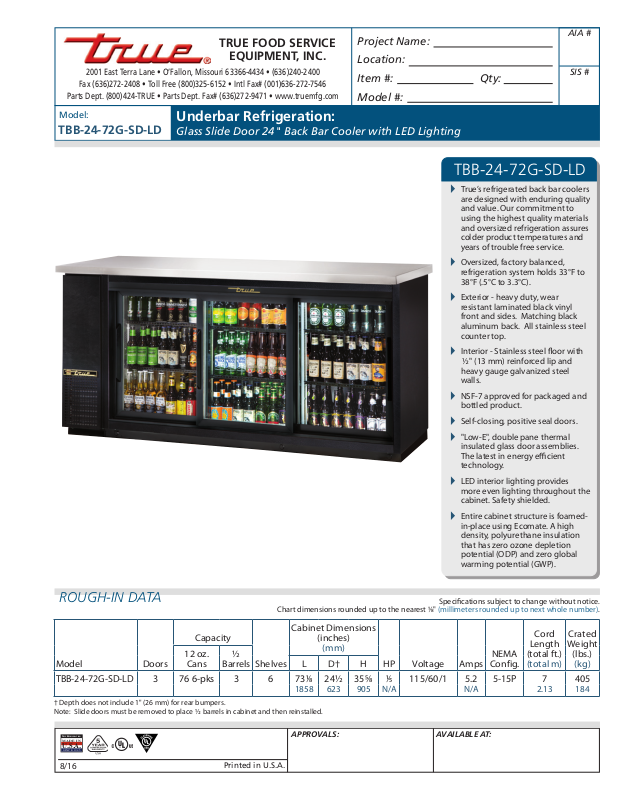

True TBB-24-72G-SD-LD User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone]

Fax [phone] • Toll Free [phone] • Intl Fax# [phone]

Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TBB-24-72G-SD-LD

Underbar Refrigeration:

Glass Slide Door 24" Back Bar Cooler with LED Lighting

TBB-24-72G-SD-LD

True’s refrigerated back bar coolers



are designed with enduring quality
and value. Our commitment to
using the highest quality materials
and oversized refrigeration assures
colder product temperatures and
years of trouble free service.

Oversized, factory balanced,



refrigeration system holds 33°F to
38°F (.5°C to 3.3°C).

Exterior - heavy duty, wear



resistant laminated black vinyl
front and sides. Matching black
aluminum back. All stainless steel
counter top.

Interior - Stainless steel oor with



½" (13 mm) reinforced lip and
heavy gauge galvanized steel
walls.

NSF-7 approved for packaged and



bottled product.

Self-closing, positive seal doors.



"Low-E", double pane thermal



insulated glass door assemblies.
The latest in energy ecient
technology.

LED interior lighting provides



more even lighting throughout the
cabinet. Safety shielded.

Entire cabinet structure is foamed-



in-place using Ecomate. A high
density, polyurethane insulation
that has zero ozone depletion
potential (ODP) and zero global
warming potential (GWP).

ROUGH-IN DATA

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

Capacity

12 oz.

Model Doors

TBB-24-72G-SD-LD

†Depth does not include 1" (26 mm) for rear bumpers.
Note: Slide doors must be removed to place ½barrels in cabinet and then reinstalled.

T

RUE

R

EFRIGERATION

®

MADE IN

U.S.A.

SINCE 1945

8/16

3 76 6-pks 3 6 73⁄ 24½ 35⁄ ⁄ 115/60/1 5.2 5-15P 7 405

Cans

½

Barrels L D† H

Printed in U.S.A.

Shelves

1858 623 905 N/A N/A 2.13 184

APPROVALS: AVAILABLE AT:

(inches)

(mm)

Specications subject to change without notice.

HP Voltage Amps

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated
Weight

(lbs.)

(kg)

Model:

TBB-24-72G-SD-LD

Underbar Refrigeration:

Glass Slide Door 24" Back Bar Cooler with LED
Lighting

STANDARD FEATURES

DESIGN

True’s refrigerated back bar coolers are

•

designed with enduring quality and
value. Our commitment to using the
highest quality materials and oversized
refrigeration assures colder product
temperatures and years of trouble free
service.

REFRIGERATION SYSTEM

Factory engineered, self-contained,

•

capillary tube system using
environmentally friendly (CFC free) 134A
refrigerant.
Extra large evaporator coil balanced with

•

higher horsepower compressor and large
condenser; maintains cabinet temperatures
of 33°F to 38°F (.5°C to 3.3°C).
Sealed, cast iron, self-lubricating

•

evaporator fan motor(s) and larger fan
blades give True back bar coolers a more
ecient low velocity, high volume airow
design. This unique design ensures faster
temperature pull down of warm product,
colder holding temperatures and faster
recovery in high use situations.
Condensing unit accessed from behind

•

front grill, slides out for easy cleaning and
maintenance.

CABINET CONSTRUCTION

Exterior - heavy duty, wear resistant

•

laminated black vinyl front and sides.
Matching black aluminum back. All
stainless steel counter top.

Interior - Stainless steel oor with ½ "

•

(13 mm) reinforced lip and heavy gauge
galvanized steel walls.
Insulation - entire cabinet structure is

•

foamed-in-place using Ecomate. A high
density, polyurethane insulation that has
zero ozone depletion potential (ODP) and
zero global warming potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.

DOORS

"Low-E", double pane thermal insulated

•

glass door assemblies. The latest in energy
ecient technology.
Self-closing doors. Counter-balanced

•

weight system for smooth, even, positive
closing.
Each door tted with 12" (305 mm) long

•

handle.

SHELVING

Six (6) adjustable, heavy duty, black PVC

•

coated wire shelves. Two (2) right and two
(2) left shelf dimensions are 19"L x 16 ¼ "D
(483 mm x 413 mm). Two (2) center door
shelf dimensions are 19 ⁄ "L x 16¼"D (499
mm x 413 mm). Four (4) chrome plated
shelf clips included per shelf.
Aluminum shelf support pilasters. Shelves

•

are adjustable on ½ " (13 mm) increments.

LIGHTING

LED interior lighting provides more even

•

lighting throughout the cabinet. Safety
shielded.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
Designed to accommodate a variety

•

of beer kegs. Doors must be removed
to place ½ barrels in cabinet and then
reinstalled.
Listed under NSF-7 for the storage and/or

•

display of packaged or bottled product.

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord and
plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ 2 ½ " (64 mm) diameter castors.
❑ 4" (102 mm) diameter castors.
❑ Additional shelves.
❑ Ratchet locks.

PLAN VIEW

731/16"

(1856 mm)

717/8"

(1826 mm)

355/8"

(905 mm)

2"

(51 mm)

KCL

PLAN VIEW

Model Elevation Right Plan 3D Back

TBB-24-72G-SD-LD

TFJX67E TFJX67S TFJX67P TFJX673

ELEVATION

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

WARRANTY

warranty on compressor.

(U.S.A. only)

*

713/8"

(1813 mm)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

TRUE FOOD SERVICE EQUIPMENT

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone] • Fax [phone] • Toll Free [phone] • Intl. Fax# [phone] • www.truemfg.com

1"

(26 mm)

257/16"

(647 mm)

247/16"

(621 mm)
