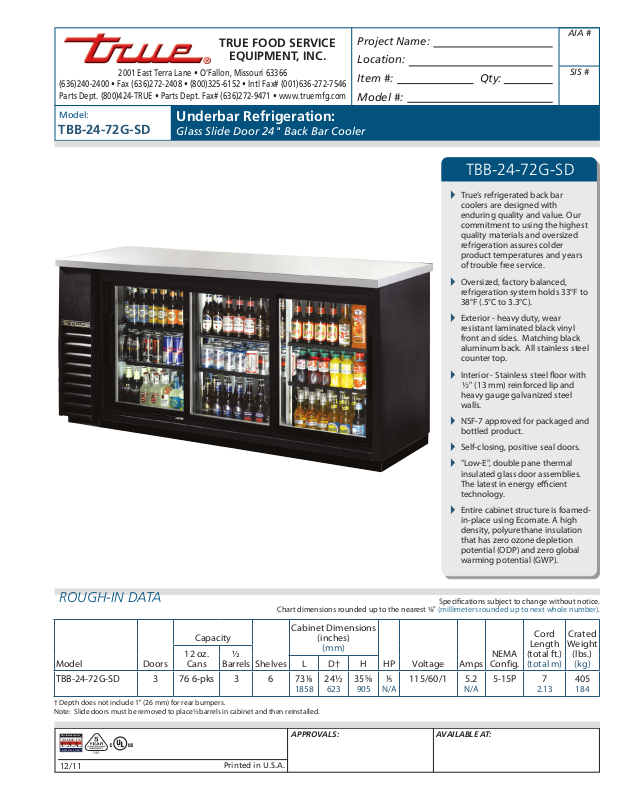

True TBB-24-72G-SD User Manual

TRUE FOOD SERVICE

T

RUE

R

EFRIGERAT ION

MADE IN

SINCE 1945

U.S.A.

®

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TBB-24-72G-SD

Underbar Refrigeration:

Glass Slide Door 24" Back Bar Cooler

TBB-24-72G-SD

True’s refrigerated back bar



coolers are designed with
enduring quality and value. Our
commitment to using the highest
quality materials and oversized
refrigeration assures colder
product temperatures and years
of trouble free service.

Oversized, factory balanced,



refrigeration system holds 33°F to
38°F (.5°C to 3.3°C).

Exterior - heavy duty, wear



resistant laminated black vinyl
front and sides. Matching black
aluminum back. All stainless steel
counter top.

Interior - Stainless steel oor with



½" (13 mm) reinforced lip and
heavy gauge galvanized steel
walls.

NSF-7 approved for packaged and



bottled product.

Self-closing, positive seal doors.



"Low-E", double pane thermal



insulated glass door assemblies.
The latest in energy ecient
technology.

Entire cabinet structure is foamed-



in-place using Ecomate. A high
density, polyurethane insulation
that has zero ozone depletion
potential (ODP) and zero global
warming potential (GWP).

Rough-In Data

Model Doors

Capacity

12 oz.

Cans

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

½

Barrels L D† H

Shelves

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated
Weight

(lbs.)

(kg)

TBB-24-72G-SD 3 76 6-pks 3 6 73⁄ 24½ 35⁄ ⁄ 115/60/1 5.2 5-15P 7 405

1858 623 905 N/A N/A 2.13 184

† Depth does not include 1" (26 mm) for rear bumpers.
Note: Slide doors must be removed to place½barrels in cabinet and then reinstalled.

ApprovAls: AvAilAble At:

12/11

Printed in U.S.A.

Model:

TBB-24-72G-SD

Underbar Refrigeration:

Glass Slide Door 24" Back Bar Cooler

StanDaRD FeatuReS

DESIGN

True’s refrigerated back bar coolers are

•

designed with enduring quality and value.
Our commitment to using the highest quality
materials and oversized refrigeration assures
colder product temperatures and years of
trouble free service.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) 134A refrigerant.
Extra large evaporator coil balanced with

•

higher horsepower compressor and large
condenser; maintains cabinet temperatures
of 33°F to 38°F (.5°C to 3.3°C).
Sealed, cast iron, self-lubricating evaporator

•

fan motor(s) and larger fan blades give
True back bar coolers a more ecient low
velocity, high volume airow design. This
unique design ensures faster temperature
pull down of warm product, colder holding
temperatures and faster recovery in high use
situations.
Condensing unit accessed from behind

•

front grill, slides out for easy cleaning and
maintenance.

CABINET CONSTRUCTION

Exterior - heavy duty, wear resistant

•

laminated black vinyl front and sides.
Matching black aluminum back. All stainless
steel counter top.
Interior - Stainless steel oor with •½" (13 mm)
reinforced lip and heavy gauge galvanized
steel walls.

Insulation - entire cabinet structure is

•

foamed-in-place using Ecomate. A high
density, polyurethane insulation that has zero
ozone depletion potential (ODP) and zero
global warming potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.

DOORS

"Low-E", double pane thermal insulated glass

•

door assemblies. The latest in energy ecient
technology.
Self-closing doors. Counter-balanced weight

•

system for smooth, even, positive closing.
Each door tted with 12" (305 mm) long

•

handle.

SHELVING

Six (6) adjustable, heavy duty, black PVC

•

coated wire shelves. Two (2) right and two (2)
left shelf dimensions are 19"L x 16 ¼ "D (483
mm x 413 mm). Two (2) center door shelf
dimensions are 19 ⁄ "L x 16¼"D (499 mm x
413 mm). Four (4) chrome plated shelf clips
included per shelf.
Aluminum shelf support pilasters. Shelves

•

are adjustable on ½ " (13 mm) increments.

LIGHTING

Fluorescent interior lighting. Safety shielded.

•

Cabinet lighting utilizes electronic ballast and

•

T-8 bulbs for brighter illumination, longer
bulb life and increased energy eciency.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.

Designed to accommodate a variety

•

of beer kegs. Doors must be removed
to place ½ barrels in cabinet and then
reinstalled.
Listed under NSF-7 for the storage and/or

•

display of packaged or bottled product.

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord and
plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

6" (153 mm) standard legs. ❑
6" (153 mm) seismic/anged legs. ❑
2 ❑ ½" (64 mm) diameter castors.
4" (102 mm) diameter castors. ❑
Additional shelves. ❑
Ratchet locks. ❑
Remote cabinets (condensing unit supplied ❑
by others; system comes standard with
404A expansion valve and requires R404A
refrigerant). Consult factory technical service
department for BTU information. All remote
units must be hard wired during installation.

Plan VIew

One year warranty on all parts

WARRANTY

and labor and an additional 4
year warranty on compressor.

(U.S.A. only)

2001 East Terra Lane • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

TRUE FOOD SERVICE EQUIPMENT

KCL

Model Elevation Right Plan 3D Back

TBB-24-72G-SD TFJX67E TFJX67S TFJX67P TFJX673
