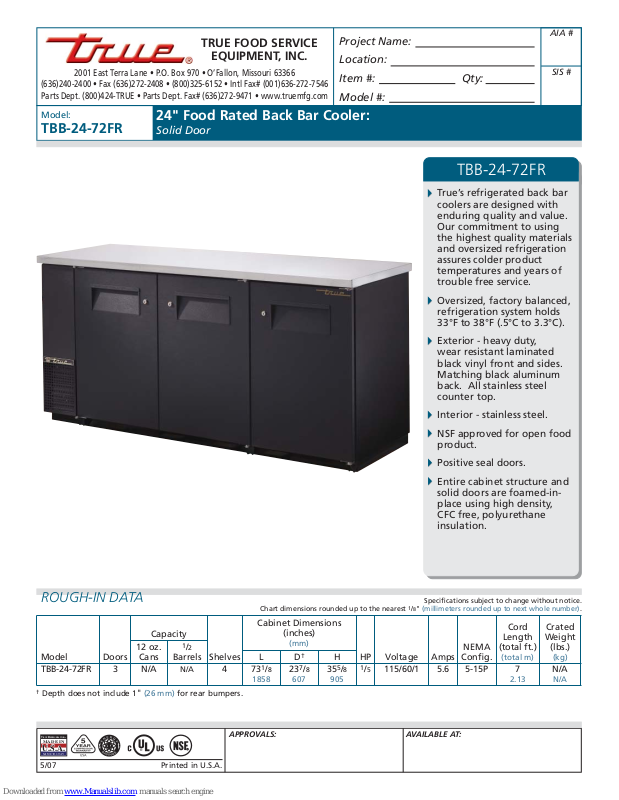

True TBB-24-72FR Specifications

TRUE FOOD SERVICE

.S.A.

EQUIPMENT, INC.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TBB-24-72FR

24" Food Rated Back Bar Cooler:

Solid Door

TBB-24-72FR

True’s refrigerated back bar
coolers are designed with
enduring quality and value.
Our commitment to using
the highest quality materials
and oversized refrigeration
assures colder product
temperatures and years of
trouble free service.

Oversized, factory balanced,
refrigeration system holds
33°F to 38°F (.5°C to 3.3°C).

Exterior - heavy duty,
wear resistant laminated
black vinyl front and sides.
Matching black aluminum
back. All stainless steel
counter top.

ROUGH-IN DATA

Capacity

12 oz.

Model Doors

Cans

TBB-24-72FR 3 N/A

†

Depth does not include 1" (26 mm) for rear bumpers.

1

/2

Barrels

N/A

Shelves

4731/8

Chart dimensions rounded up to the nearest

Cabinet Dimensions

(inches)

(mm)

LD†H

237/8

1858

607

355/8

HP Voltage Amps

1

/5 115/60/1 5.6 5-15P 7

905

Interior - stainless steel.

NSF approved for open food
product.

Positive seal doors.

Entire cabinet structure and
solid doors are foamed-in­place using high density,
CFC free, polyurethane
insulation.

Specifi cations subject to change without notice.

1

/8" (millimeters rounded up to next whole number).

Crated

Weight

(lbs.)

(kg)

N/A

N/A

NEMA

Confi g.

Cord

Length

(total ft.)

(total m)

2.13

T

RUE

R

EFRIGERATION

TM

MADE IN

U.S.A.

U.S.A.

SINCE 1945

5/07

®

R

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

Model:

TBB-24-72FR

24" Food Rated Back Bar Cooler:

Solid Door

STANDARD FEATURES

DESIGN

• True’s refrigerated back bar coolers are
designed with enduring quality and
value. Our commitment to using the
highest quality materials and oversized
refrigeration assures colder product
temperatures and years of trouble free
service.

REFRIGERATION SYSTEM

• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free) 134A
refrigerant.

• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains cabinet
temperatures of 33°F to 38°F (.5°C to

3.3°C).

• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger
fan blades give True back bar coolers
a more effi cient low velocity, high
volume airfl ow design. This unique
design ensures faster temperature pull
down of warm product, colder holding
temperatures and faster recovery in high
use situations.

• Condensing unit accessed from behind
front grill, slides out for easy cleaning
and maintenance.

CABINET CONSTRUCTION

• Exterior - heavy duty, wear resistant
laminated black vinyl front and sides.
Matching black aluminum back. All
stainless steel counter top.

• Interior - stainless steel.

• Insulation - entire cabinet structure and
solid doors are foamed-in-place using
high density, CFC free, polyurethane
insulation.

• Welded, heavy duty galvanized base rail
dipped in rust inhibiting enamel paint
for corrosion protection inside and out.

DOORS

• Wear-resistant laminated black vinyl
exterior with stainless steel door liner.

• Each door fi tted with 12" (305 mm) long
recessed handle that is foamed-in-place
with a sheet metal interlock to ensure
permanent attachment.

• Positive seal doors.

• Magnetic door gaskets of one piece
construction, removable without tools
for ease of cleaning.

• Door locks standard.

SHELVING

• Four (4) adjustable, heavy duty, black
PVC coated wire shelves. Two (2) long
shelves which span behind the left and
center doors: 40"L x 18"D (1016 mm x
458 mm). Two (2) shelves behind right

3

door: 19

/8"L x 18"D (493 mm x 458
mm). Four (4) chrome plated shelf clips
included per shelf.

• Aluminum shelf support pilasters.

1

Shelves are adjustable on

/2" (13 mm)

increments.

LIGHTING

• Fluorescent interior lighting. Safety
shielded.

MODEL FEATURES

• Evaporator is epoxy coated to eliminate
the potential of corrosion.

• Designed to accommodate a variety of
beer kegs.

• NSF-7 compliant for open food product.

ELECTRICAL

• Unit completely pre-wired at factory and
ready for fi nal connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord
and plug set included.

115/60/1
NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❒

6" (153 mm) standard legs.

❒

6" (153 mm) seismic/fl anged legs.

❒

21/2" (64 mm) diameter castors.

❒

4" (102 mm) diameter castors.

❒

Additional shelves.

❒

Remote cabinets (condensing unit

supplied by others; system comes
standard with 404A expansion valve and
requires R404A refrigerant). Consult
factory technical service department for
BTU information.

PLAN VIEW

731/16"

(1856 mm)

717/8"

(1826 mm)

355/8"

(905 mm)

2"

(51 mm)

One year warranty on all parts

and labor and an additional 4
year warranty on compressor.

WARRANTY

(U.S.A. only)

713/8"

(1813 mm)

ELEVATION

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

KCL

PLAN VIEW

Model Elevation Right Plan 3D

TBB-24-72FR

TRUE FOOD SERVICE EQUIPMENT

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com

2313/16"

(605 mm)

1913/16"

(504 mm)

1"

(26 mm)

445/8"

(1134 mm)
