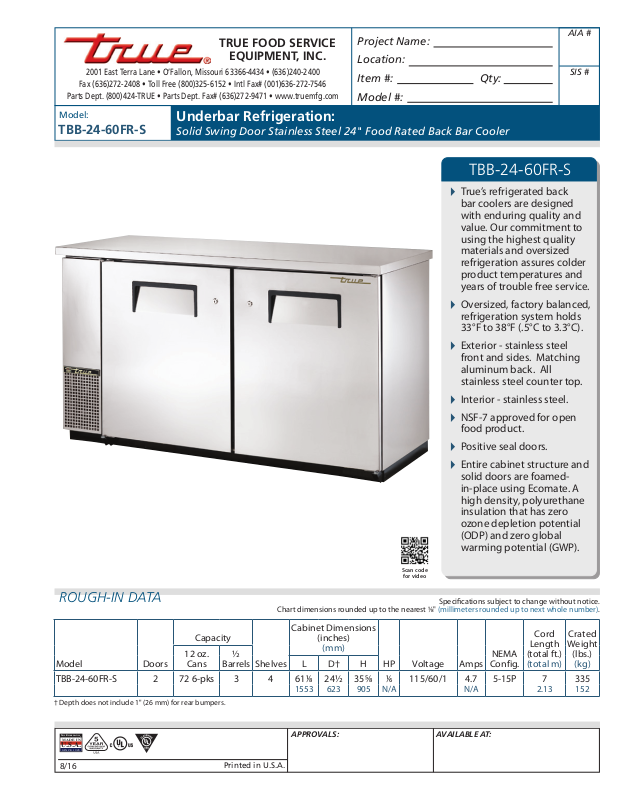

Model:

TBB-24-60FR-S

Underbar Refrigeration:

Solid Swing Door Stainless Steel 24" Food Rated Back Bar Cooler

TBB-24-60FR-S

True’s refrigerated back



bar coolers are designed
with enduring quality and
value. Our commitment to
using the highest quality
materials and oversized
refrigeration assures colder
product temperatures and
years of trouble free service.

Oversized, factory balanced,



refrigeration system holds
33°F to 38°F (.5°C to 3.3°C).

Exterior - stainless steel



front and sides. Matching
aluminum back. All
stainless steel counter top.

Interior - stainless steel.



NSF-7 approved for open



food product.

Positive seal doors.



Entire cabinet structure and



solid doors are foamed­in-place using Ecomate. A
high density, polyurethane
insulation that has zero
ozone depletion potential
(ODP) and zero global
warming potential (GWP).

Scan cod e

for video

ROUGH-IN DATA

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

Capacity

Model Doors

12 oz.

Cans

½

Barrels L D† H

Shelves

TBB-24-60FR-S 2 72 6-pks 3 4 61⁄ 24½ 35⁄ ⁄ 115/60/1 4.7 5-15P 7 335

†Depth does not include 1" (26 mm) for rear bumpers.

T

RUE

R

EFRIGERATION

®

MADE IN

U.S.A.

SINCE 1945

(inches)

(mm)

HP Voltage Amps

1553 623 905 N/A N/A 2.13 152

APPROVALS: AVAILABLE AT:

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated
Weight

(lbs.)

(kg)

8/16

Printed in U.S.A.

Model:

TBB-24-60FR-S

Underbar Refrigeration:

Solid Swing Door Stainless Steel 24" Food Rated
Back Bar Cooler

STANDARD FEATURES

DESIGN

True’s refrigerated back bar coolers are

•

designed with enduring quality and
value. Our commitment to using the
highest quality materials and oversized
refrigeration assures colder product
temperatures and years of trouble free
service.

REFRIGERATION SYSTEM

Factory engineered, self-contained,

•

capillary tube system using
environmentally friendly (CFC free) 134A
refrigerant.
Extra large evaporator coil balanced

•

with higher horsepower compressor
and large condenser; maintains cabinet
temperatures of 33°F to 38°F (.5°C to

3.3°C).
Sealed, cast iron, self-lubricating

•

evaporator fan motor(s) and larger fan
blades give True back bar coolers a more
ecient low velocity, high volume airow
design. This unique design ensures faster
temperature pull down of warm product,
colder holding temperatures and faster
recovery in high use situations.
Condensing unit accessed from behind

•

front grill, slides out for easy cleaning and
maintenance.

CABINET CONSTRUCTION

Exterior - stainless steel front and sides.

•

Matching aluminum back. All stainless
steel counter top.
Interior - stainless steel.

•

Insulation - entire cabinet structure and

•

solid doors are foamed-in-place using
Ecomate. A high density, polyurethane
insulation that has zero ozone depletion
potential (ODP) and zero global warming
potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.

DOORS

Stainless steel exterior with stainless steel

•

liner.
Each door tted with 12" (305 mm) long

•

recessed handle that is foamed-in-place
with a sheet metal interlock to ensure
permanent attachment.
Positive seal doors.

•

Magnetic door gaskets of one piece

•

construction, removable without tools for
ease of cleaning.
Door locks standard.

•

SHELVING

Four (4) adjustable, heavy duty, black PVC

•

coated wire shelves 23¾"L x 18"D (604
mm x 458 mm). Four (4) chrome plated
shelf clips included per shelf.
Aluminum shelf support pilasters. Shelves

•

are adjustable on ½ " (13 mm) increments.

LIGHTING

Fluorescent interior lighting. Safety

•

shielded.

MODEL FEATURES

Evaporator is epoxy coated to eliminate

•

the potential of corrosion.
Designed to accommodate a variety of

•

beer kegs.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord and
plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ 2 ½ " (64 mm) diameter castors.
❑ 4" (102 mm) diameter castors.
❑ Additional shelves.

PLAN VIEW

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.
