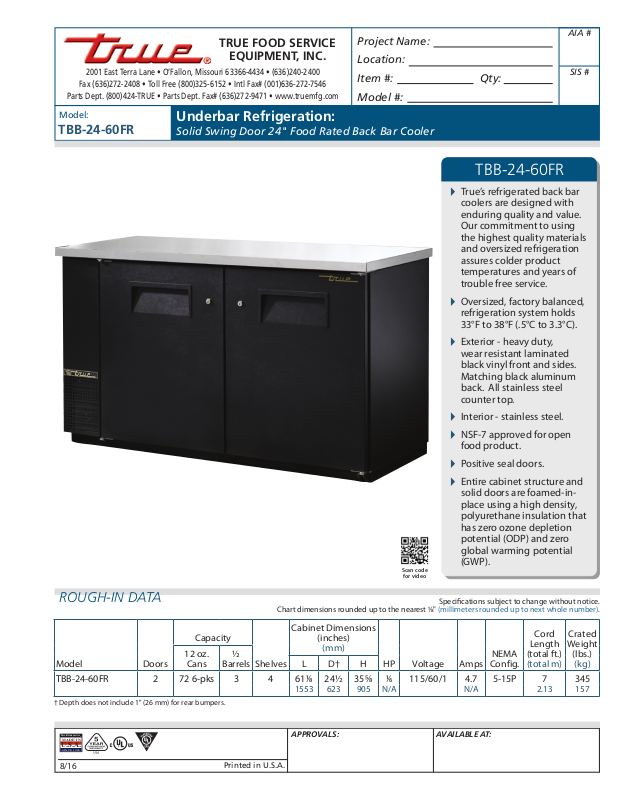

True TBB-24-60FR User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone]

Fax [phone] • Toll Free [phone] • Intl Fax# [phone]

Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TBB-24-60FR

Underbar Refrigeration:

Solid Swing Door 24" Food Rated Back Bar Cooler

TBB-24-60FR

True’s refrigerated back bar



coolers are designed with
enduring quality and value.
Our commitment to using
the highest quality materials
and oversized refrigeration
assures colder product
temperatures and years of
trouble free service.

Oversized, factory balanced,



refrigeration system holds
33°F to 38°F (.5°C to 3.3°C).

Exterior - heavy duty,



wear resistant laminated
black vinyl front and sides.
Matching black aluminum
back. All stainless steel
counter top.

Interior - stainless steel.



NSF-7 approved for open



food product.

Positive seal doors.



Entire cabinet structure and



solid doors are foamed-in­place using a high density,
polyurethane insulation that
has zero ozone depletion
potential (ODP) and zero
global warming potential
(GWP).

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated
Weight

(lbs.)

(kg)

ROUGH-IN DATA

Model Doors

Capacity

12 oz.

Cans

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

½

Barrels L D† H

Shelves

(mm)

Scan cod e

for video

HP Voltage Amps

TBB-24-60FR 2 72 6-pks 3 4 61⁄ 24½ 35⁄ ⁄ 115/60/1 4.7 5-15P 7 345

1553 623 905 N/A N/A 2.13 157

†Depth does not include 1" (26 mm) for rear bumpers.

T

RUE

R

EFRIGERATION

MADE IN

U.S.A.

SINCE 1945

8/16

®

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

Model:

TBB-24-60FR

Underbar Refrigeration:

Solid Swing Door 24" Food Rated Back Bar
Cooler

STANDARD FEATURES

DESIGN

True’s refrigerated back bar coolers are

•

designed with enduring quality and
value. Our commitment to using the
highest quality materials and oversized
refrigeration assures colder product
temperatures and years of trouble free
service.

REFRIGERATION SYSTEM

Factory engineered, self-contained,

•

capillary tube system using
environmentally friendly (CFC free) 134A
refrigerant.
Extra large evaporator coil balanced

•

with higher horsepower compressor
and large condenser; maintains cabinet
temperatures of 33°F to 38°F (.5°C to

3.3°C).
Sealed, cast iron, self-lubricating

•

evaporator fan motor(s) and larger fan
blades give True back bar coolers a more
ecient low velocity, high volume airow
design. This unique design ensures faster
temperature pull down of warm product,
colder holding temperatures and faster
recovery in high use situations.
Condensing unit accessed from behind

•

front grill, slides out for easy cleaning and
maintenance.

CABINET CONSTRUCTION

Exterior - heavy duty, wear resistant

•

laminated black vinyl front and sides.
Matching black aluminum back. All
stainless steel counter top.
Interior - stainless steel.

•

Insulation - entire cabinet structure and

•

solid doors are foamed-in-place using
a high density, polyurethane insulation
that has zero ozone depletion potential
(ODP) and zero global warming potential
(GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.

DOORS

Wear-resistant laminated black vinyl

•

exterior with heavy gauge galvanized
steel door liner.
Each door tted with 12" (305 mm) long

•

recessed handle that is foamed-in-place
with a sheet metal interlock to ensure
permanent attachment.
Positive seal doors.

•

Magnetic door gaskets of one piece

•

construction, removable without tools
for ease of cleaning.
Door locks standard.

•

SHELVING

Four (4) adjustable, heavy duty, black PVC

•

coated wire shelves 23¾"L x 18"D (604
mm x 458 mm). Four (4) chrome plated
shelf clips included per shelf.

Aluminum shelf support pilasters.

•

Shelves are adjustable on ½" (13 mm)
increments.

LIGHTING

Fluorescent interior lighting. Safety

•

shielded.

MODEL FEATURES

Evaporator is epoxy coated to eliminate

•

the potential of corrosion.
Designed to accommodate a variety of

•

beer kegs.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord
and plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ 2 ½ " (64 mm) diameter castors.
❑ 4" (102 mm) diameter castors.
❑ Additional shelves.

PLAN VIEW

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: True assumes no liability for parts or labor
coverage for component failure, factory defect or any other damages for
units installed in non-commercial foodservice or residential applications.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone] • Fax [phone] • Toll Free [phone] • Intl. Fax# [phone] • www.truemfg.com

WARRANTY

warranty on compressor.

(U.S.A. only)

*

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

TRUE FOOD SERVICE EQUIPMENT

KCL

Model Elevation Right Plan 3D Back

TBB-24-60FR TFJX56E TFJX27S TFJX35P TFJX563
