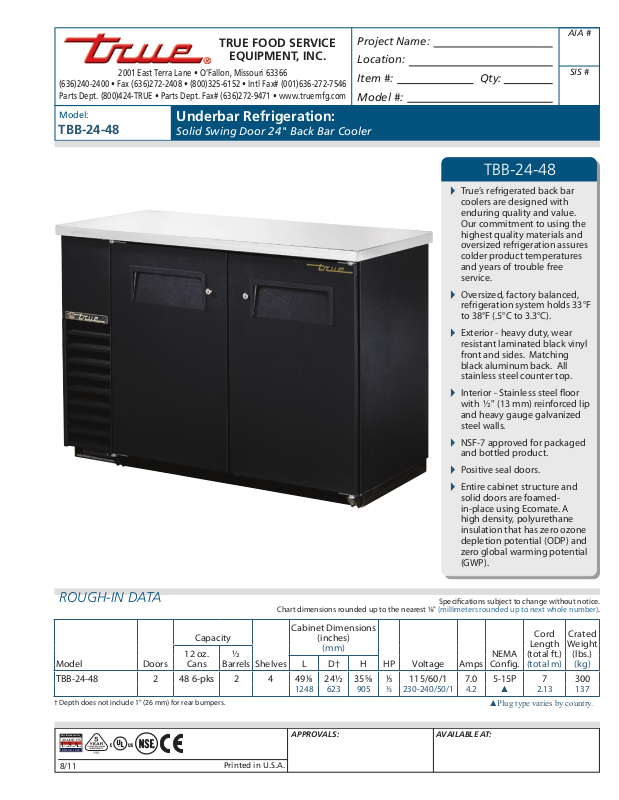

True TBB-24-48 User Manual

TRUE FOOD SERVICE

T

RUE

R

EFRIGERAT ION

MADE IN

SINCE 1945

U.S.A.

®

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TBB-24-48

Underbar Refrigeration:

Solid Swing Door 24" Back Bar Cooler

TBB-24-48

True’s refrigerated back bar



coolers are designed with
enduring quality and value.
Our commitment to using the
highest quality materials and
oversized refrigeration assures
colder product temperatures
and years of trouble free
service.

Oversized, factory balanced,



refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C).

Exterior - heavy duty, wear



resistant laminated black vinyl
front and sides. Matching
black aluminum back. All
stainless steel counter top.

Interior - Stainless steel oor



with ½ " (13 mm) reinforced lip
and heavy gauge galvanized
steel walls.

NSF-7 approved for packaged



and bottled product.

Positive seal doors.



Entire cabinet structure and



solid doors are foamed­in-place using Ecomate. A
high density, polyurethane
insulation that has zero ozone
depletion potential (ODP) and
zero global warming potential
(GWP).

Rough-In Data

Model Doors

Capacity

12 oz.

Cans

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

½

Barrels L D† H

Shelves

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated
Weight

(lbs.)

(kg)

TBB-24-48 2 48 6-pks 2 4 49⁄ 24½ 35⁄ ⁄ 115/60/1 7.0 5-15P 7 300

1248 623 905 ⁄ 230-240/50/1 4.2 ▲ 2.13 137

† Depth does not include 1" (26 mm) for rear bumpers.

ApprovAls: AvAilAble At:

8/11

Printed in U.S.A.

▲Plug type varies by country.

Model:

TBB-24-48

Underbar Refrigeration:

Solid Swing Door 24" Back Bar Cooler

StanDaRD FeatuReS

DESIGN

True’s refrigerated back bar coolers are

•

designed with enduring quality and
value. Our commitment to using the
highest quality materials and oversized
refrigeration assures colder product
temperatures and years of trouble free
service.

REFRIGERATION SYSTEM

Factory engineered, self-contained,

•

capillary tube system using
environmentally friendly (CFC free) 134A
refrigerant.
Extra large evaporator coil balanced

•

with higher horsepower compressor
and large condenser; maintains cabinet
temperatures of 33°F to 38°F (.5°C to

3.3°C).
Sealed, cast iron, self-lubricating

•

evaporator fan motor(s) and larger fan
blades give True back bar coolers a more
ecient low velocity, high volume airow
design. This unique design ensures faster
temperature pull down of warm product,
colder holding temperatures and faster
recovery in high use situations.
Condensing unit accessed from behind

•

front grill, slides out for easy cleaning and
maintenance.

CABINET CONSTRUCTION

Exterior - heavy duty, wear resistant

•

laminated black vinyl front and sides.
Matching black aluminum back. All
stainless steel counter top.

Plan VIew

Interior - Stainless steel oor with •½"
(13 mm) reinforced lip and heavy gauge
galvanized steel walls.
Door threshold protector prevents

•

damage to cabinet from routine loading
of product.
Insulation - entire cabinet structure and

•

solid doors are foamed-in-place using
Ecomate. A high density, polyurethane
insulation that has zero ozone depletion
potential (ODP) and zero global warming
potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.

DOORS

Wear-resistant laminated black vinyl

•

exterior with heavy gauge galvanized
steel liner.
Each door tted with 12" (305 mm) long

•

recessed handle that is foamed-in-place
with a sheet metal interlock to ensure
permanent attachment.
Positive seal doors.

•

Magnetic door gaskets of one piece

•

construction, removable without tools for
ease of cleaning.
Door locks standard.

•

SHELVING

Four (4) adjustable, heavy duty, black PVC

•

coated wire shelves 17¾ "L x 18"D (451
mm x 458 mm). Four (4) chrome plated
shelf clips included per shelf.
Aluminum shelf support pilasters. Shelves

•

are adjustable on ½ " (13 mm) increments.

LIGHTING

Fluorescent interior lighting. Safety

•

shielded.

MODEL FEATURES

Evaporator is epoxy coated to eliminate

•

the potential of corrosion.
Designed to accommodate a variety of

•

beer kegs.
Listed under NSF-7 for the storage and/or

•

display of packaged or bottled product.

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1
phase, 15 amp dedicated outlet. Cord and
plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

230 - 240V / 50 Hz. ❑
6" (153 mm) standard legs. ❑
6" (153 mm) seismic/anged legs. ❑
2 ❑ ½" (64 mm) diameter castors.
4" (102 mm) diameter castors. ❑
Additional shelves. ❑
TrueTrac one liter or wine bottle ❑
organizers.
TrueTrac 12 oz. (355 ml) bottle organizers. ❑
Remote cabinets (condensing unit ❑
supplied by others; system comes
standard with 404A expansion valve and
requires R404A refrigerant). Consult
factory technical service department for
BTU information. All remote units must be
hard wired during installation.

One year warranty on all parts

WARRANTY

and laborand an additional 4
year warranty on compressor.

(U.S.A. only)
