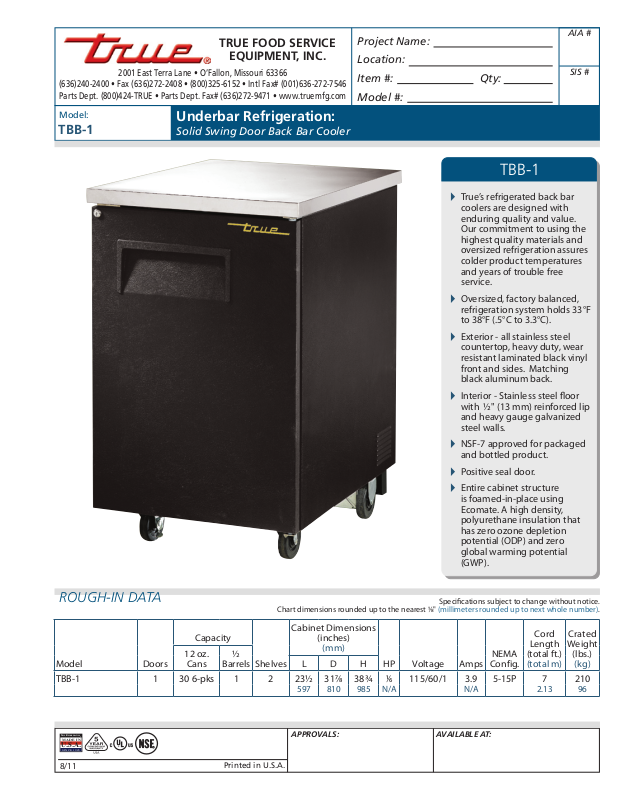

True TBB-1 User Manual

TRUE FOOD SERVICE

T

RUE

R

EFRIGERAT ION

MADE IN

SINCE 1945

U.S.A.

®

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TBB-1

Underbar Refrigeration:

Solid Swing Door Back Bar Cooler

TBB-1

True’s refrigerated back bar



coolers are designed with
enduring quality and value.
Our commitment to using the
highest quality materials and
oversized refrigeration assures
colder product temperatures
and years of trouble free
service.

Oversized, factory balanced,



refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C).

Exterior - all stainless steel



countertop, heavy duty, wear
resistant laminated black vinyl
front and sides. Matching
black aluminum back.

Interior - Stainless steel oor



with ½ " (13 mm) reinforced lip
and heavy gauge galvanized
steel walls.

NSF-7 approved for packaged



and bottled product.

Positive seal door.



Entire cabinet structure



is foamed-in-place using
Ecomate. A high density,
polyurethane insulation that
has zero ozone depletion
potential (ODP) and zero
global warming potential
(GWP).

Rough-In Data

Model Doors

Capacity

12 oz.

Cans

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

½

Barrels L D H

Shelves

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated
Weight

(lbs.)

(kg)

TBB-1 1 30 6-pks 1 2 23½ 31⁄ 38¾ ⁄ 115/60/1 3.9 5-15P 7 210

597 810 985 N/A N/A 2.13 96

ApprovAls: AvAilAble At:

8/11

Printed in U.S.A.

Model:

TBB-1

Underbar Refrigeration:

Solid Swing Door Back Bar Cooler

StanDaRD FeatuReS

DESIGN

True’s refrigerated back bar coolers are

•

designed with enduring quality and
value. Our commitment to using the
highest quality materials and oversized
refrigeration assures colder product
temperatures and years of trouble free
service.

REFRIGERATION SYSTEM

Factory engineered, self-contained,

•

capillary tube system using
environmentally friendly (CFC free) 134A
refrigerant.
Extra large evaporator coil balanced

•

with higher horsepower compressor
and large condenser; maintains cabinet
temperatures of 33°F to 38°F (.5°C to

3.3°C).
Sealed, cast iron, self-lubricating

•

evaporator fan motor(s) and larger fan
blades give True back bar coolers a more
ecient low velocity, high volume airow
design. This unique design ensures faster
temperature pull down of warm product,
colder holding temperatures and faster
recovery in high use situations.
Condensing unit accessed from rear of

•

unit for easy cleaning and maintenance.

CABINET CONSTRUCTION

Exterior - heavy duty, wear resistant

•

laminated black vinyl front and sides.
Matching black aluminum back. All
stainless steel counter top.
Interior - Stainless steel oor with •½"
(13 mm) reinforced lip and heavy gauge
galvanized steel walls.
Door threshold protector prevents

•

damage to cabinet from routine loading
of product.
Insulation - entire cabinet structure is

•

foamed-in-place using Ecomate. A high
density, polyurethane insulation that has
zero ozone depletion potential (ODP) and
zero global warming potential (GWP).
Cabinet tted with 4" (102 mm) diameter

•

castors (legs not available).

DOOR

Wear-resistant laminated black vinyl

•

exterior with heavy gauge galvanized
steel liner.
Door tted with 12" (305 mm) long

•

recessed handle that is foamed-in-place
with a sheet metal interlock to ensure
permanent attachment.
Positive seal door.

•

Magnetic door gasket of one piece

•

construction, removable without tools
for ease of cleaning.
Door lock standard.

•

SHELVING

Two (2) adjustable, heavy duty, black PVC

•

coated wire shelves 23¼ "L x 19"D (591
mm x 483 mm). Four (4) chrome plated
shelf clips included per shelf.
Aluminum shelf support pilasters.

•

Shelves are adjustable on ½ " (13 mm)
increments.

LIGHTING

Incandescent interior lighting.

•

MODEL FEATURES

Evaporator is epoxy coated to eliminate

•

the potential of corrosion.
Listed under NSF-7 for the storage and/or

•

display of packaged or bottled product.

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord
and plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

Additional shelves. ❑

Plan VIew

One year warranty on all parts

WARRANTY

and laborand an additional 4
year warranty on compressor.

(U.S.A. only)

2001 East Terra Lane • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

TRUE FOOD SERVICE EQUIPMENT

KCL

Model Elevation Right Plan 3D Back

TBB-1 TFJX315E TFJX315S TFJX315P TFJX3153
