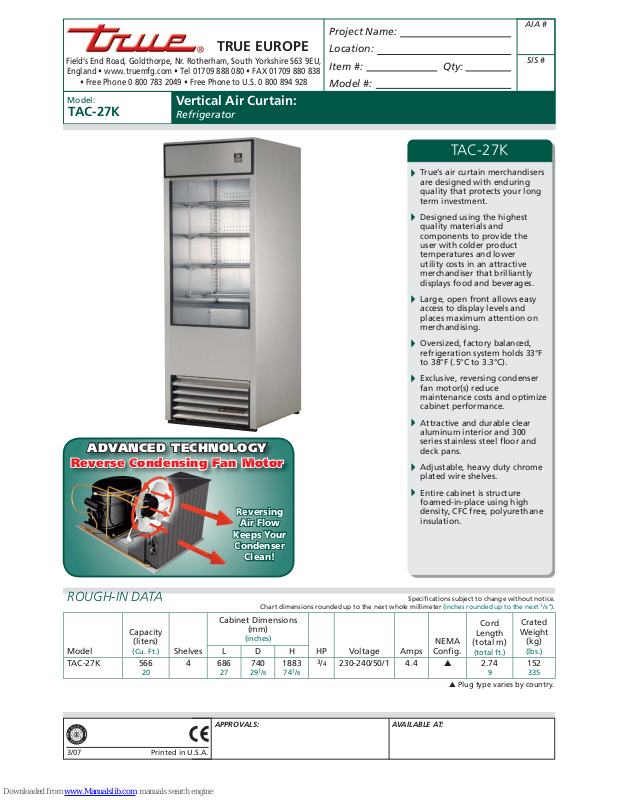

True TAC-27K Specifications

Specifi cations subject to change without notice.

Chart dimensions rounded up to the next whole millimeter

(inches rounded up to the next 1/8").

ROUGH-IN DATA

Field’s End Road, Goldthorpe, Nr. Rotherham, South Yorkshire S63 9EU,

England • www.truemfg.com • Tel [phone] • FAX [phone]

• Free Phone [phone] • Free Phone to U.S. 0 800 894 928

Model:

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

APPROVALS:

Printed in U.S.A.

TRUE EUROPE

AVAILABLE AT:

TAC-27K

TAC-27K

▲ Plug type varies by country.

Vertical Air Curtain:

Refrigerator

3/07

True’s air curtain merchandisers
are designed with enduring
quality that protects your long
term investment.

Designed using the highest
quality materials and
components to provide the
user with colder product
temperatures and lower
utility costs in an attractive
merchandiser that brilliantly
displays food and beverages.

Large, open front allows easy
access to display levels and
places maximum attention on
merchandising.

Oversized, factory balanced,
refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C).

Exclusive, reversing condenser
fan motor(s) reduce
maintenance costs and optimize
cabinet performance.

Attractive and durable clear
aluminum interior and 300
series stainless steel fl oor and
deck pans.

Adjustable, heavy duty chrome
plated wire shelves.

Entire cabinet is structure
foamed-in-place using high
density, CFC free, polyurethane
insulation.

Model

Capacity

(liters)

(Cu. Ft.) Shelves

Cabinet Dimensions

(mm)

(inches)

LDH

HP Voltage Amps

NEMA

Confi g.

Cord

Length

(total m)

(total ft.)

Crated

Weight

(kg)

(lbs.)

TAC-27K 566

20

4 68627740

291/8

1883

741/8

3

/4 230-240/50/1 4.4

▲

2.74

9

152

335

Reversing

Air Flow

Air Flow

Keeps Your

Condenser

Clean!

Clean!

Reverse Condensing Fan Motor

ADVANCED TECHNOLOGY

ADVANCED TECHNOLOGY

STANDARD FEATURES

Model:

TRUE EUROPE

Field’s End Road, Goldthorpe, Nr. Rotherham, South Yorkshire S63 9EU, England • 01709 888 080 • FAX [phone] • Free Phone [phone] • Free Phone to U.S. 0 800 894 928 • www.truemfg.com

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

Model Elevation Right Plan 3D

PLAN VIEW

KCL

TAC-27K

TAC-27K

DESIGN

• Designed using the highest quality
materials and components to
provide the user with colder product
temperatures and lower utility costs
in an attractive merchandiser that
brilliantly displays pre-packaged food
and beverages.

REFRIGERATION SYSTEM

• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
R404A refrigerant.

• Time-initiated, time-terminated off
cycle defrost system.

• Extra large evaporator coil and
condenser balanced with higher
horsepower compressor; maintains
cabinet temperatures of 33°F to 38°F
(.5°C to 3.3°C) for the best in food
preservation.

• Sealed, cast iron, self-lubricating
evaporator fan motor(s).

• Bottom mounted condensing unit
positioned for easy maintenance.

• Exclusive reversing condenser fan
motor(s). Fan motor(s) reverse
during defrost off cycles to help
keep condenser coil free from dirt,
dust and debris. Keeping coils clean
optimizes the unit’s performance
providing colder holding
temperatures and increased energy
effi ciency. Regularly scheduled
thorough cleaning of coils still
recommended.

CABINET CONSTRUCTION

• Exterior - attractive and durable clear
aluminium.

• Plexiglass lower front panel; durable
and break resistant.

• Interior - attractive, clear aluminum
liner. 300 series stainless steel fl oor
and deck pans.

• Insulation - entire cabinet structure is
foamed-in-place using high density,
CFC free, polyurethane insulation.

• Welded, heavy duty galvanized
frame rail dipped in rust inhibiting
enamel paint for corrosion
protection inside and out.

• Frame rail fi tted with leg levelers.

• Solid aluminum exterior sign panel
with digital temperature display.

SHELVING

• Four (4) adjustable, heavy duty
chrome plated wire shelves 22

15

/16"L

x 16

3

/4"D (583 mm x 426 mm). Four
(4) chrome plated shelf clips included
per shelf.

• Shelf support pilasters made of same
material as cabinet interior; shelves
are adjustable on

1

/2" (13 mm)

increments.

LIGHTING

• Fluorescent interior lighting, safety
shielded.

• T8 bulbs and electronic ballast;
provides better illumination of
product and increased energy
effi ciency.

MODEL FEATURES

• Exterior temperature display.

• Perforated interior back wall for
exceptional airfl ow.

• Convenient clean-out drain built in
cabinet fl oor.

ELECTRICAL

• Unit completely pre-wired at factory
and ready for fi nal connection to a
230-240/50/1 phase dedicated outlet.
Cord and plug set included.

• Plug type varies by country.

RECOMMENDED OPERATION
CONDITIONS

• Designed to operate in an
environment where temperature and
humidity do not exceed 24°C (75°F)
and 55% relative humidity.

• Unit should not be installed near
HVAC vents, fans or doorways that
will disrupt the air curtain and
compromise the function of the
cabinet. Unit should not be installed
in direct sunlight.

• Model will run most effi ciently when
completely loaded with product.

• Drain plumbing hookup
recommended.

OPTIONAL FEATURES/ACCESSORIES

❒ 1" (13 mm) diameter castors.
❒ Additional shelves.
❒ White cantilevered shelves.
❒ Stainless steel cantilevered shelves.
❒ Pricing strips.
❒ Night cover.
❒ Remote cabinets (condensing unit

supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant),
consult factory technical service
department for BTU information.

Vertical Air Curtain:

Refrigerator

ELEVATION

RIGHT VIEW

738 mm

(291/32")

686 mm

(27")

969 mm

(381/8")

1857 mm

(733/32")

24 mm

(15/16")

1881 mm

(741/32")

658 mm

(257/8")

813 mm

(3131/32")

599 mm

(239/16")
