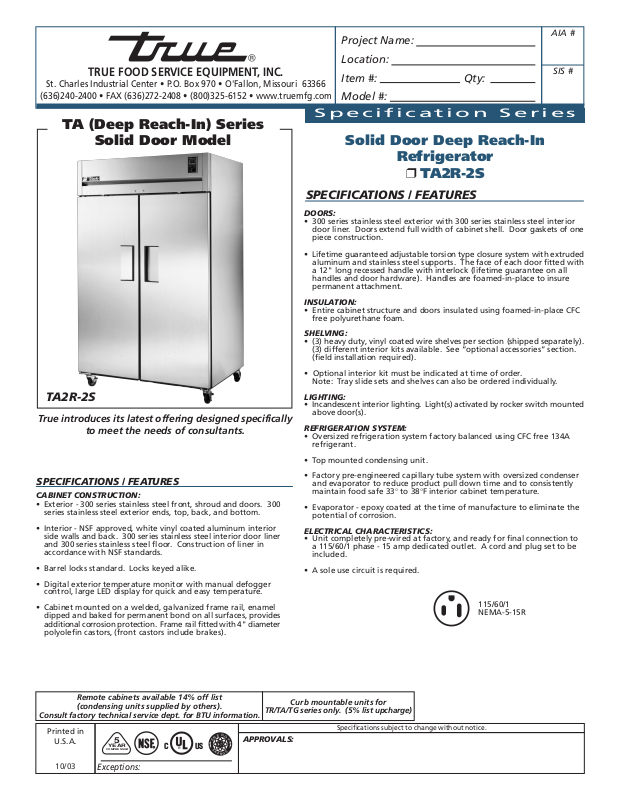

True TA2R-2S User Manual
TRUE FOOD SERVICE EQUIPMENT, INC.
St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366
(636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
Specification Series
TA (Deep Reach-In) Series
Solid Door Model
SPECIFICATIONS / FEATURES
DOORS:
• 300 series stainless steel exterior with 300 series stainless steel interior
door liner. Doors extend full width of cabinet shell. Door gaskets of one
piece construction.
• Lifetime guaranteed adjustable torsion type closure system with extruded
aluminum and stainless steel supports. The face of each door fitted with
a 12" long recessed handle with interlock (lifetime guarantee on all
handles and door hardware). Handles are foamed-in-place to insure
permanent attachment.
INSULATION:
• Entire cabinet structure and doors insulated using foamed-in-place CFC
free polyurethane foam.
SHELVING:
• (3) heavy duty, vinyl coated wire shelves per section (shipped separately).
(3) different interior kits available. See “optional accessories” section.
(field installation required).
• Optional interior kit must be indicated at time of order.
Note: Tray slide sets and shelves can also be ordered individually.
TA2R-2S
True introduces its latest offering designed specifically
to meet the needs of consultants.
SPECIFICATIONS / FEATURES
CABINET CONSTRUCTION:
• Exterior - 300 series stainless steel front, shroud and doors. 300
series stainless steel exterior ends, top, back, and bottom.
• Interior - NSF approved, white vinyl coated aluminum interior
side walls and back. 300 series stainless steel interior door liner
and 300 series stainless steel floor. Construction of liner in
accordance with NSF standards.
• Barrel locks standard. Locks keyed alike.
• Digital exterior temperature monitor with manual defogger
control, large LED display for quick and easy temperature.
• Cabinet mounted on a welded, galvanized frame rail, enamel
dipped and baked for permanent bond on all surfaces, provides
additional corrosion protection. Frame rail fitted with 4" diameter
polyolefin castors, (front castors include brakes).
LIGHTING:
• Incandescent interior lighting. Light(s) activated by rocker switch mounted
above door(s).
REFRIGERATION SYSTEM:
• Oversized refrigeration system factory balanced using CFC free 134A
refrigerant.
• Top mounted condensing unit.
• Factory pre-engineered capillary tube system with oversized condenser
and evaporator to reduce product pull down time and to consistently
maintain food safe 33° to 38°F interior cabinet temperature.
• Evaporator - epoxy coated at the time of manufacture to eliminate the
potential of corrosion.
ELECTRICAL CHARACTERISTICS:
• Unit completely pre-wired at factory, and ready for final connection to
a 115/60/1 phase - 15 amp dedicated outlet. A cord and plug set to be
included.
• A sole use circuit is required.
Project Name:
Location:
Item #: Qty:
Model #:
Solid Door Deep Reach-In
Refrigerator
❒ TA2R-2S
115/60/1
NEMA-5-15R
AIA #
SIS #
Remote cabinets available 14% off list
(condensing units supplied by others).
Consult factory technical service dept. for BTU information.
Printed in
U.S.A.
10/03
5
YEAR
COMPRESSOR
Exceptions:
R
C US
®
R
E
G
N
Y
E
APPROVALS:
S
S
A
S
V
I
G
N
Curb mountable units for
TR/TA/TG series only. (5% list upcharge)
Specifications subject to change without notice.
63
TA-Series: Deep Reach-In Refrigerator (solid door)
35
3
51
/
8
"
12
®
9
/
16
"
L - 131 cm
D - 89 cm
H - 199 cm
Door
3
/
8
"
77"
83
1
/
4
Swing - 61 cm
34
23
3
/
4
"
3
58
/
8
"
5
/
8
"
5"
1
1
/
4
"
Rough-In Data
Dimensions Cord
Capacity (inches) NEMA Length Crated
Model Doors (Cu. Ft) L D H* HP Volts PH Amps Config. (feet) Weight
TA2R-2S 2 56 51 3/8 34 3/4 78 1/4 1/2 115 1 10.0 5-15 9 650
* Height does not include 5” for castors or 6” for optional legs.
Specifications subject to change without notice.
Standard Features ____________________________________________________________________________________________
• Exterior - 300 series stainless steel exterior
front, sides, top, bottom and back (the
finest stainless available).
• Interior - NSF approved, white vinyl coated
aluminum sides. 300 series stainless floor
and door liner.
• Oversized and balanced, environmentally
friendly 134A refrigeration system - holds
food safe 33°F to 38°F.
• 300 series stainless steel doors with
recessed handles (lifetime guaranteed).
• Door locks standard.
• Exterior mounted digital electronic
thermometer with manual defogger.
• Incandescent interior lighting.
• Wide door openings.
• (3) heavy duty, vinyl coated shelves per
section (shipped separately) (3) different
interior kits available. Kit selection must
be indicated at time of order.
(field installation required).
• Magnetic door gaskets.
• Glass condensate pan to prevent
electrolysis.
• Epoxy coated evaporator.
• 4" diameter swivel castors standard
equipment - locking castors provided for
front set.
• Hot gas condensate for energy efficiency.
• Positive seal self-closing doors with factory
tested (over 1,000,000 times) lifetime
guaranteed door hinges and torsion type
closure system.
• Foamed-in-place polyurethane high
density cell insulation (CFC free).
• Top mounted unit positioned out of food
zone to maximize storage capacity.
• Self-contained system.
• 1 year parts & labor warranty (USA).
• 5 year compressor warranty.
Optional Accessories ______________
❒ 6" stainless steel legs.
❒ Seismic/Flanged legs.
❒ Kit #1 (9 sets of #1 type tray slides).
❒ Kit #2 (rod type 1 set covers 1/2 section).
❒ Kit #3 (6 sets of universal type tray slides).
❒ Kit #4 (3 chrome shelves and shelf supports)
❒ Stainless steel (electro polished) shelves.
❒ Chrome shelves.
❒ Metal handle (solid doors only).
❒ Cam lift hinge (solid door models only).
❒ Electronic temperature control.
❒ Universal pan slides.
❒ #1 pan slides.
❒ #2 or rod style pan slides.
❒ Curb mountable units.
❒ Export units available - consult factory.
❒ Correctional facility options - consult factory.
❒ Remote cabinets available (contact factory
technical services for BTU information).
KCL
Model Front Right Plan 3D
TA2R-2S TFQY54E TFQY54S TFQY54P TFQY543
YEAR
COMPRESSOR
R
E
G
N
Y
5
R
C US
E
®
S
S
A
S
V
I
G
N
TRUE FOOD SERVICE EQUIPMENT
