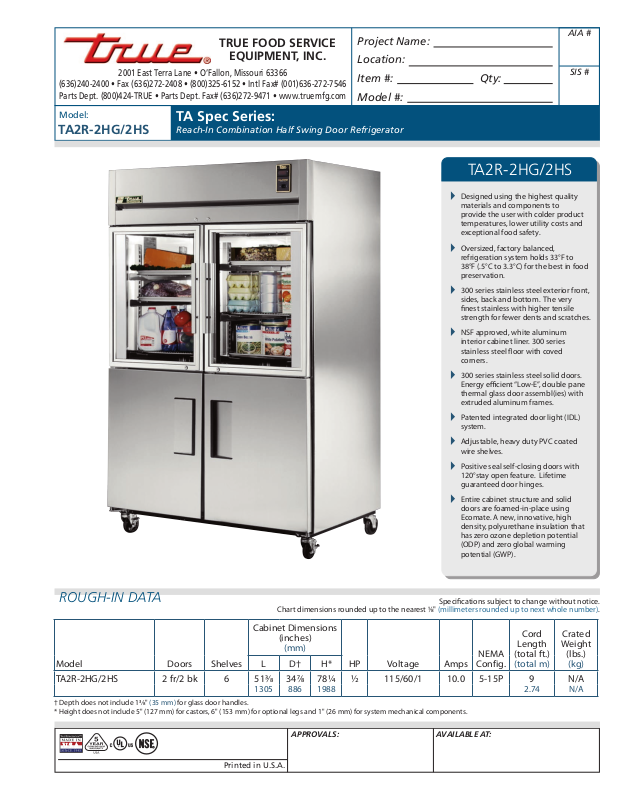

True TA2R-2HG User Manual

TRUE FOOD SERVICE
2001 East Terra Lane • O’Fallon, Missouri 63366 (636)240-2400 • Fax (636)272-2408 • (800)325-6152 • Intl Fax# (001)636-272-7546 Parts Dept. (800)424-TRUE • Parts Dept. Fax# (636)272-9471 • www.truemfg.com
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Model:
TA2R-2HG/2HS
TA Spec Series:
Reach-In Combination Half Swing Door Refrigerator
TA2R-2HG/2HS
Designed using the highest quality
materials and components to provide the user with colder product temperatures, lower utility costs and exceptional food safety.
Oversized, factory balanced,
refrigeration system holds 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
300 series stainless steel exterior front,
sides, back and bottom. The very nest stainless with higher tensile strength for fewer dents and scratches.
NSF approved, white aluminum
interior cabinet liner. 300 series stainless steel oor with coved corners.
300 series stainless steel solid doors.
Energy ecient “Low-E”, double pane thermal glass door assembl(ies) with extruded aluminum frames.
Patented integrated door light (IDL)
system.
Adjustable, heavy duty PVC coated
wire shelves.
Positive seal self-closing doors with
120°stay open feature. Lifetime guaranteed door hinges.
Entire cabinet structure and solid
doors are foamed-in-place using Ecomate. A new, innovative, high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
Rough-In Data
Model Doors Shelves
Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).
Cabinet Dimensions
(inches)
(mm)
HP Voltage Amps
Specications subject to change without notice.
NEMA
Config.
Cord
Length (total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)L D† H*
TA2R-2HG/2HS 2 fr/2 bk 6 51⁄ 34⁄ 78¼ ½ 115/60/1 10.0 5-15P 9 N/A
1305 886 1988 2.74 N/A
† Depth does not include 1⁄" (35 mm) for glass door handles. * Height does not include 5" (127 mm) for castors, 6" (153 mm) for optional legs and 1" (26 mm) for system mechanical components.
ApprovAls: AvAilAble At:
Printed in U.S.A.
Model:
TA2R-2HG/2HS
TA Spec Series:
Reach-In Combination Half Swing Door Refrigerator
StanDaRD FeatuReS
DESIGN
True’s combination door reach-in’s are designed
•
with enduring quality that protects your long term investment. Designed using the highest quality materials and
•
components to provide the user with colder product temperatures, lower utility costs and exceptional food safety.
REFRIGERATION SYSTEM
Factory engineered, self-contained, capillary tube
•
system using environmentally friendly (CFC free) 134A refrigerant. Extra large evaporator coil balanced with higher
•
horsepower compressor and large condenser maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation. Sealed, cast iron, self-lubricating evaporator fan
•
motor(s) and larger fan blades give True reach-in’s a more ecient low velocity, high volume airow design. This unique design ensures faster temperature recovery and shorter run times in the busiest of food service environments. Top mounted refrigeration system with evaporator
•
positioned out of food zone to maximize capacity. Hot gas condensate for energy eciency.
•
CABINET CONSTRUCTION
Exterior - 300 series stainless steel solid doors, front,
•
sides, back and bottom. Interior - NSF approved white aluminum side walls
•
and back liner. 300 series stainless steel oor with coved corners. Insulation - entire cabinet structure and solid doors
•
are foamed-in-place using Ecomate. A new, innovative, high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP). Welded, heavy duty steel frame rail, black powder
•
coated for corrosion protection. Frame rail tted with 4" (102 mm) diameter stem
•
castors - locks provided on front set.
DOORS
Solid half doors - 300 series stainless steel exterior and
•
liners. Glass half doors - “Low-E”, double pane thermal insulated glass assemblies with extruded aluminum frames. Doors open within cabinet dimension. Door locks standard.
•
Each solid door tted with 12" (305 mm) long, lifetime
•
guaranteed recessed handle. Each glass door tted with 15" (381 mm) long extruded aluminum handle. Positive seal self-closing doors with 120°stay open
•
feature. Lifetime guaranteed door hinges. Magnetic door gaskets of one piece construction,
•
removable without tools for ease of cleaning.
SHELVING
Six (6) adjustable, heavy duty PVC coated wire shelves
•
23½" x 27¾" (597 mm x 705 mm). Four (4) shelf supports included per shelf. Shelves adjustable on 6" (153 mm) increments. Field installation required. Four (4) dierent interior kits available (see Kit
•
Options). Pilasters and tray slides require eld installation.
LIGHTING
Fluorescent interior lighting. Each glass half door
•
utilizes full-length, patented, integrated door light (IDL) system. Safety shielded.
MODEL FEATURES
Exterior digital temperature display, available with
•
either°F or°C . Evaporator is epoxy coated to eliminate the potential
•
of corrosion. NSF-7 compliant for open food product.
•
ELECTRICAL
Unit completely pre-wired at factory and ready
•
for nal connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
6" (153 mm) standard legs. 6" (153 mm) seismic/anged legs. 6" (153 mm) stainless steel legs. Stainless steel rail skirt for use with legs (eld installed). Solid door metal door handles (factory installed). Additional shelves. Electronic temperature control (factory installed). Curb mountable units. Remote cabinets (condensing unit supplied by others; system comes standard with 404A expansion valve and requires R404A refrigerant). Consult factory technical service department for BTU information. All remote units must be hard wired during installation. Kit #1: Nine (9) sets of #1 type tray slides and pilasters (eld installed), bottom support of one (1) 18"L x 26"D (458 mm x 661 mm) pan or two (2) 14"L x 18"D (356 mm x 458 mm) pans. Kit #2: One (1) set half-section #2 steel rod tray slides and pilasters (eld installed), rim support of one (1) 18"L x 26"D (458 mm x 661 mm) pan. Kit #3: Six (6) sets of universal type tray slides and pilasters (eld installed), bottom support of one (1) 18"L x 26"D (458 mm x 661 mm) pan, two (2) 14"L x 18"D (356 mm x 458 mm) pans or two (2) 12"L x 20"D (305 mm x 508 mm) pans. Kit #4: Three (3) chrome shelves 23 ½"L x 27¾"D (597 mm x 705 mm). Four (4) shelf supports included per shelf (eld installed); adjustable on 6" (153 mm) increments. Optional wall mounted shelf support pilasters (eld installed) with four (4) shelf clips per shelf available; adjustable on½" (13 mm) increments (must order at time of cabinet order). Additional kit option components available individually.
Plan VIew
CUBIC FEET
* Based on ANSI/AHAM HRF-1-2004
One year warranty on all parts
and labor and an additional 4 year warranty on compressor.
56
WARRANTY
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
KCL
Model Elevation Right Plan 3D Back
TA2R-2HG/2HS TFQX57E TFQX57S TFQY99P TFQX573
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • O’Fallon, Missouri 63366 • (636)240-2400 • Fax (636)272-2408 • (800)325-6152 • Intl. Fax# (001)636-272-7546 • www.truemfg.com
