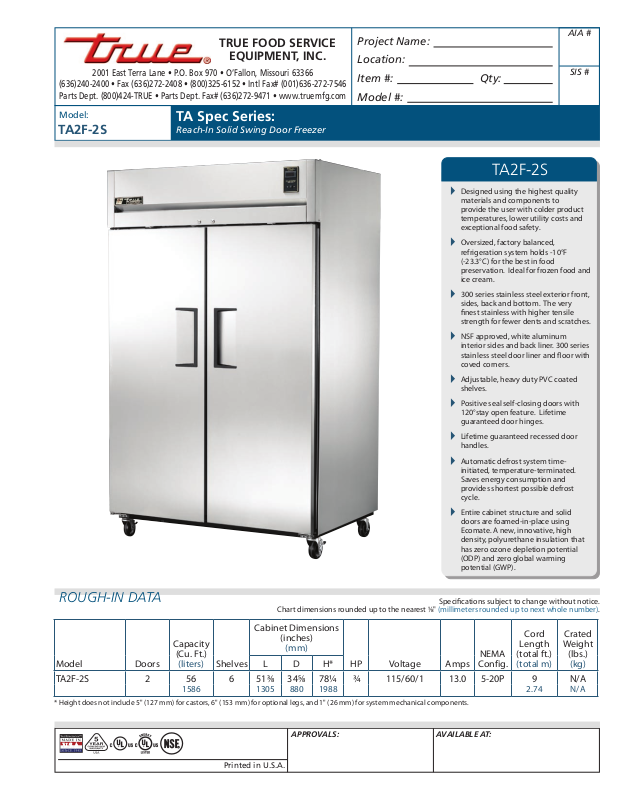

True TA2F-2S User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TA2F-2S

TA Spec Series:

Reach-In Solid Swing Door Freezer

TA2F-2S

Designed using the highest quality



materials and components to
provide the user with colder product
temperatures, lower utility costs and
exceptional food safety.

Oversized, factory balanced,



refrigeration system holds -10°F
(-23.3°C) for the best in food
preservation. Ideal for frozen food and
ice cream.

300 series stainless steel exterior front,



sides, back and bottom. The very
nest stainless with higher tensile
strength for fewer dents and scratches.

NSF approved, white aluminum



interior sides and back liner. 300 series
stainless steel door liner and oor with
coved corners.

Adjustable, heavy duty PVC coated



shelves.

Positive seal self-closing doors with



120°stay open feature. Lifetime
guaranteed door hinges.

Lifetime guaranteed recessed door



handles.

Automatic defrost system time-



initiated, temperature-terminated.
Saves energy consumption and
provides shortest possible defrost
cycle.

Entire cabinet structure and solid



doors are foamed-in-place using
Ecomate. A new, innovative, high
density, polyurethane insulation that
has zero ozone depletion potential
(ODP) and zero global warming
potential (GWP).

Rough-In Data

Model Doors

Capacity

(Cu. Ft.)

(liters) Shelves

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)L D H*

TA2F-2S 2 56 6 51⁄ 34⁄ 78¼ ¾ 115/60/1 13.0 5-20P 9 N/A

1586 1305 880 1988 2.74 N/A

* Height does not include 5" (127 mm) for castors, 6" (153 mm) for optional legs, and 1" (26 mm) for system mechanical components.

ApprovAls: AvAilAble At:

Printed in U.S.A.

Model:

TA2F-2S

TA Spec Series:

Reach-In Solid Swing Door Freezer

StanDaRD FeatuReS

DESIGN

True’s solid door reach-in’s are designed with enduring

•

quality that protects your long term investment.
Designed using the highest quality materials and

•

components to provide the user with colder product
temperatures, lower utility costs and exceptional food
safety.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary tube

•

system using environmentally friendly (CFC free) 404A
refrigerant.
Extra large evaporator coil balanced with higher

•

horsepower compressor and large condenser
maintains -10°F (-23.3°C) cabinet temperature. Ideal
for both frozen foods and ice cream.
Sealed, cast iron, self-lubricating evaporator fan

•

motor(s) and larger fan blades give True reach-in’s
a more ecient low velocity, high volume airow
design. This unique design ensures faster temperature
recovery and shorter run times in the busiest of
foodservice environments.
Top mounted refrigeration system with evaporator

•

positioned out of food zone to maximize capacity.
Automatic defrost system time-initiated, temperature-

•

terminated. Saves energy consumption and provides
shortest possible defrost cycle.
Automatic evaporator fan motor delay during defrost

•

cycle.

CABINET CONSTRUCTION

Exterior - 300 series stainless steel doors, front, sides,

•

back and bottom.
Interior - NSF approved white aluminum side walls

•

and back liner. 300 series stainless oor with coved
corners.
Insulation - entire cabinet structure and solid doors

•

are foamed-in-place using Ecomate. A new, innovative,
high density, polyurethane insulation that has zero
ozone depletion potential (ODP) and zero global
warming potential (GWP).
Welded, heavy duty steel frame rail, black powder

•

coated for corrosion protection.
Frame rail tted with 4" (102 mm) diameter stem

•

castors - locks provided on front set.

DOORS

300 series stainless steel exterior and liners. Doors

•

open within cabinet dimension.
Door locks standard.

•

Lifetime guaranteed recessed door handles. Each

•

door tted with 12" (305 mm) long recessed handle
that is foamed-in-place with a sheet metal interlock to
ensure permanent attachment.
Positive seal self-closing doors with 120°stay open

•

feature. Lifetime guaranteed door hinges.
Magnetic door gaskets of one piece construction,

•

removable without tools for ease of cleaning.

SHELVING

Six (6) adjustable, heavy duty PVC coated wire shelves

•

23½" x 27¾" (597 mm x 705 mm). Four (4) shelf
supports included per shelf. Shelves adjustable on 6"
(153 mm) increments.
Four (4) dierent interior kits available (see Kit

•

Options). Pilasters and tray slides require eld
installation.

LIGHTING

Incandescent interior lighting - lights activated by

•

rocker switch mounted above doors, safety shielded.

MODEL FEATURES

Exterior digital temperature display, available with

•

either°F or°C .
Evaporator epoxy coated to eliminate the potential of

•

corrosion.
Backguard improves airow.

•

Minimum wattage heater in cabinet frame and door.

•

NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and ready

•

for nal connection to a 115/60/1 phase, 20 amp
dedicated outlet. Cord and plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

6" (153 mm) standard legs. ❑
6" (153 mm) seismic/anged legs. ❑
6" (153 mm) stainless steel legs. ❑
Stainless steel rail skirt for use with legs (eld ❑
installed).
Metal door handles (factory installed). ❑
Novelty baskets. ❑
Additional shelves. ❑
Electronic temperature control (factory installed). ❑
Correctional facilities options. ❑
Curb mountable units. ❑
Remote cabinets (condensing unit supplied by others; ❑
system comes standard with 404A expansion valve
and requires R404A refrigerant). Consult factory
technical service department for BTU information. All
remote units must be hard wired during installation.
Kit #1: Nine (9) sets of #1 type tray slides and pilasters ❑
(eld installed), bottom support of one (1) 18"L x 26"D
(458 mm x 661 mm) pan or two (2) 14"L x 18"D (356
mm x 458 mm) pans.
Kit #2: One (1) set half-section #2 steel rod tray slides ❑
and pilasters (eld installed), rim support of one (1)
18"L x 26"D (458 mm x 661 mm) pan.
Kit #3: Six (6) sets of universal type tray slides and ❑
pilasters (eld installed), bottom support of one (1)
18"L x 26"D (458 mm x 661 mm) pan, two (2) 14"L x
18"D (356 mm x 458 mm) pans or two (2) 12"L x 20"D
(305 mm x 508 mm) pans.
Kit #4: Three (3) chrome shelves 23 ❑ ½"L x 27¾"D (597
mm x 705 mm). Four (4) shelf supports included
per shelf (eld installed); adjustable on 6" (153 mm)
increments. Optional wall mounted shelf support
pilasters (eld installed) with four (4) shelf clips per
shelf available; adjustable on½" (13 mm) increments
(must order at time of cabinet order).
Additional kit option components available ❑
individually.

Plan VIew

One year warranty on all parts

WARRANTY

and labor and an additional 4
year warranty on compressor.

(U.S.A. only)

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

TRUE FOOD SERVICE EQUIPMENT

KCL

Model Elevation Right Plan 3D Back

TA2F-2S TFQY54E TFQY54S TFQY54P TFQY543
