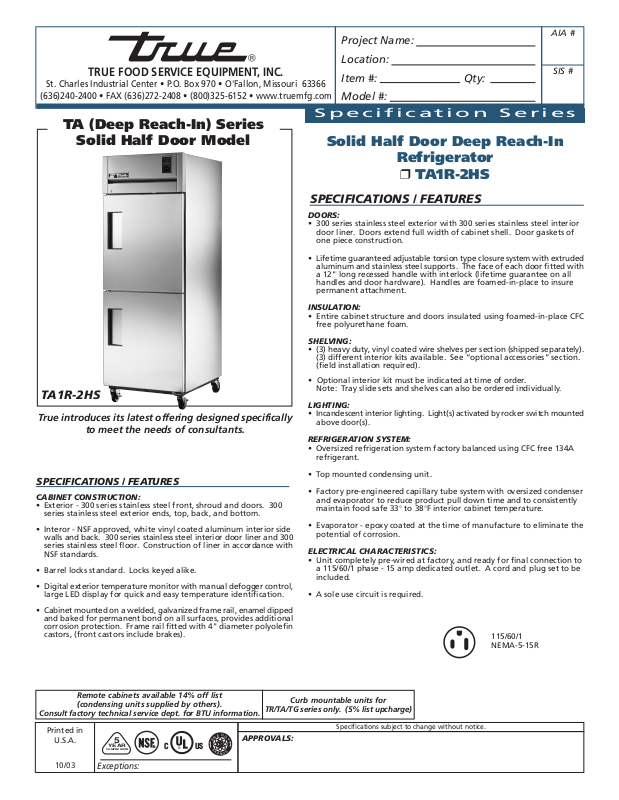

True TA1R-2HS User Manual
TRUE FOOD SERVICE EQUIPMENT, INC.
St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366
(636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
Specification Series
TA (Deep Reach-In) Series
Solid Half Door Model
SPECIFICATIONS / FEATURES
DOORS:
• 300 series stainless steel exterior with 300 series stainless steel interior
door liner. Doors extend full width of cabinet shell. Door gaskets of
one piece construction.
• Lifetime guaranteed adjustable torsion type closure system with extruded
aluminum and stainless steel supports. The face of each door fitted with
a 12" long recessed handle with interlock (lifetime guarantee on all
handles and door hardware). Handles are foamed-in-place to insure
permanent attachment.
INSULATION:
• Entire cabinet structure and doors insulated using foamed-in-place CFC
free polyurethane foam.
SHELVING:
• (3) heavy duty, vinyl coated wire shelves per section (shipped separately).
(3) different interior kits available. See “optional accessories” section.
(field installation required).
• Optional interior kit must be indicated at time of order.
TA1R-2HS
True introduces its latest offering designed specifically
to meet the needs of consultants.
Note: Tray slide sets and shelves can also be ordered individually.
LIGHTING:
• Incandescent interior lighting. Light(s) activated by rocker switch mounted
above door(s).
REFRIGERATION SYSTEM:
• Oversized refrigeration system factory balanced using CFC free 134A
refrigerant.
Project Name:
AIA #
Location:
Item #: Qty:
SIS #
Model #:
Solid Half Door Deep Reach-In
Refrigerator
❒ TA1R-2HS
SPECIFICATIONS / FEATURES
CABINET CONSTRUCTION:
• Exterior - 300 series stainless steel front, shroud and doors. 300
series stainless steel exterior ends, top, back, and bottom.
• Interor - NSF approved, white vinyl coated aluminum interior side
walls and back. 300 series stainless steel interior door liner and 300
series stainless steel floor. Construction of liner in accordance with
NSF standards.
• Barrel locks standard. Locks keyed alike.
• Digital exterior temperature monitor with manual defogger control,
large LED display for quick and easy temperature identification.
• Cabinet mounted on a welded, galvanized frame rail, enamel dipped
and baked for permanent bond on all surfaces, provides additional
corrosion protection. Frame rail fitted with 4" diameter polyolefin
castors, (front castors include brakes).
Remote cabinets available 14% off list
Consult factory technical service dept. for BTU information.
(condensing units supplied by others).
Printed in
U.S.A.
10/03
5
YEAR
COMPRESSOR
Exceptions:
R
C US
®
R
E
G
N
Y
E
S
S
A
S
V
I
G
N
TR/TA/TG series only. (5% list upcharge)
APPROVALS:
• Top mounted condensing unit.
• Factory pre-engineered capillary tube system with oversized condenser
and evaporator to reduce product pull down time and to consistently
maintain food safe 33° to 38°F interior cabinet temperature.
• Evaporator - epoxy coated at the time of manufacture to eliminate the
potential of corrosion.
ELECTRICAL CHARACTERISTICS:
• Unit completely pre-wired at factory, and ready for final connection to
a 115/60/1 phase - 15 amp dedicated outlet. A cord and plug set to be
included.
• A sole use circuit is required.
115/60/1
NEMA-5-15R
Curb mountable units for
Specifications subject to change without notice.
31
®
12
TA-Series: Deep Reach-In Refrigerator (solid half doors)
9
/
16
"
35
29"
L - 74 cm
"
D - 89 cm
H - 199 cm
Door
Swing - 68 cm
34
3
/
4
"
1
/
2
"
61
1
/
2
"
77"
1
83
/
4
31
1
/
2
"
26
3
/
4
"
5"
1
1
/
4
"
Rough-In Data
Dimensions Cord
Capacity (inches) NEMA Length Crated
Model Doors (Cu. Ft) L D H* HP Volts PH Amps Config. (feet) Weight
TA1R-2HS 2 31 29 34 3/4 78 1/4 1/3 115 1 8.5 5-15 9 390
* Height does not include 5” for castors or 6” for optional legs.
Standard Features____________________________________________________________________________________________
• Exterior - 300 series stainless steel exterior
front, sides, top, bottom and back (the
finest stainless available).
• Interior - NSF approved, white vinyl coated
aluminum sides. 300 series stainless floor
and door liner.
• Oversized and balanced, environmentally
friendly refrigeration system - holds food
safe 33°F to 38°F.
• 300 series stainless steel doors with recessed
handles (lifetime guaranteed).
• Door locks standard.
• Half-doors allow product segmentation for
easy access.
• Exterior mounted digital electronic
thermometer with manual defogger.
• (3) heavy duty, vinyl coated shelves per
section (shipped separately) (3) different
interior kits available. Kit selection must
be indicated at time of order.
(field installation required).
• Glass condensate pan to prevent
electrolysis.
• Wide door openings.
• Magnetic door gaskets.
• Epoxy coated evaporator.
• Incandescent interior lighting.
• Hot gas condensate for energy efficiency.
• Positive seal self-closing doors with factory
tested (over 1,000,000 times) lifetime
guaranteed door hinges and torsion type
closure system.
• 4" diameter swivel castors standard
equipment - locking castors provided for
front set.
• Environmentally friendly 134A refrigerant.
• Foamed-in-place polyurethane high density
cell insulation (CFC free).
• Top mounted unit positioned out of food
zone to maximize storage capacity.
• Self-contained system.
• 1 year parts & labor warranty (USA).
• 5 year compressor warranty (USA).
Specifications subject to change without notice.
Optional Accessories ______________
❒ 6" stainless steel legs.
❒ Seismic/Flanged legs.
❒ Kit #1 (9 sets of #1 type tray slides).
❒ Kit #2 (rod type 1 set covers 1/2 section).
❒ Kit #3 (6 sets of universal type tray slides).
❒ Kit #4 (3 chrome shelves and shelf supports)
❒ Stainless steel (electro polished) shelves.
❒ Chrome shelves.
❒ Metal handle (solid doors only).
❒ Cam lift hinge (solid door models only).
❒ Electronic temperature control.
❒ Universal pan slides.
❒ #1 pan slides.
❒ #2 or rod style pan slides.
❒ Curb mountable units.
❒ Export units available - consult factory.
❒ Correctional facility options - consult factory.
❒ Remote cabinets available (contact factory
technical services for BTU information).
KCL
Model Front Right Plan 3D
TA1R-2HS TFQX60E TFQX60S TFQX60P TFQX603
YEAR
COMPRESSOR
R
E
G
N
Y
5
R
C US
E
S
S
®
A
S
V
I
G
N
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366 • (636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
