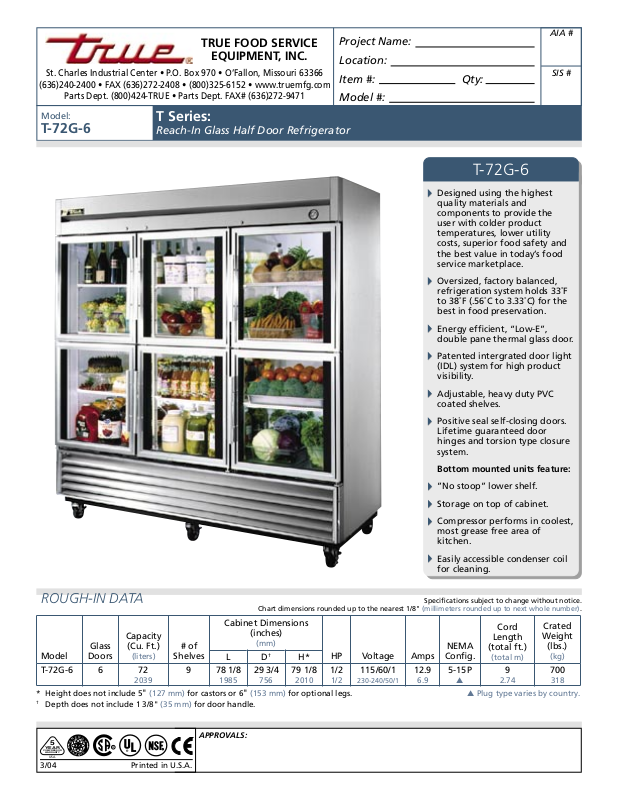

Model:

T-72G-6

T Series:

Reach-In Glass Half Door Refrigerator

T-72G-6

Designed using the highest
quality materials and
components to provide the
user with colder product
temperatures, lower utility
costs, superior food safety and
the best value in today’s food
service marketplace.

Oversized, factory balanced,
refrigeration system holds 33˚F
to 38˚F (.56˚C to 3.33˚C) for the
best in food preservation.

Energy efcient, “Low-E”,
double pane thermal glass door.

Patented intergrated door light
(IDL) system for high product
visibility.

Adjustable, heavy duty PVC
coated shelves.

Positive seal self-closing doors.
Lifetime guaranteed door
hinges and torsion type closure
system.

Bottom mounted units feature:

”No stoop” lower shelf.

Storage on top of cabinet.

Compressor performs in coolest,
most grease free area of
kitchen.

Easily accessible condenser coil
for cleaning.

ROUGH-IN DATA

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

Capacity

Glass

Model

Doors

T-72G-6 6 72

* Height does not include 5" (127 mm) for castors or 6" (153 mm) for optional legs.  Plug type varies by country.

†

Depth does not include 1 3/8" (35 mm) for door handle.

(Cu. Ft.)

(liters)

2039

# of

Shelves

9 78 1/8

1985

(inches)

(mm)

L D

29 3/4

756

†

H*

79 1/8

2010

HP Voltage Amps
1/2

115/60/1

1/2

230-240/50/1

Specications subject to change without notice.

Crated

Weight

(lbs.)

(kg)

700

318

12.9

6.9

NEMA

Cong.

5-15P



Cord

Length

(total ft.)

(total m)

9

2.74

YEAR

COMPRESSOR

WARRANTY

3/04

R

E

G

N

Y

E

5

S

S

A

S

V

I

G

N

USA

Printed in U.S.A.

R

APPROVALS:

Model:

T-72G-6

T Series:

Reach-In Glass Half Door Refrigerator

STANDARD FEATURES

DESIGN

• True’s glass door reach-in’s are designed
with enduring quality that protects your
long term investment.

• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures, lower
utility costs, superior food safety and
the best value in today’s food service
marketplace.

REFRIGERATION SYSTEM

• Factory engineered self-contained, capillary
tube system using environmentally friendly
(CFC free) 134A refrigerant.

• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains 33˚F to 38˚F (.56˚C to

3.33˚C) for the best in food preservation.

• Sealed, cast iron, self-lubricating
evaporator fan motor and larger fan
blades give True reach-in’s a superior low
velocity, high volume airow design. This
unique design insures faster temperature
recovery and shorter run times in the
busiest of foodservice environments.

• Bottom mounted condensing unit
positioned for easy maintenance.
Compressor runs in coolest and most
grease free area of the kitchen. Allows for
storage area on top of unit.

CABINET CONSTRUCTION

• Exterior - 300 series stainless steel front
grill and shroud. Anodized quality
aluminum exterior ends and back.

• Interior - attractive, NSF approved, white

aluminum liner. 300 series stainless oor
with coved corners.

• Insulation - entire cabinet structure is
foamed-in-place using high density, CFC
free, polyurethane insulation.

• Cabinet mounted on a welded, heavy
duty galvanized frame rail. Rail dipped in
rust inhibiting enamel paint for corrosion
protection inside and out.

• Frame rail tted with 4" (102 mm)
diameter stem castors standard - locks
provided on front set.

DOORS

• “Low-E”, double pane thermal glass
assembly with extruded aluminum frames.
Door locks standard.

• Positive seal self-closing doors. Lifetime
guaranteed door hinges and torsion type
closure system.

• Each glass door is tted with a 15"
(381 mm) long extruded aluminum handle.

• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.

SHELVING

• Nine (9) adjustable, heavy duty PVC coated
wire shelves 24 1/8"L X 22 3/8"D
(613 mm x 569 mm). Four (4) chrome
plated shelf clips included per shelf.

• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on 1/2" (13 mm) increments.

LIGHTING

• Fluorescent interior lighting. Each glass
door utilizes full-length, patented,

integrated door light (IDL) system. Safety
shielded.

MODEL FEATURES

• Exterior mounted temperature monitor.

• Evaporator is epoxy coated to eliminate
the potential of corrosion.

ELECTRICAL

• Unit completely pre-wired at factory and
ready for nal connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord and
plug set included.

115/60/1
NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

 230 - 240V / 50 Hz.
 6" (153 mm) stainless steel or

seismic legs.

 Additional shelves.
 Half bun tray racks.
 Remote cabinets (condensing unit supplied

by others), consult factory technical service
dept. for BTU information.

PLAN VIEW

781/8"

(1985 mm)

791/16"

(2009 mm)

841/16"

(2136 mm)

FRONT VIEW TOP VIEW

One year warranty on all parts

& labor and an additional 4 year

WARRANTY

warranty on compressor.

(U.S.A. only)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

5"

(127 mm)

TRUE FOOD SERVICE EQUIPMENT

St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com

2923/32"

(755 mm)

13/8"

(35 mm)

KCL

5313/

16

"

(1367 mm)

245/16"

(618 mm)

Model Front Side Plan 3D

T-72G-6 TFGY03E TFGY03S TFGY04P TFGY033
