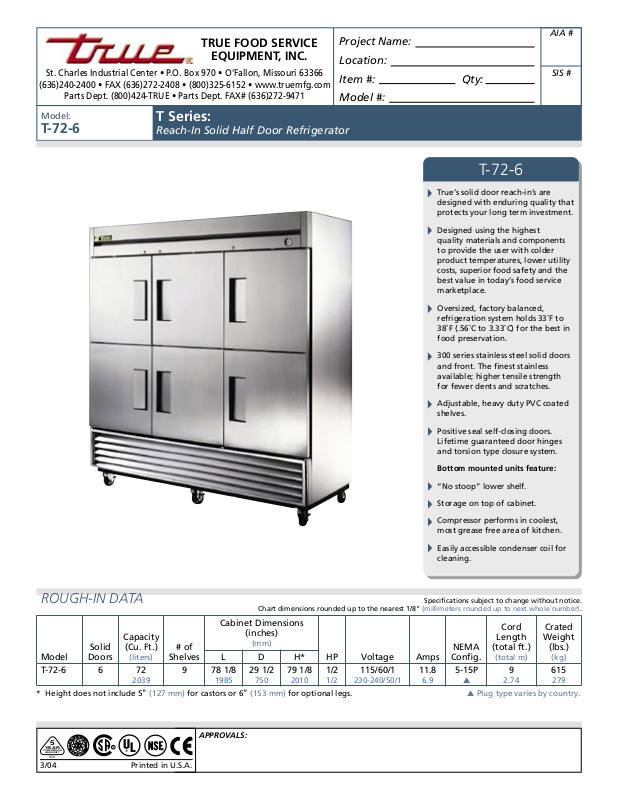

True T-72-6 User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366

[phone] • FAX [phone] • [phone] • www.truemfg.com

Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

T-72-6

T Series:

Reach-In Solid Half Door Refrigerator

T-72-6

True’s solid door reach-in’s are
designed with enduring quality that
protects your long term investment.

Designed using the highest
quality materials and components
to provide the user with colder
product temperatures, lower utility
costs, superior food safety and the
best value in today’s food service
marketplace.

Oversized, factory balanced,
refrigeration system holds 33˚F to
38˚F (.56˚C to 3.33˚C) for the best in
food preservation.

300 series stainless steel solid doors
and front. The nest stainless
available; higher tensile strength
for fewer dents and scratches.

Adjustable, heavy duty PVC coated
shelves.

Positive seal self-closing doors.
Lifetime guaranteed door hinges
and torsion type closure system.

Bottom mounted units feature:

“No stoop” lower shelf.

Storage on top of cabinet.

Compressor performs in coolest,
most grease free area of kitchen.

Easily accessible condenser coil for
cleaning.

ROUGH-IN DATA

Capacity

Solid

Model

Doors

T-72-6 6 72

(Cu. Ft.)

(liters)

2039

# of

Shelves

9 78 1/8

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

L D H*

29 1/2

1985

750

79 1/8

2010

HP Voltage Amps
1/2

1/2

115/60/1

230-240/50/1

Specications subject to change without notice.

11.8

6.9

NEMA

Cong.

5-15P



Cord

Length

(total ft.)

(total m)

9

2.74

Crated

Weight

(lbs.)

(kg)

615

279

* Height does not include 5" (127 mm) for castors or 6" (153 mm) for optional legs.  Plug type varies by country.

YEAR

COMPRESSOR

WARRANTY

3/04

R

E

G

N

Y

E

5

S

S

A

S

V

I

G

N

USA

R

APPROVALS:

Printed in U.S.A.

Model:

T-72-6

T Series:

Reach-In Solid Half Door Refrigerator

STANDARD FEATURES

DESIGN

• True’s commitment to using the highest
quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, lower utility costs, superior
food safety and the best value in today’s
food service marketplace.

REFRIGERATION SYSTEM

• Factory engineered self-contained, capillary
tube system using environmentally friendly
(CFC free) 134A refrigerant.

• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains 33˚F to 38˚F (.56˚C to

3.33˚C) for the best in food preservation.

• Sealed, cast iron, self-lubricating evaporator
fan motors and larger fan blades give True
reach-in’s a superior low velocity, high
volume airow design. This unique design
insures faster temperature recovery and
shorter run times in the busiest of food
service environments.

• Bottom mounted condensing unit positioned
for easy maintenance. Compressor runs in
coolest and most grease free area of the
kitchen. Allows for storage area on top of
unit.

CABINET CONSTRUCTION

• Exterior - 300 series stainless steel front grill
and shroud. Anodized quality aluminum
exterior ends and back.

• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless oor with
coved corners.

• Insulation - entire cabinet structure and solid
doors are foamed-in-place using high density,
CFC free, polyurethane insulation.

• Cabinet mounted on a welded, heavy
duty galvanized frame rail. Rail dipped in

rust inhibiting enamel paint for corrosion
protection inside and out.

• Frame rail tted with 4" (102 mm) diameter
stem castors standard - locks provided on
front set.

DOORS

• 300 series stainless steel exterior with white
aluminum door liner to match cabinet
interior. Doors extend full width of cabinet
shell. Door locks standard.

• Positive seal self-closing doors. Lifetime
guaranteed door hinges and torsion type
closure system.

• Lifetime guaranteed recessed door handles
standard. Each door tted with 12" (305
mm) long recessed handle that is foamed-in­place with a sheet metal interlock to insure
permanent attachment.

• Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.

SHELVING

• Nine (9) adjustable, heavy duty PVC coated
wire shelves 24 1/8"L x 22 3/8"D (613 mm x
569 mm). Four (4) chrome plated shelf clips
included per shelf.

• Shelf support pilasters made of same material
as cabinet interior; shelves are adjustable on
1/2" (13 mm) increments.

LIGHTING

• Incandescent interior lighting - safety
shielded. Lights activated by rocker switch
mounted above doors.

MODEL FEATURES

• Exterior mounted temperature monitor.

• Evaporator is epoxy coated to eliminate the
potential of corrosion.

ELECTRICAL

• Unit completely pre-wired at factory and
ready for nal connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord and

plug set included.

115/60/1
NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

 230 - 240V / 50 Hz.
 Three right or left hinges (no charge).
 6" (153 mm) stainless steel or

seismic legs.

 Additional shelves.
 Wine racks.
 Novelty baskets.


Half and full door bun tray racks

accommodates 18" x 26" (458 mm x 661 mm)
sheet pans.

 Remote cabinets (condensing unit supplied

by others), consult factory technical service
department for BTU information.

PLAN VIEW

781/8

"

(1985 mm)

291/2

"

(750 mm)

TOP VIEW

FRONT VIEW

One year warranty on all parts

& labor and an additional 4 year

WARRANTY

warranty on compressor.

(U.S.A. only)

791/16

"

(2009 mm)

841/16

"

(2136 mm)

5

"

(127 mm)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

KCL

Model Front Side Plan 3D

T-72-6 TFGY21E TFGY21S TFEY01P TFGY213

TRUE FOOD SERVICE EQUIPMENT

St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com

291/2

"

(750 mm)

2415/32

(622 mm)

5331/32

(1371 mm)

"

"
