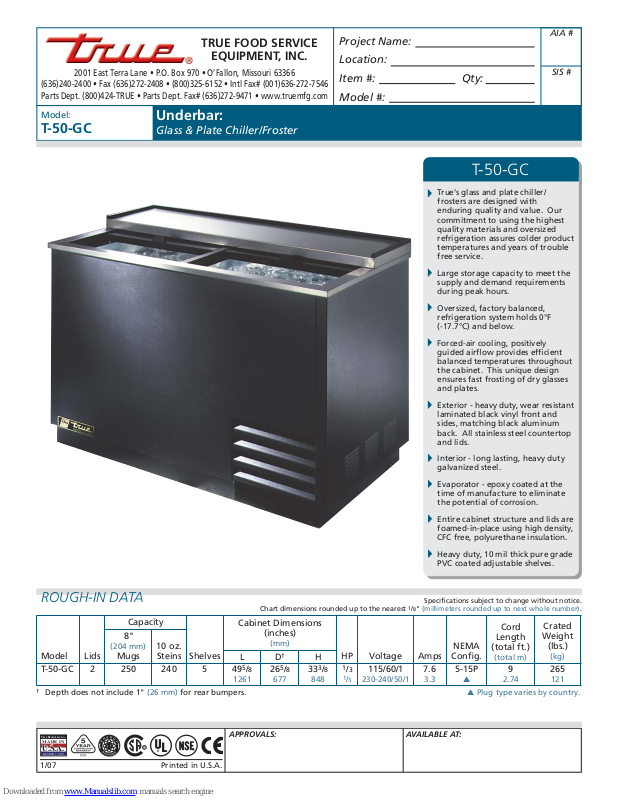

True T-50-GC Specifications

TRUE FOOD SERVICE

.S.A.

EQUIPMENT, INC.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

T-50-GC

Underbar:

Glass & Plate Chiller/Froster

T-50-GC

True’s glass and plate chiller/
frosters are designed with
enduring quality and value. Our
commitment to using the highest
quality materials and oversized
refrigeration assures colder product
temperatures and years of trouble
free service.

Large storage capacity to meet the
supply and demand requirements
during peak hours.

Oversized, factory balanced,
refrigeration system holds 0°F
(-17.7°C) and below.

Forced-air cooling, positively
guided airfl ow provides effi cient
balanced temperatures throughout
the cabinet. This unique design
ensures fast frosting of dry glasses
and plates.

Exterior - heavy duty, wear resistant
laminated black vinyl front and
sides, matching black aluminum
back. All stainless steel countertop
and lids.

Interior - long lasting, heavy duty
galvanized steel.

Evaporator - epoxy coated at the
time of manufacture to eliminate
the potential of corrosion.

Entire cabinet structure and lids are
foamed-in-place using high density,
CFC free, polyurethane insulation.

Heavy duty, 10 mil thick pure grade
PVC coated adjustable shelves.

ROUGH-IN DATA

Capacity

8"

(204 mm)

Model Lids

Mugs

T-50-GC 2 250 240 5 49

†

Depth does not include 1" (26 mm) for rear bumpers. ▲ Plug type varies by country.

T

RUE

R

EFRIGERATION

TM

MADE IN

U.S.A.

U.S.A.

SINCE 1945

1/07

10 oz.
Steins

Shelves

R

Printed in U.S.A.

Specifi cations subject to change without notice.

1

Chart dimensions rounded up to the nearest

/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

LD†H

5

/8

265/8

1261

APPROVALS: AVAILABLE AT:

677

333/8

848

HP Voltage Amps

1

/3

115/60/1

1

/3

230-240/50/1

NEMA

Confi g.

7.6

3.3

5-15P

▲

Cord

Length

(total ft.)

(total m)

9

2.74

Crated

Weight

(lbs.)

(kg)

265

121

Model:

T-50-GC

Underbar:

Glass & Plate Chiller/Froster

STANDARD FEATURES

DESIGN

• True’s glass and plate chiller/frosters
are designed with enduring quality
and value. Our commitment to using
the highest quality materials and
oversized refrigeration assures colder
product temperatures and years of
trouble free service.

REFRIGERATION SYSTEM

• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
404A refrigerant.

• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains
cabinet temperatures of 0°F (-17.7°C)
and below.

• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger
fan blades give True chiller/frosters
a more effi cient low velocity, high
volume airfl ow design. This unique
design ensures fast frosting of dry
glasses and plates.

• Automatic defrost system time­initiated, time-terminated.

• Condensing unit accessed from
behind front grill, slides out for easy
maintenance.

• Forced-air cooling, positively guided
airfl ow provides effi cient balanced
temperatures throughout the cabinet.

CABINET CONSTRUCTION

• Exterior - heavy duty, wear resistant
laminated black vinyl front and sides,
matching black aluminum back. All
stainless steel countertop and lids.

• Interior - long lasting, heavy duty
galvanized steel.

• Insulation - entire cabinet structure is
foamed-in-place using high density,
CFC free, polyurethane insulation.

• Welded, heavy duty galvanized base
rail dipped in rust inhibiting enamel
paint for corrosion protection inside
and out.

SHELVING

• Five (5) adjustable, heavy duty PVC
coated wire shelves 15

1

/8"L x 195/16"D
(385 mm x 491 mm). Split shelf design
allows for effective rotation of chilled
smallware, working with already
chilled plates and glasses on one side
while chilling dry product on other
side.

MODEL FEATURES

• Evaporator is epoxy coated to
eliminate the potential of corrosion.

• Listed under NSF-7 for the storage
and/or display of packaged or bottled
product.

ELECTRICAL

• Unit completely pre-wired at factory
and ready for fi nal connection to a
115/60/1 phase - 15 amp dedicated
outlet. Cord and plug set included.

115/60/1
NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❒ 230 - 240V / 50 Hz.
❒ 6

" (153 mm) standard legs.

❒ 6

" (153 mm) seismic/fl anged legs.

1

❒ 2

/2" (64 mm) diameter castors.

❒ 3

" (77 mm) diameter castors.

❒ Ratchet locks and handles. Requires

on per lid.

❒ Floor racks.
❒ Remote cabinets (condensing unit

supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant).
Consult factory technical service
department for BTU information.

PLAN VIEW

133/4"

(350 mm)

123/4"

23/4"

(70 mm)

279/16"

(701 mm)

31/16"

(78 mm)

One year warranty on all parts

& labor and an additional 4 year

WARRANTY

warranty on compressor.

(U.S.A. only)

495/8"

(1261 mm)

ELEVATION

333/8"

(848 mm)

47"

(1194 mm)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

RIGHT VIEW

TRUE FOOD SERVICE EQUIPMENT

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com

269/16"

(675 mm)

(324 mm)

KCL

1"

(26 mm)

279/16"

(701 mm)

203/4"

(528 mm)

123/4"

(324 mm)

87/8"

(226 mm)

PLAN VIEW

Model Elevation Right Plan 3D

T-50-GC TFLY01E TFLY01S TFLY01P TFLY013
